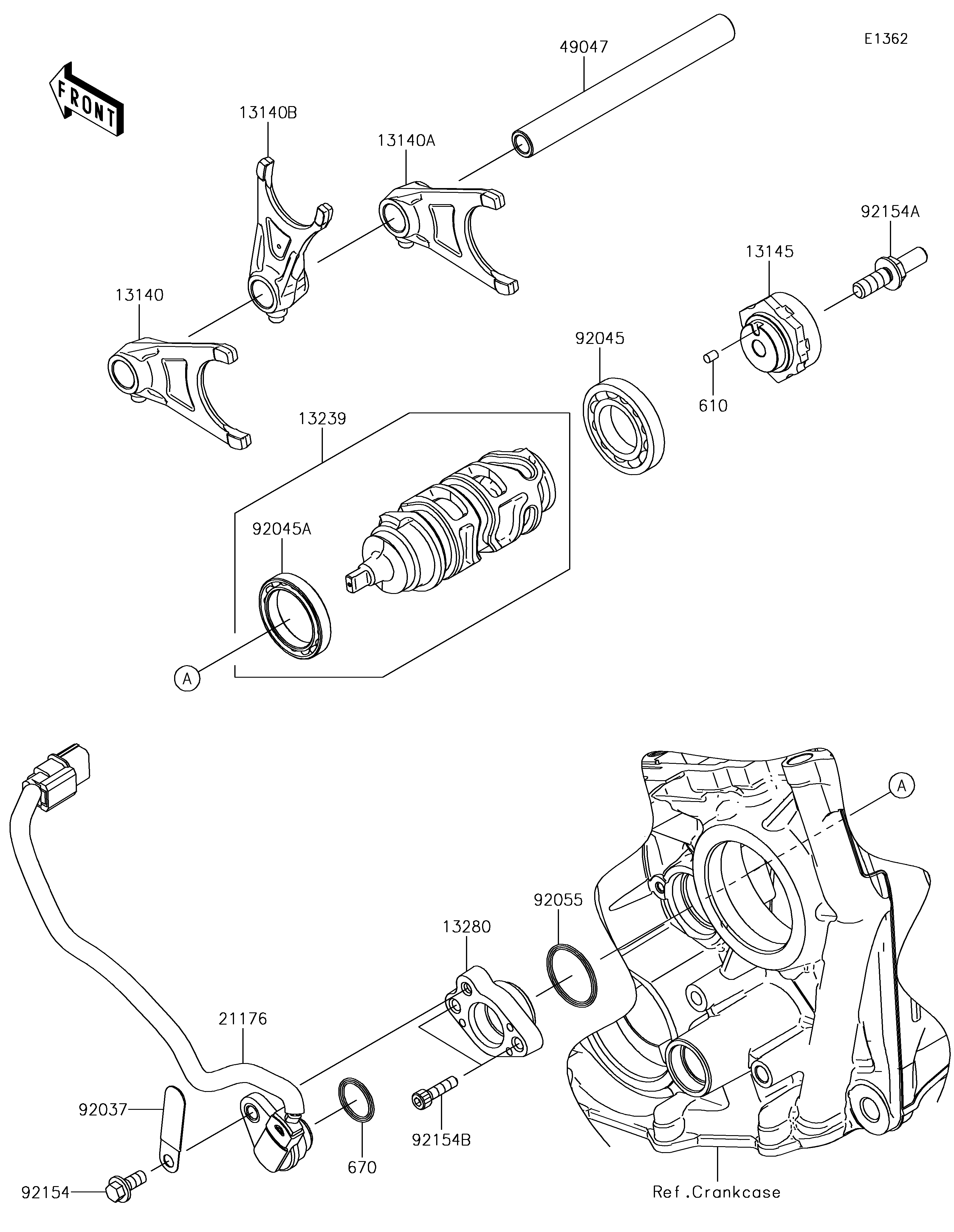

2018 NINJA® ZX-10R ABS - Gear Change Drum/Shift Fork(s)

13140
13140A
13140B
13145
13239
13280
21176
49047
610
670
92037
92045
92045A
92055
92154
92154A
92154B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-SHIFT,OUTPUT,LH 13140 13140-0064 1
FORK-SHIFT,OUTPUT,RH 13140A 13140-0065 1
FORK-SHIFT,INPUT,CNT 13140B 13140-0650 1
CAM-CHANGE DRUM 13145 13145-0051 1
DRUM-ASSY-CHANGE 13239 13239-0041 1
HOLDER,GEAR POSITION SENSOR 13280 13280-0846 1
SENSOR,GEAR POSITION 21176 21176-0820 1
ROD-SHIFT 49047 49047-0623 1
ROLLER,4X6 610 610A0406 1
O RING,18MM 670 670D2018 1
CLAMP,L=45 92037 92037-1539 1
BEARING-BALL,16005 92045 92045-1045 1
BEARING-BALL,6806 92045A 92045-1152 1
RING-O,27.7X2.4 92055 92055-091 1
BOLT,FLANGED,6X14 92154 92154-1797 1
BOLT 92154A 92154-1883 1
BOLT,SOCKET,5X20 92154B 92154-2084 2
