224
224
224
224
23037
23037
23037A
23037A
23048
23048
23048A
23048A
92069
92069
92069
92069
92172
92172
92172
92172
92200
92200
92200
92200
92200A
92200A
92200A
92200A

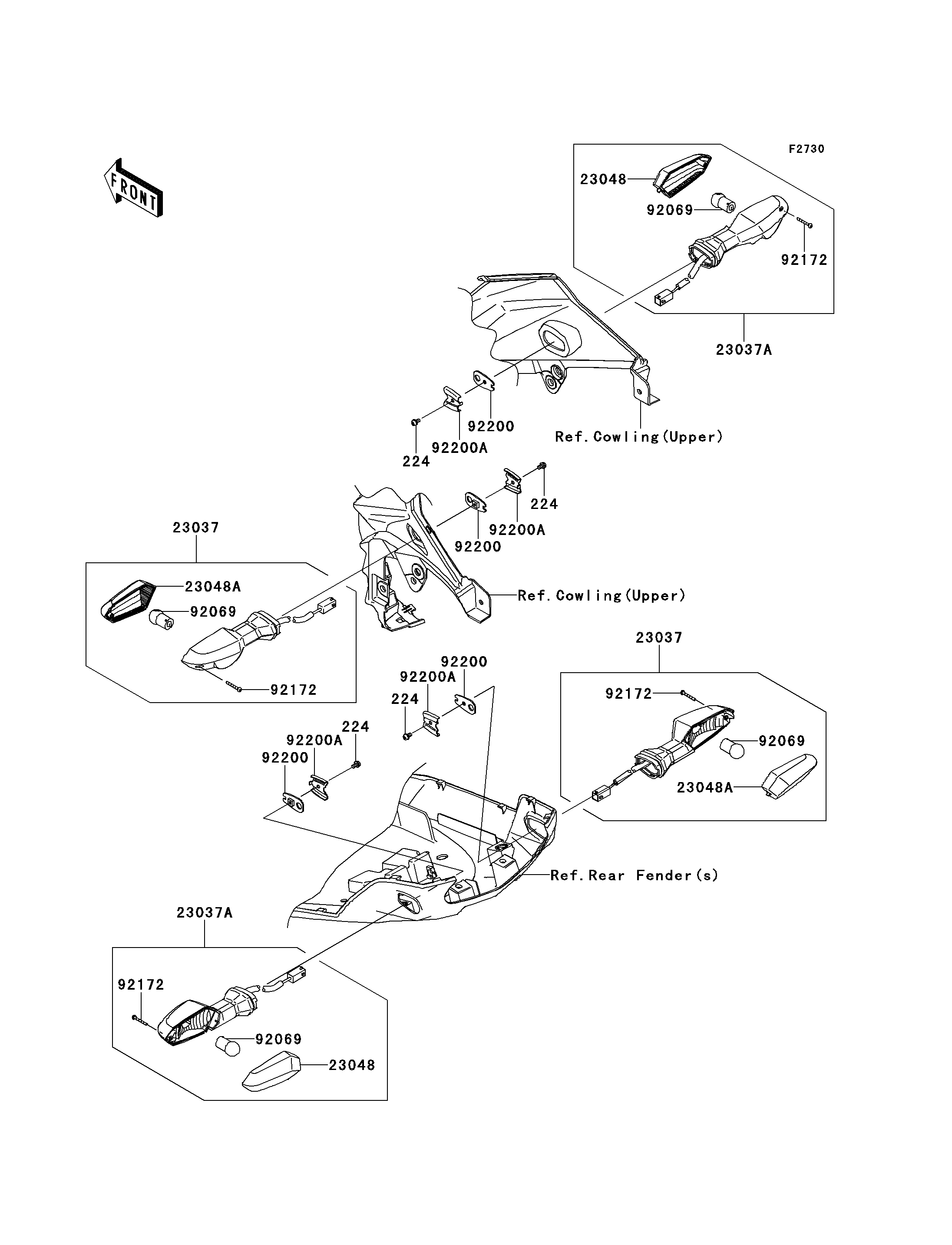

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WP-CROS,4X8 224 224AB0408 4
LAMP-ASSY-SIGNAL,FR LH&RR RH 23037 23037-0167 2
LAMP-ASSY-SIGNAL,FR RH&RR LH 23037A 23037-0168 2
LENS-SIGNAL LAMP,FR,RH&RR,LH 23048 23048-0014 2
LENS-SIGNAL LAMP,FR,LH&RR,RH 23048A 23048-0015 2
BULB,12V 10W 92069 92069-0024 4
SCREW,2.9X22 92172 92172-0395 4
WASHER,SIGNAL LAMP 92200 92200-0164 4
WASHER,SIGNAL LAMP 92200A 92200-0165 4
