610
13041
13168
13234
16085
92026
92026
92046
92046
92049
92151
92154
92161
92161
92161
92161

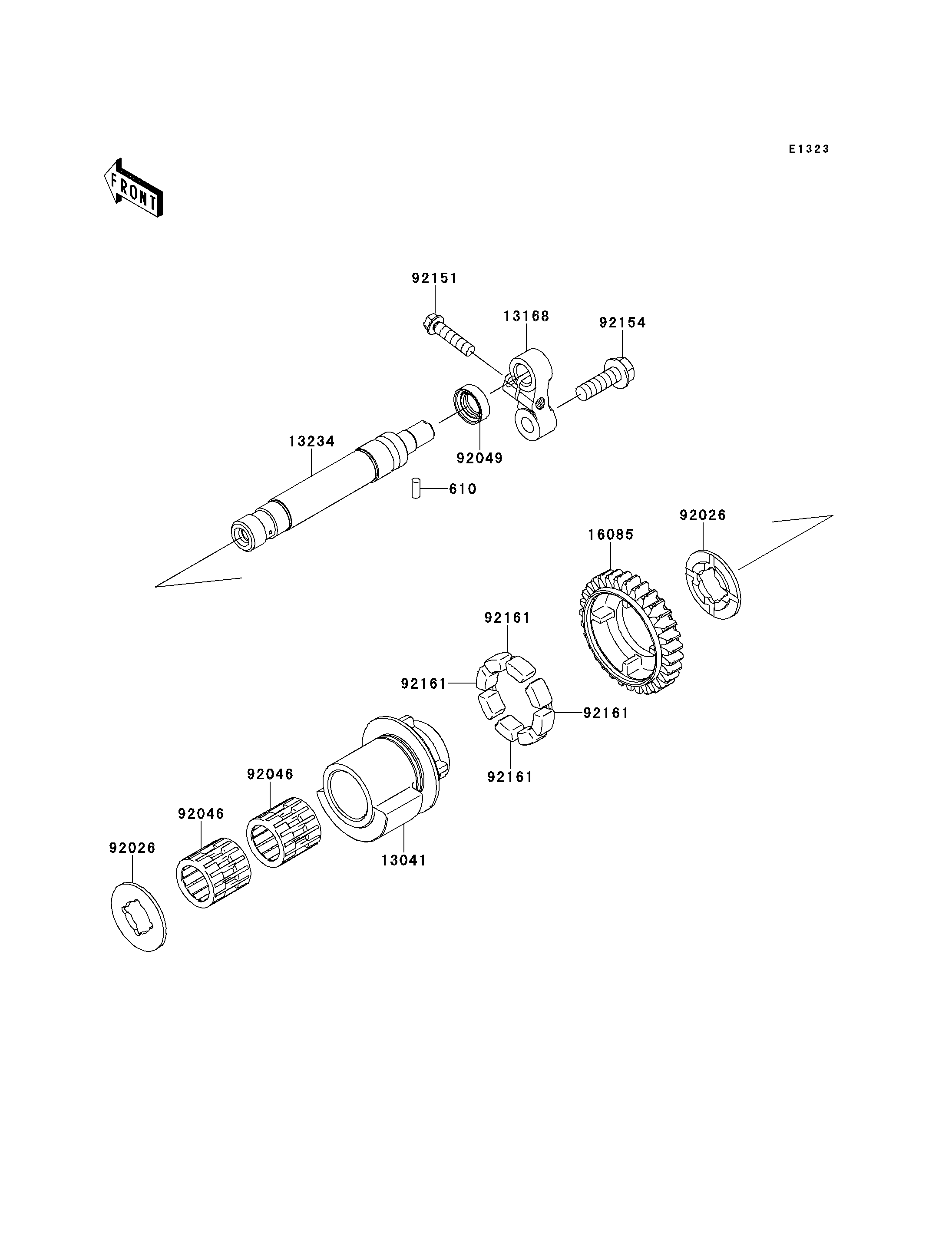

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROLLER,4X10 610 610A0410 1
BALANCER 13041 13041-0028 1
LEVER 13168 13168-0115 1
SHAFT-COMP 13234 13234-0038 1
GEAR,BALANCER,31T 16085 16085-0134 1
SPACER 92026 92026-0082 2
BEARING-NEEDLE 92046 92046-1266 2
SEAL-OIL,TC 12X22X7 92049 92049-2204 1
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 1
BOLT,FLANGED,8X25 92154 92154-0413 1
DAMPER 92161 92161-1055 4
