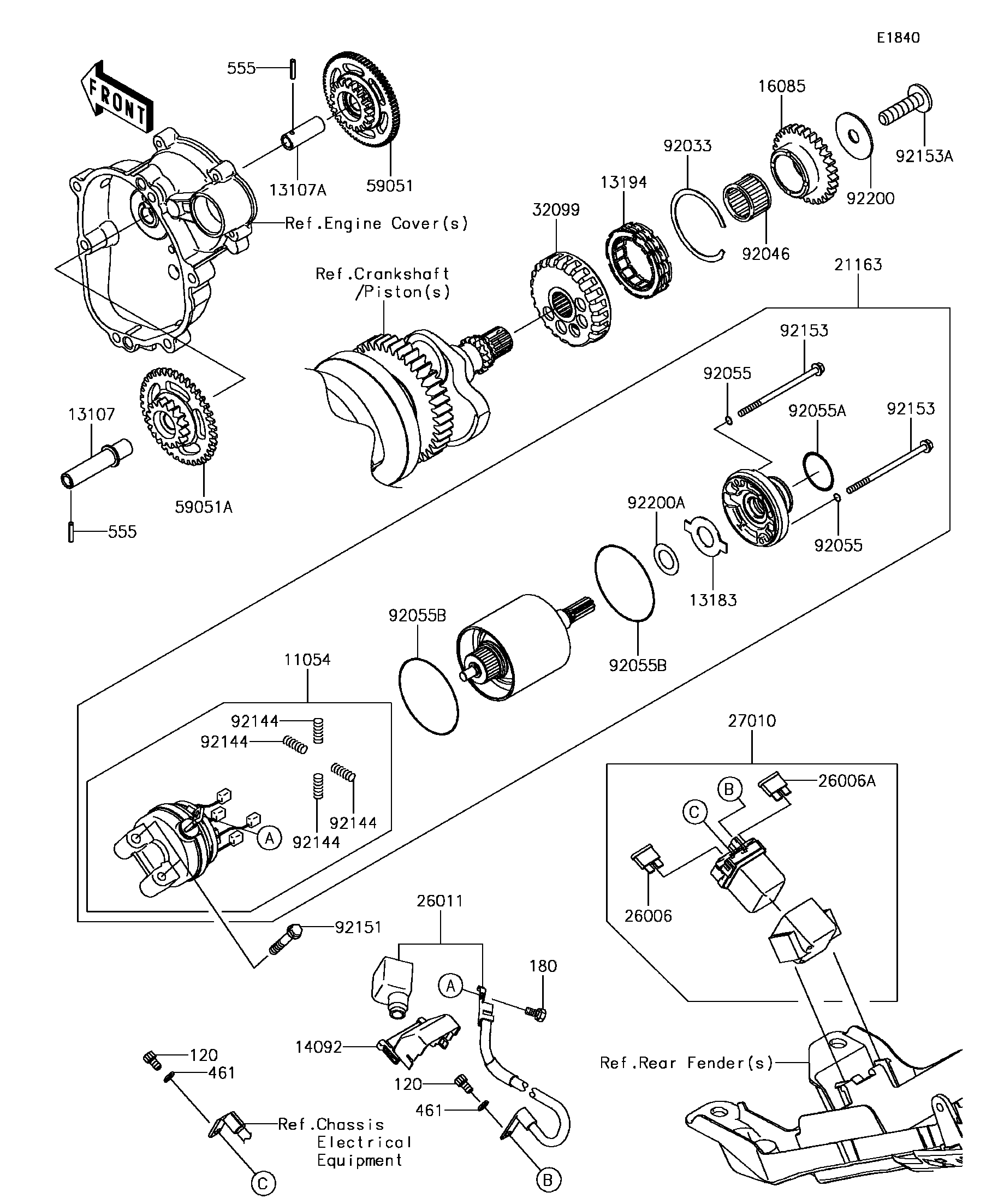

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11054 11054-1175 1
BOLT-SOCKET,5X10 120 120CB0510 2
SHAFT,ONEWAY CLUTCH SIDE 13107 13107-0168 1
SHAFT,STARTER SIDE 13107A 13107-0174 1
PLATE 13183 13183-1460 1
CLUTCH-ONEWAY 13194 13194-3705 1
COVER 14092 14092-0109 1
GEAR,29T 16085 16085-0101 1
BOLT-UPSET-WS,5X10 180 180BA0510 1
STARTER-ELECTRIC 21163 21163-0734 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 1
FUSE,MINI BLADE,30A,GREEN 26006A 26006-1080 1
WIRE-LEAD 26011 26011-0783 1
SWITCH,MAGNETIC 27010 27010-0794 1
CASE,STARTER CLUTCH 32099 32099-0026 1
WASHER-SPRING,5MM 461 461DB0500 2
PIN-SPRING,3X16 555 555A0316 2
GEAR-SPUR,STARTER SIDE 59051 59051-0094 1
GEAR-SPUR,ONEWAY CLUTCH SIDE 59051A 59051-0728 1
RING-SNAP 92033 92033-3731 1
BEARING-NEEDLE,RS263020 92046 92046-0004 1
RING-O,STARTER 92055 92055-0013 2
RING-O 92055A 92055-0126 1
RING-O 92055B 92055-1455 2
SPRING,BRUSH 92144 92144-1423 4
BOLT,6X35 92151 92151-1874 2
BOLT 92153 92153-0405 2
BOLT,TORX,10X38 92153A 92153-1521 1
WASHER,10.5X37X1.6 92200 92200-0238 1
WASHER 92200A 92200-1019 1
