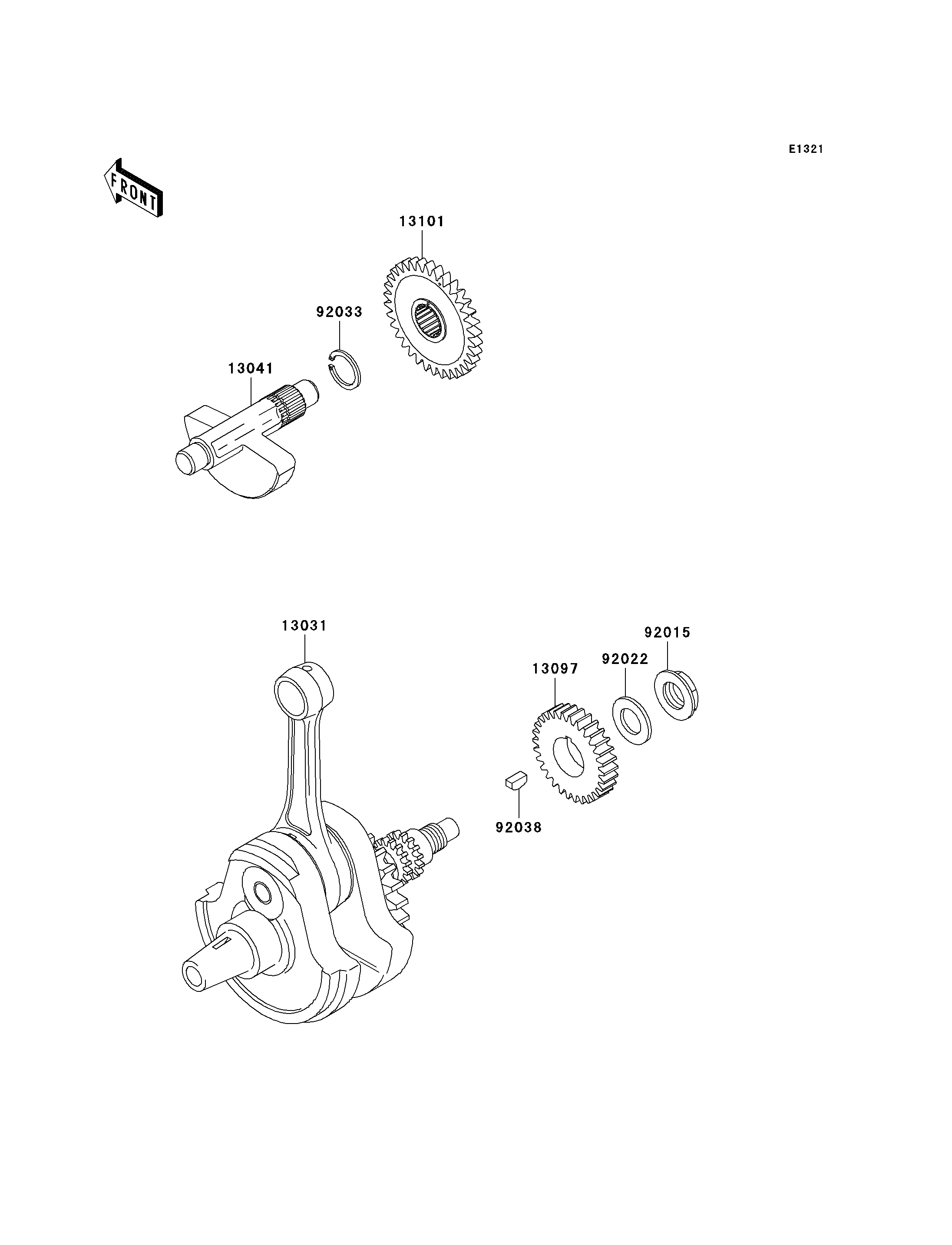

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CRANKSHAFT-COMP 13031 13031-1427 1
BALANCER 13041 13041-1134 1
GEAR-PRIMARY SPUR,22T 13097 13097-1296 1
GEAR-ASSY,BALANCER 13101 13101-1253 1
NUT,16MM 92015 92015-1581 1
WASHER,16.3X29X1.75 92022 92022-1356 1
RING-SNAP,18MM 92033 92033-029 1
KEY 92038 92038-1057 1
