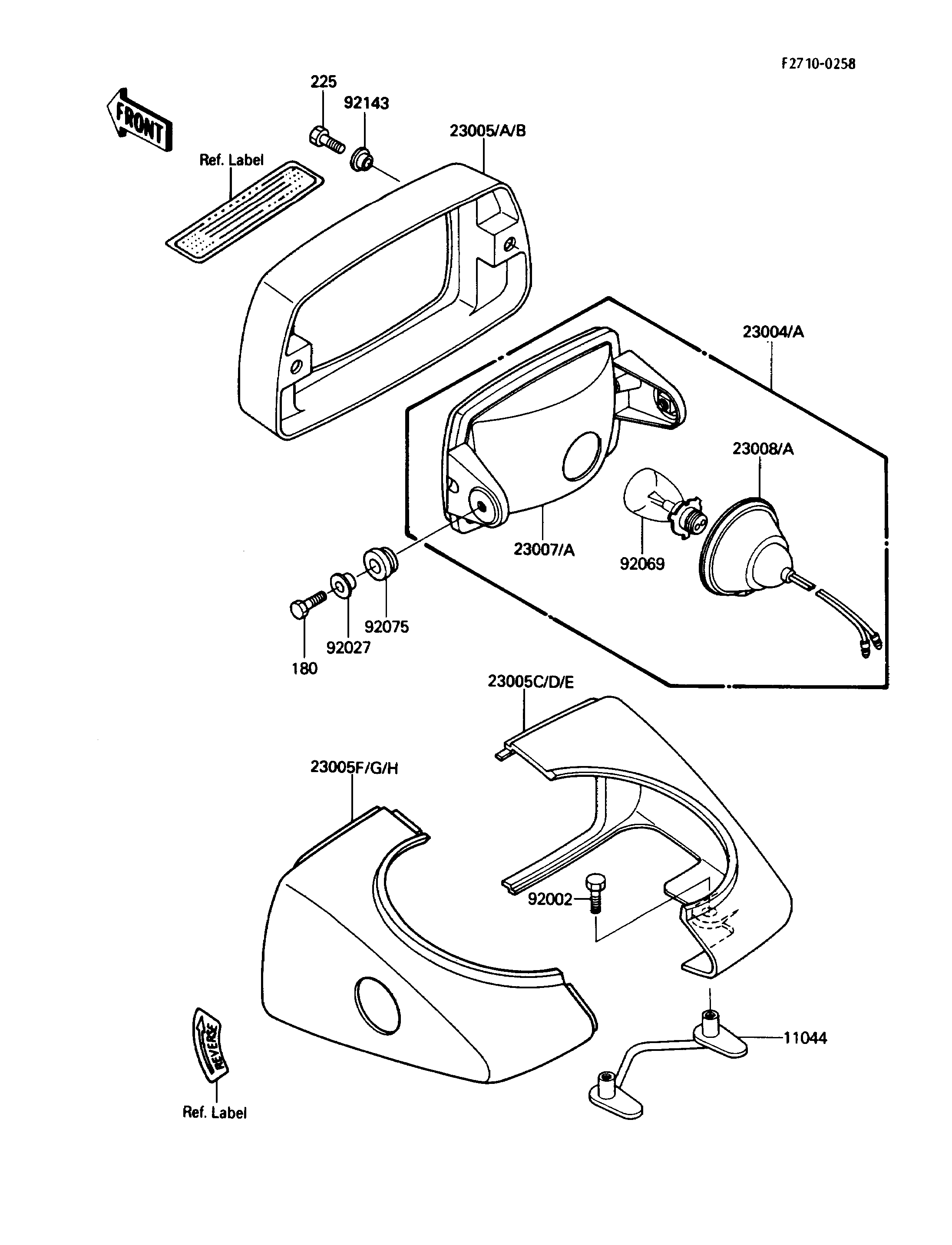

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11044 11043-1930 1
LAMP-HEAD 23004 23004-1176 1
BODY-COMP-HEAD LAMP,FR,EBONY 23005 23005-1054-6C 1
BODY-COMP-HEAD LAMP,FR,F.RED 23005B 23005-1054-6L 1
BODY-COMP-HEAD LAMP,RH,EBONY 23005C 23005-1056-6C 1
BODY-COMP-HEAD LAMP,RH,F.RED 23005E 23005-1056-6L 1
BODY-COMP-HEAD LAMP,LH,EBONY 23005F 23005-1068-6C 1
BODY-COMP-HEAD LAMP,LH,F.RED 23005H 23005-1068-6L 1
LENS-COMP,HEAD LAMP 23007 23007-1122 1
SOCKET-ASSY 23008A 23008-4004 1
BOLT,FLANGED,6X12 92002 92002-1350 2
COLLAR,L=9 92027 92027-1188 2
BULB,12V 45/45W 92069 92069-1061 1
DAMPER 92075 92075-277 2
COLLAR,L=5 92143 92143-1087 2
BOLT-UPSET-WS 180 180B0620 2
SCREW-PAN-WSP-CROS 225 225C0616 2
