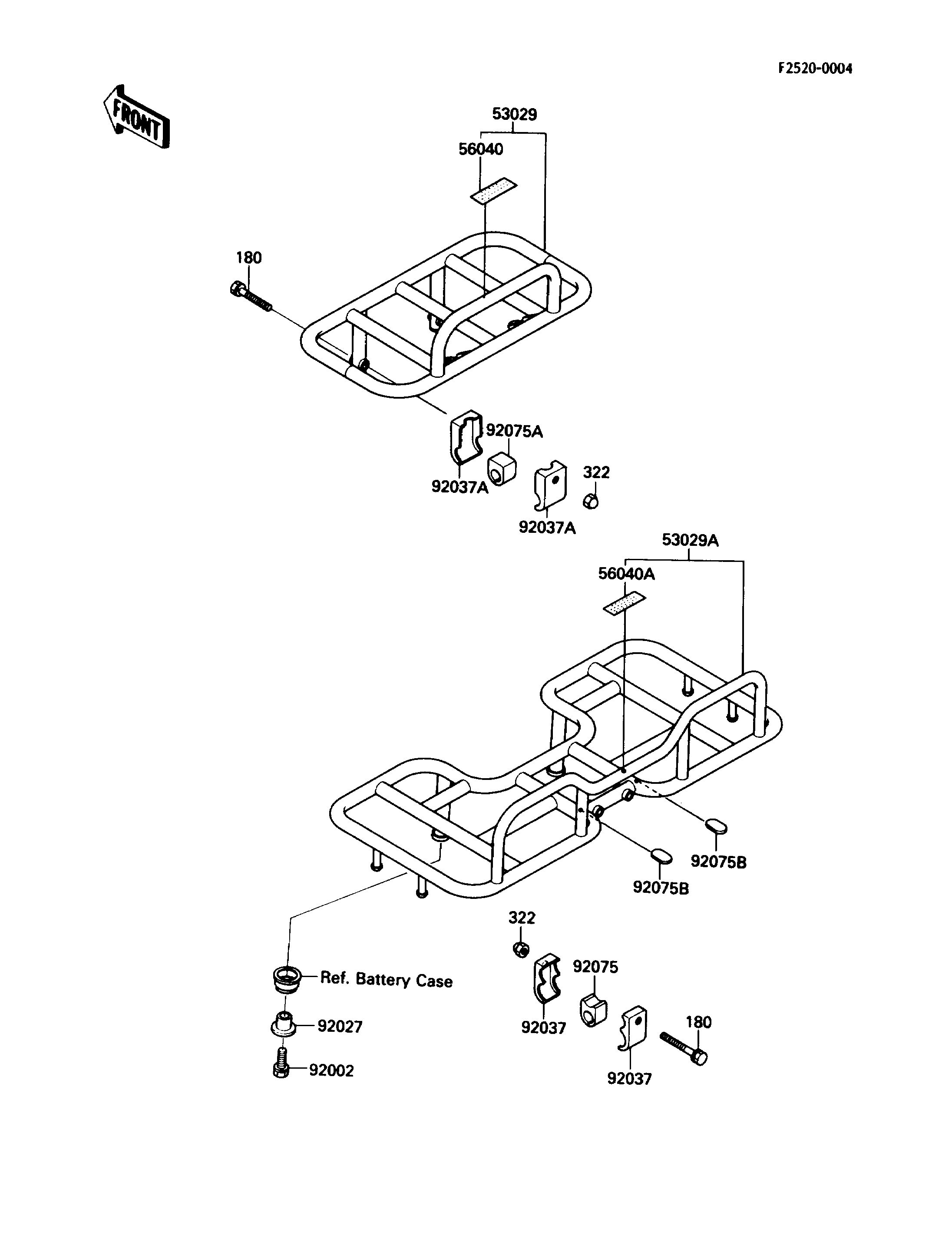

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARRIER,FR 53029 53029-1070 1
CARRIER,RR 53029A 53029-1072 1
LABEL-WARNING,MAXIMUM LOAD 56040 56040-1142 1
LABEL-WARNING,MAXIMUM LOAD 56040A 56040-1143 1
BOLT,10X32 92002 92002-1244 2
COLLAR 92027 92027-1895 2
CLAMP,RR CARRIER 92037 92037-1660 4
CLAMP,FR CARRIER 92037A 92037-1661 4
DAMPER,CARRIER 92075 92075-1728 2
DAMPER,CARRIER 92075A 92075-1729 2
DAMPER 92075B 92075-1841 2
BOLT-UPSET-WS 180 180J0640 4
NUT-CAP,6MM,BLACK 322 322C0600 4
