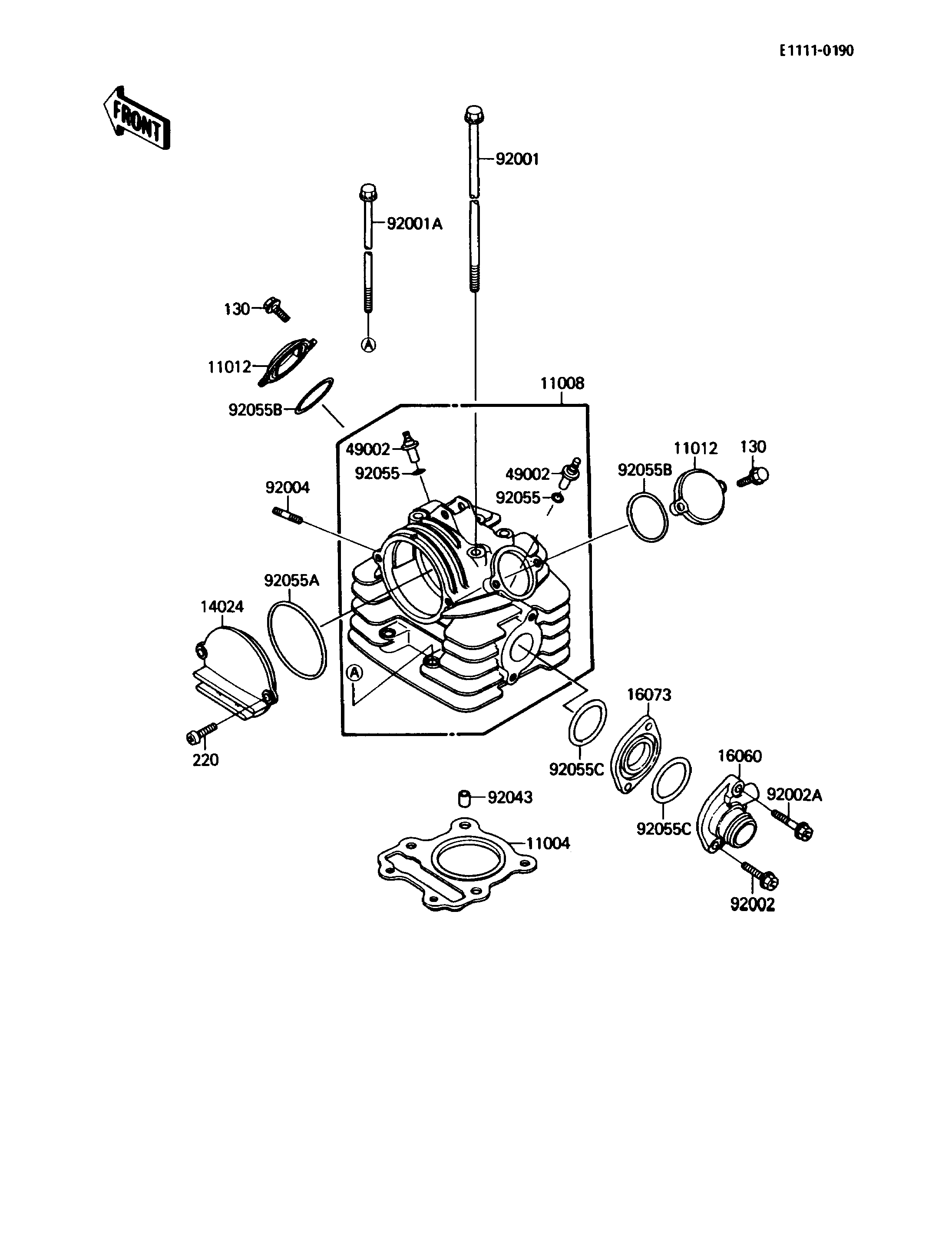

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-1163 1
HEAD-COMP-CYLINDER 11008 11008-1158 1
CAP,VALVE ADJUSTING 11012 11012-1560 2
COVER,SPROCKET 14024 14024-1358 1
PIPE-INTAKE 16060 16060-1009 1
INSULATOR,INTAKE PIPE 16073 16073-1016 1
GUIDE-VALVE 49002 49002-1056 2
BOLT,FLANGED,8X196 92001 92001-1838 4
BOLT,FLANGED,6X106 92001A 92001-1839 2
BOLT,6X25 92002 92002-1235 1
BOLT,6X30 92002A 92002-1295 1
STUD,6X18 92004 92004-1127 2
PIN,8.2X10X14 92043 92043-1264 2
RING-O,VALVE GUIDE 92055 92055-1177 2
RING-O,68.6MM 92055A 92055-1178 1
RING-O,ADJUST CAP 92055B 92055-1231 2
RING-O,30MM 92055C 92055-1232 2
BOLT-FLANGED 130 130Y0620 4
SCREW-PAN-CROS 220 220X0620 2
