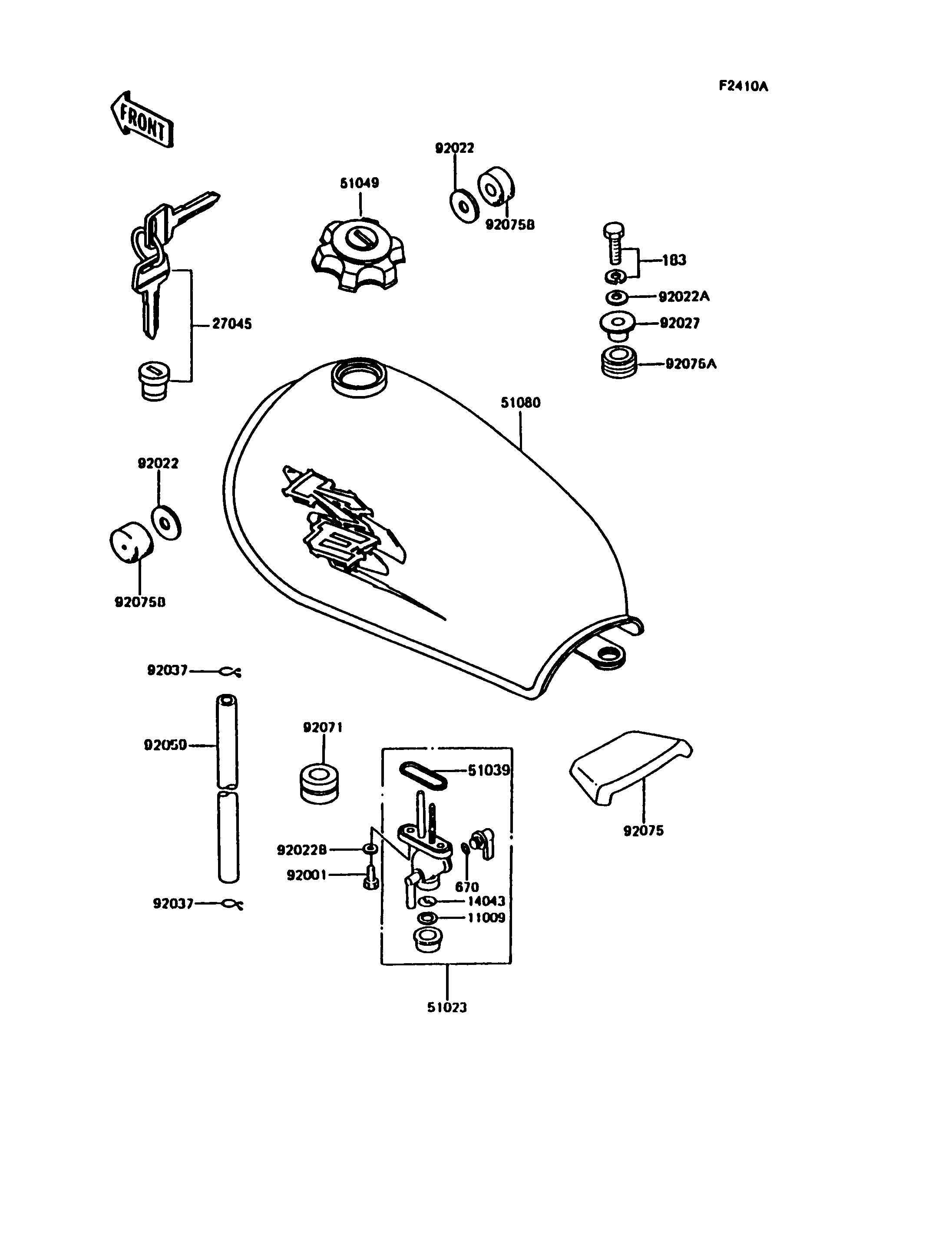

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET-WS-SMALL | 183 | 183B0835 | 1 | ||
O RING,10MM | 670 | 670B2010 | 1 | ||
GASKET,FUEL TAP CUP | 11009 | 11009-1013 | 1 | ||
FILTER,FUEL TAP | 14043 | 14043-1002 | 1 | ||
SWITCH-ASSY,TANK CAP | 27045 | 27045-5024 | 1 | ||
TAP-ASSY,FUEL | 51023 | 51023-1020 | 1 | ||
RING,TAP FLANGED | 51039 | 51039-003 | 1 | ||
CAP-TANK,FUEL | 51049 | 51049-1105 | 1 | ||
TANK-COMP-FUEL,L.GREEN | 51080 | 51080-5268-7F | 1 | ||
BOLT,6X20 | 92001 | 92001-1091 | 2 | ||
WASHER,10.5X26X2.3 | 92022 | 92022-044 | 2 | ||
WASHER,8.5X26X1.6 | 92022A | 92022-092 | 1 | ||
WASHER,6.2X11X1.5 | 92022B | 92022-183 | 2 | ||
COLLAR,12.7X15.9X19 | 92027 | 92027-223 | 1 | ||
CLAMP,TUBE | 92037 | 92037-010 | 2 | ||
TUBE,4.5X9X310 | 92059 | 92059-063 | 1 | ||
GROMMET,PIPE | 92071 | 92071-038 | 1 | ||
DAMPER,FUEL TANK | 92075 | 92075-106 | 1 | ||
DAMPER | 92075A | 92075-1086 | 1 | ||
DAMPER,FUEL TANK | 92075B | 92075-125 | 2 |
