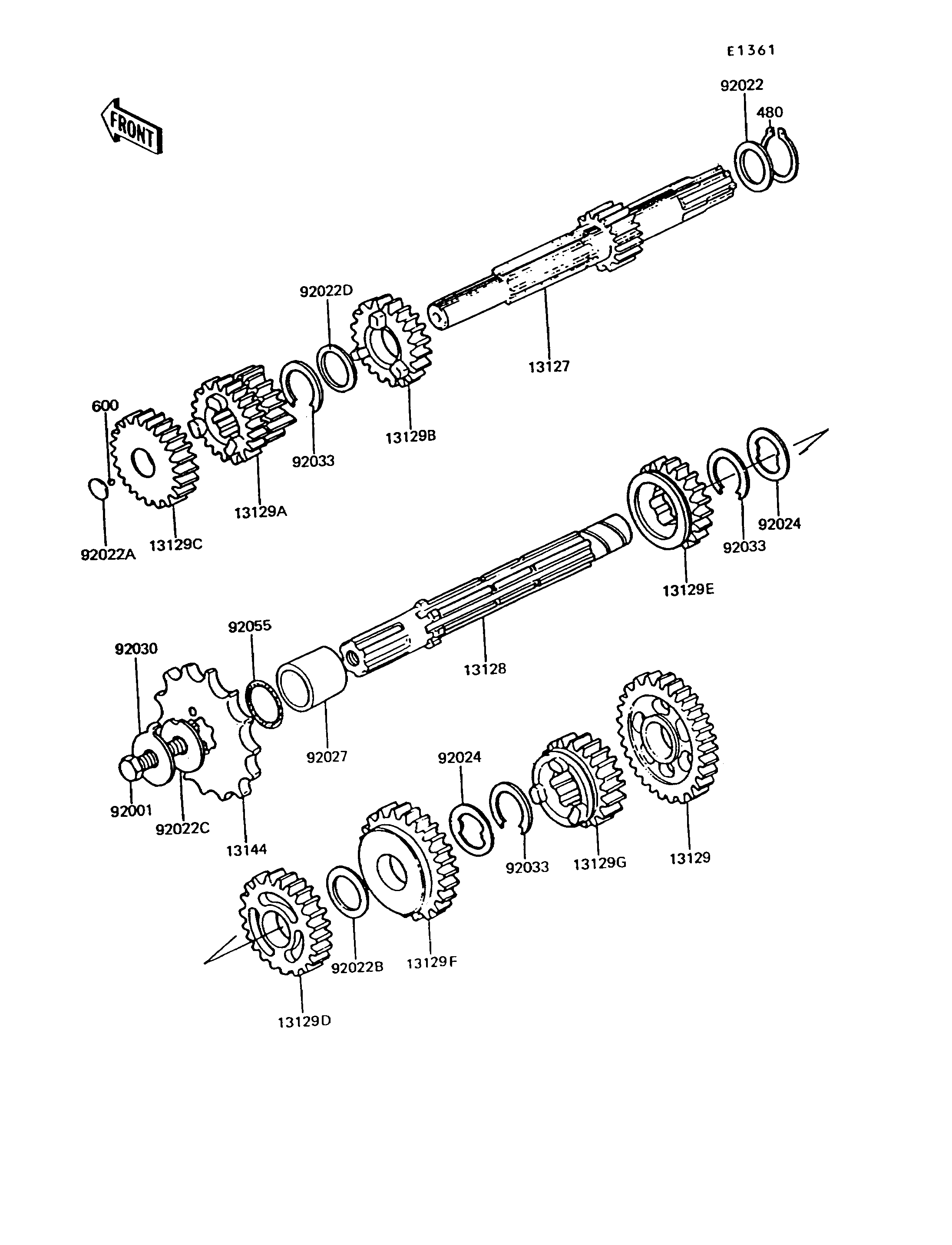

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,16MM 480 480J1600 1
BALL-STEEL,7/32" 600 600A0700 1
SHAFT-TRANSMISSION INPUT 13127 13127-1017 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-021 1
GEAR,OUTPUT LOW,35T 13129 13129-010 1
GEAR,INPUT 2ND&3RD,17T&20T 13129A 13129-1138 1
GEAR,INPUT 4TH,22T 13129B 13129-1139 1
GEAR,INPUT TOP,28T 13129C 13129-1146 1
GEAR,OUTPUT 3RD,26T 13129D 13129-1148 1
GEAR,OUTPUT TOP,26T 13129E 13129-1149 1
GEAR,OUTPUT 2ND,30T 13129F 13129-1642 1
GEAR,OUTPUT 4TH,24T 13129G 13129-1708 1
SPROCKET-OUTPUT,15T 13144 13144-054 1
BOLT,8X16 92001 92001-1368 1
WASHER,THRUST,16.5X21X0.8 92022 92022-053 1
WASHER,THRUST 92022A 92022-115 1
WASHER,THRUST,18.5X23X1.6 92022B 92022-146 1
WASHER,T=2.3 92022C 92022-266 1
WASHER,18.3X22X0.5 92022D 92022-271 1
WASHER,TOOTHED,18.5X23X1.2 92024 92024-030 2
COLLAR,ENGINE SPROCKET,L=13.7 92027 92027-1595 1
WASHER,CLAW,8X22X1.2 92030 92030-012 1
RING-SNAP,16MM 92033 92033-014 3
RING-O,17.5X1.5 92055 92055-022 1
