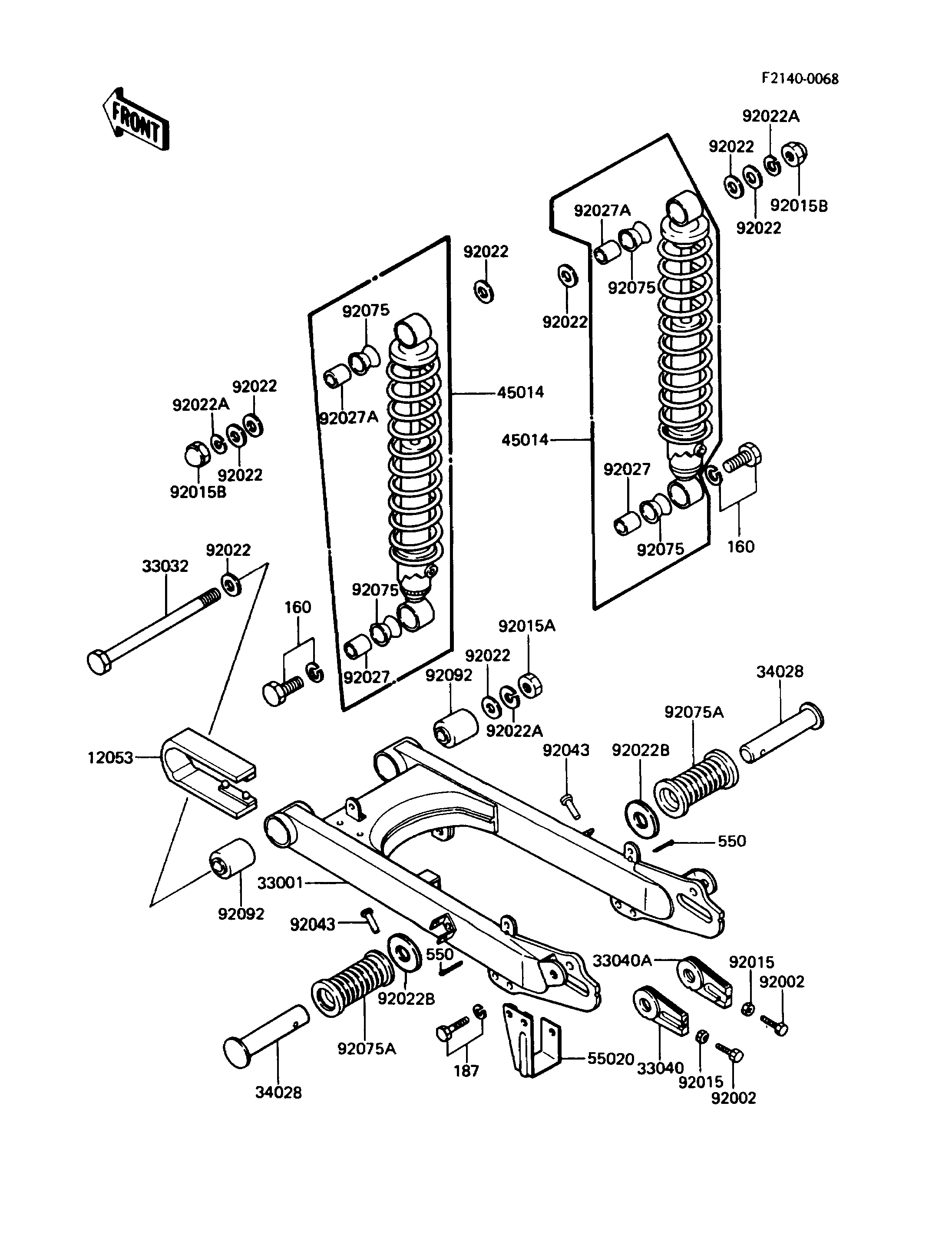

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE-CHAIN,NYLON 12053 12053-1066 1
ARM-COMP-SWING,SILVER 33001 33001-1118 1
SHAFT-SWING ARM 33032 33032-034 1
ADJUSTER-CHAIN,LH 33040 33040-045 1
ADJUSTER-CHAIN,RH 33040A 33040-046 1
STEP,RR 34028 34028-009 2
SHOCKABSORBER 45014 45014-1144 2
GUARD,CHAIN 55020 55020-012 1
BOLT,CHAIN ADJUSTER,8X50 92002 92002-1076 2
NUT,8MM 92015 92015-1364 2
NUT,12MM 92015A 92015-1381 1
NUT,CAP,12MM 92015B 92020-014 2
WASHER,12MM 92022 92022-1538 8
WASHER,SPRING,12MM 92022A 92022-1541 3
WASHER,20X30X2.3 92022B 92022-1568 2
COLLAR,SHOCKABSORBER 92027 45016-003 2
COLLAR,SHOCKABSORBER 92027A 92027-1063 2
PIN,6X28 92043 92043-079 2
DAMPER,SHOCKABSORBER 92075 92075-1020 4
DAMPER 92075A 92076-020 2
BUSHING-RUBBER 92092 92092-005 2
BOLT-FINE-WS 160 160N1035 2
BOLT-UPSET-WSP 187 187X0616 2
PIN-COTTER,2.0X15 550 550D2015 2
