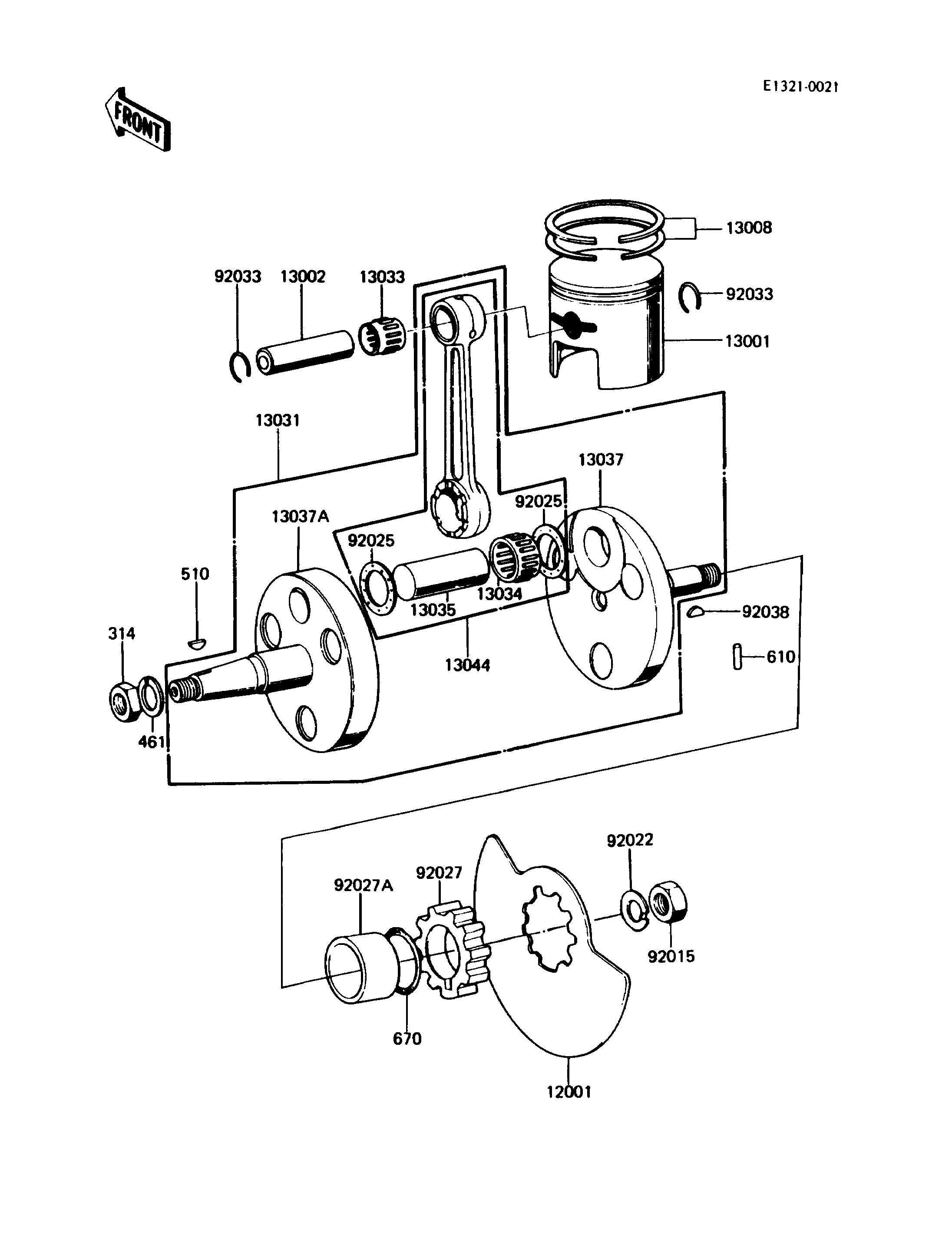

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-ROTARY 12001 12002-030 1
PISTON-ENGINE,STD 13001 13001-057 1
PIN-PISTON 13002 13002-003 1
RING-SET-PISTON,STD 13008 13008-5009 1
CRANKSHAFT-COMP 13031 13036-043 1
BEARING-NEEDLE,KTV141817 13033 13033-030 1
BEARING-NEEDLE,KT192814 13034 13034-034 1
PIN-CRANK 13035 13035-025 1
CRANKSHAFT,RH 13037 13037-1135 1
CRANKSHAFT,LH 13037A 13037-1136 1
SET-CONNECTING ROD 13044 13044-5015 1
NUT,12MM 92015 92015-006 1
WASHER,CLAW,12.5X25X0.8 92022 92024-003 1
SHIM,T=1.0 92025 92025-047 2
COLLAR,ROTARY VALVE 92027 92027-1245 1
COLLAR,20X25X9.5 92027A 92027-285 1
RING-SNAP,PISTON PIN 92033 92036-003 2
KEY,WOODRUFF 92038 92038-003 1
NUT-HEX-FINE,10MM 314 314B1000 1
WASHER-SPRING,10MM 461 461E1000 1
KEY-WOODRUFF 510 510A3200 1
ROLLER,4X10 610 610A0410 1
O RING,16MM 670 670B2016 1
