39092
41009
41022
41023
41025
41026
41034
41035
41048
41050
41053
41068
92026
92026A
92045
92045A
92049
92055
92145
92145
92172
92200
92210
92210A

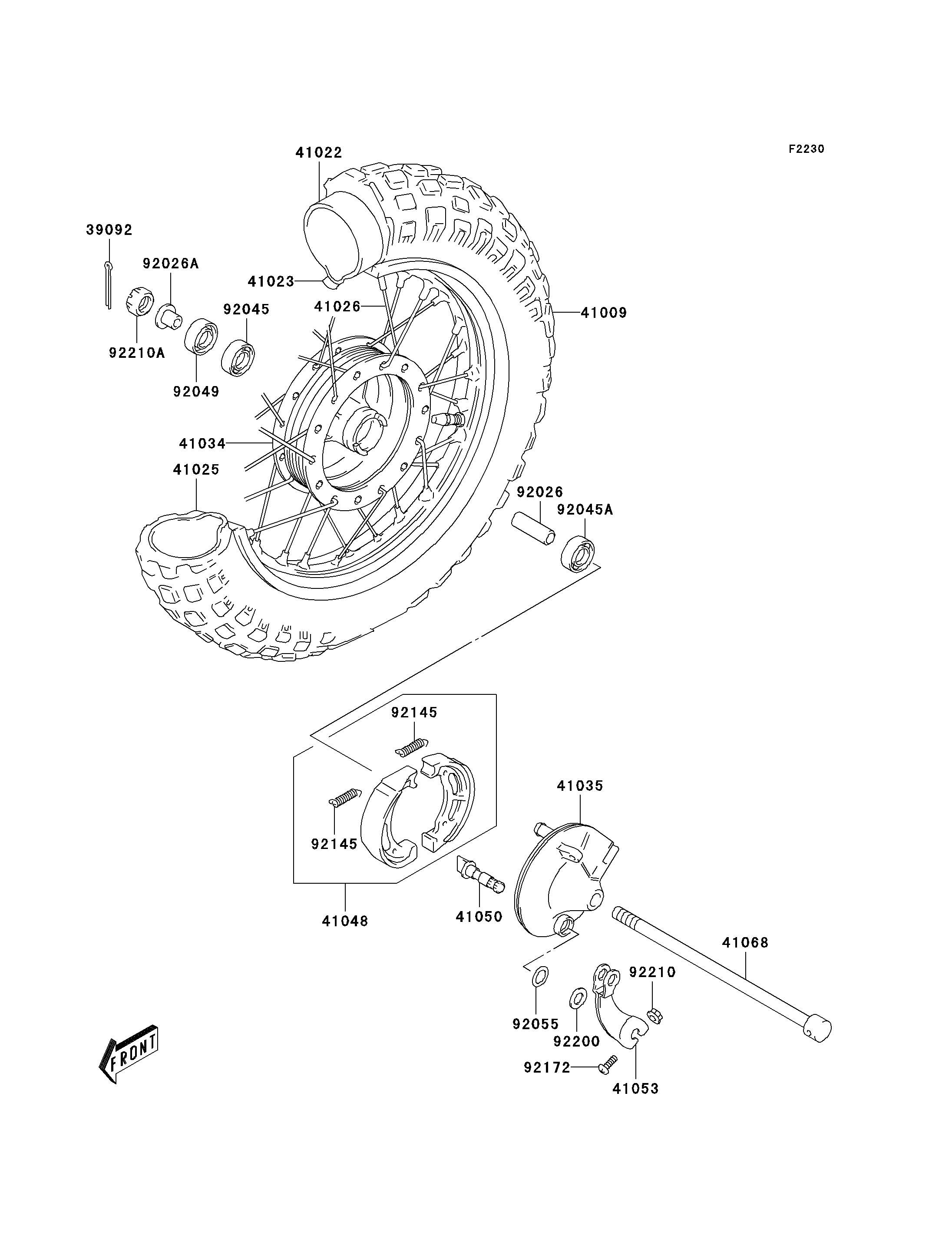

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-HAIR,COTTER 39092 39092-S005 1
TIRE,2.50-10 41009 41009-S014 1
TUBE-TIRE 41022 41022-S005 1
BAND-RIM 41023 41023-S005 1
RIM,1.40X10 41025 41025-S010 1
SPOKE-ASSY 41026 41026-S005 1
DRUM-ASSY,FRONT WHEEL 41034 41034-S007 1
PANEL-ASSY-BRAKE 41035 41035-S004 1
SHOE-BRAKE 41048 41048-S008 1
CAM-BRAKE 41050 41050-S007 1
LEVER-BRAKE CAM 41053 41053-S009 1
AXLE 41068 41068-S010 1
SPACER,FRONT HUB BEARING 92026 92026-S115 1
SPACER 92026A 92026-S116 1
BEARING-BALL,FRONT WHEEL HUB 92045 92045-S055 1
BEARING-BALL,FRONT WHEEL HUB 92045A 92045-S056 1
SEAL-OIL,WHEEL HUB 92049 92049-S055 1
RING-O 92055 92055-S091 1
SPRING,BRAKE SHOE 92145 92145-S122 2
SCREW,FRONT BRAKE 92172 92172-S192 1
WASHER,10.5X18X1 92200 92200-S177 1
NUT 92210 92210-S067 1
NUT,FRONT AXLE 92210A 92210-S119 1
