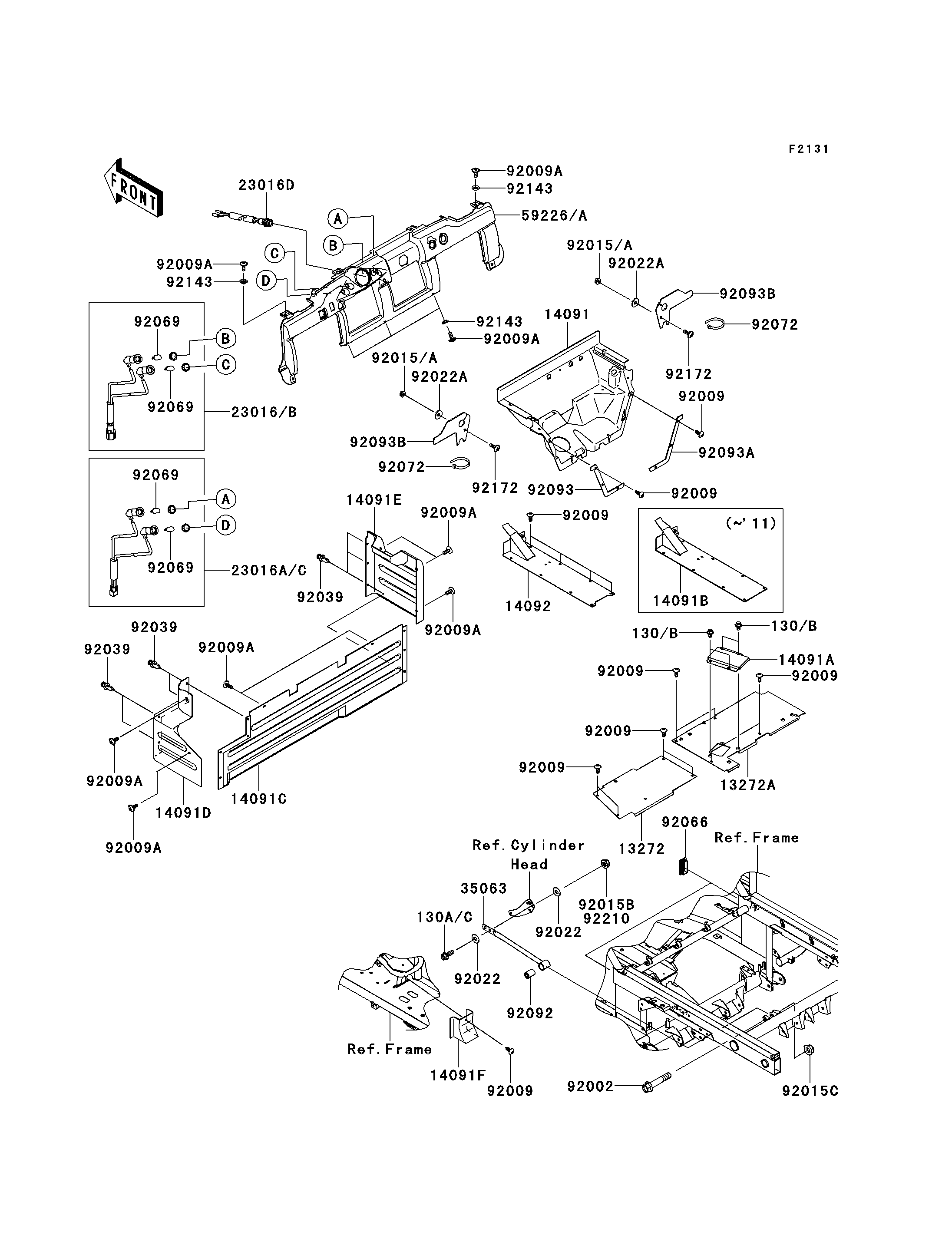

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BA0610 4
PLATE 13272 13272-0284 1
PLATE 13272A 13272-0285 1
COVER,FLOOR 14091 14091-1378 1
COVER 14091A 14091-1666 1
COVER,FRONT SEAT,CNT 14091C 14091-7531 1
COVER,FRONT SEAT,LH 14091D 14091-7541 1
COVER,FRONT SEAT,RH 14091E 14091-7542 1
COVER,PARKING CABLE 14091F 14091-7551 1
COVER,FLOOR,CNT,FR 14092 14092-0832 1
LAMP-ASSY,PARKING&WATER TEMP 23016B 23016-0035 1
LAMP-ASSY,OIL PRESSURE&GROW 23016C 23016-0037 1
LAMP-ASSY,LED 23016D 23016-7501 1
STAY 35063 35063-1107 1
PANEL-CONTROL,F.BLACK 59226 59226-0012-6Z 1
BOLT,ROD,12MM 92002 92002-1757 1
SCREW,TAPPING,6X16 92009 92009-1166 23
SCREW,6X16 92009A 92009-1621 12
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
NUT,12MM 92015C 92015-1706 1
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 4
WASHER,6.5X20X1.6,BLACK 92022A 92022-1346 2
RIVET 92039 92039-1229 7
PLUG 92066 92066-7505 2
BULB,12V 1.7W,T10 92069 92069-1059 4
BAND,L=368.3 92072 92072-3872 2
BUSHING-RUBBER 92092 92092-005 1
SEAL,FRONT FENDER,LH 92093 92093-1293 1
SEAL,FRONT FENDER,RH 92093A 92093-1294 1
SEAL,LOWER COVER 92093B 92093-1295 2
COLLAR 92143 92143-1087 5
SCREW,6X18 92172 92172-0002 2
NUT,FLANGED,LOCK,8MM 92210 92210-0005 2
BOLT-FLANGED,8X22 130C 130BB0822 2
