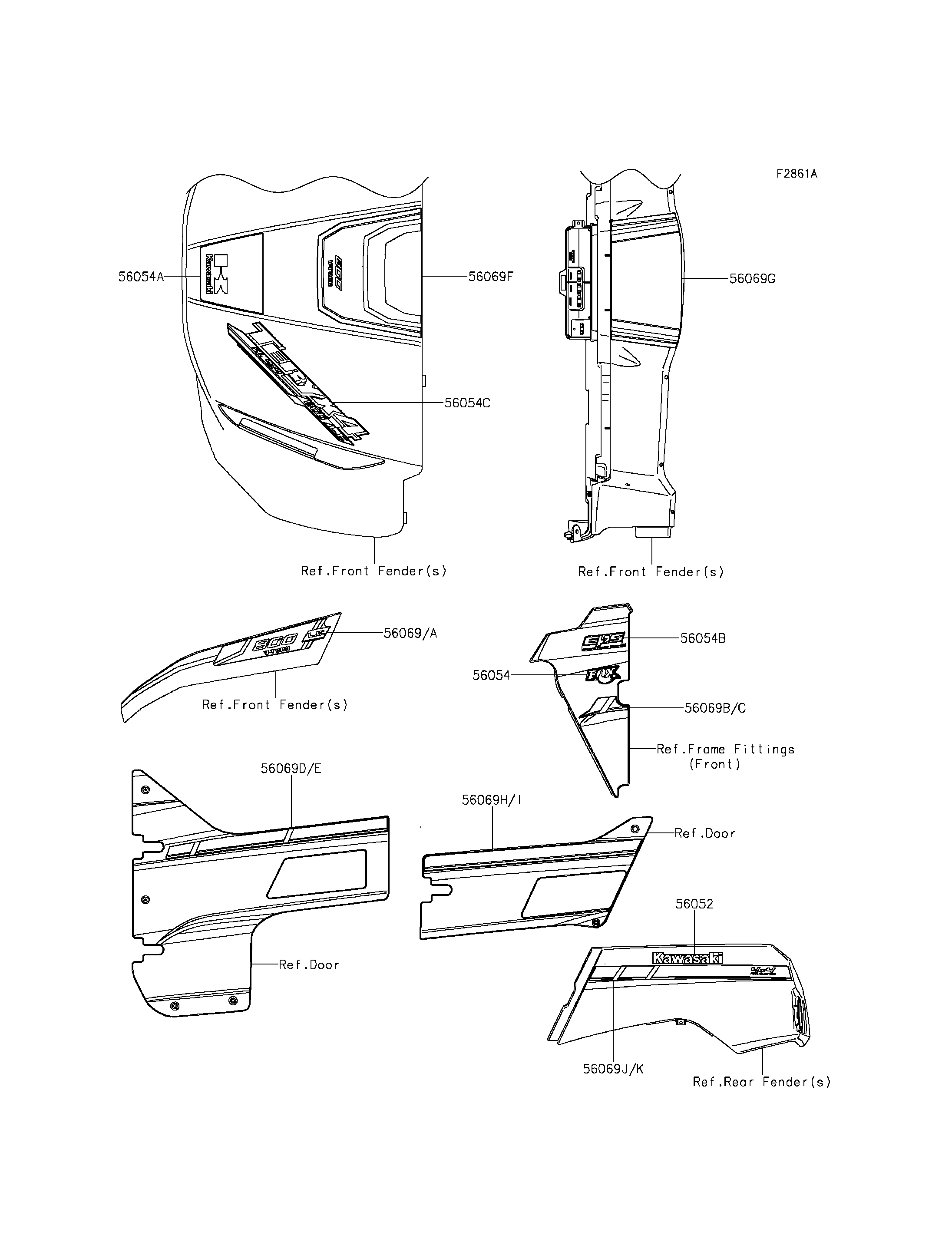

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
56052
56054
56054A
56054B
56054C
56069
56069A
56069B
56069C
56069D
56069E
56069F
56069G
56069H
56069I
56069J
56069K
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,RR FENDER,KAWASAKI | 56052 | 56052-0455 | 2 | ||
| MARK,SIDE GUARD,FOX | 56054 | 56054-1254 | 2 | ||
| MARK,FR FENDER,K | 56054A | 56054-1274 | 1 | ||
| MARK,SIDE GUARD,EPS | 56054B | 56054-1544 | 2 | ||
| MARK,FR FENDER,TERYX4 | 56054C | 56054-1547 | 1 | ||
| PATTERN,OVER FENDER,LH | 56069 | 56069-7481 | 1 | ||
| PATTERN,OVER FENDER,RH | 56069A | 56069-7482 | 1 | ||
| PATTERN,SIDE GUARD,LH | 56069B | 56069-7483 | 1 | ||
| PATTERN,SIDE GUARD,RH | 56069C | 56069-7484 | 1 | ||
| PATTERN,DOOR COVER,FR,LH | 56069D | 56069-7485 | 1 | ||
| PATTERN,DOOR COVER,FR,RH | 56069E | 56069-7486 | 1 | ||
| PATTERN,FR FENDER | 56069F | 56069-7491 | 1 | ||
| PATTERN,FR FENDER,RR | 56069G | 56069-7492 | 1 | ||
| PATTERN,DOOR COVER,RR,LH | 56069H | 56069-7519 | 1 | ||
| PATTERN,DOOR COVER,RR,RH | 56069I | 56069-7520 | 1 | ||
| PATTERN,RR FENDER,LH | 56069J | 56069-7521 | 1 | ||
| PATTERN,RR FENDER,RH | 56069K | 56069-7522 | 1 |
| MARK,RR FENDER,KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE GUARD,FOX | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,FR FENDER,K | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE GUARD,EPS | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,FR FENDER,TERYX4 | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,OVER FENDER,LH | |
| REF # | 56069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,OVER FENDER,RH | |
| REF # | 56069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE GUARD,LH | |
| REF # | 56069B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE GUARD,RH | |
| REF # | 56069C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DOOR COVER,FR,LH | |
| REF # | 56069D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DOOR COVER,FR,RH | |
| REF # | 56069E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER | |
| REF # | 56069F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RR | |
| REF # | 56069G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DOOR COVER,RR,LH | |
| REF # | 56069H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DOOR COVER,RR,RH | |
| REF # | 56069I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,LH | |
| REF # | 56069J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RH | |
| REF # | 56069K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
