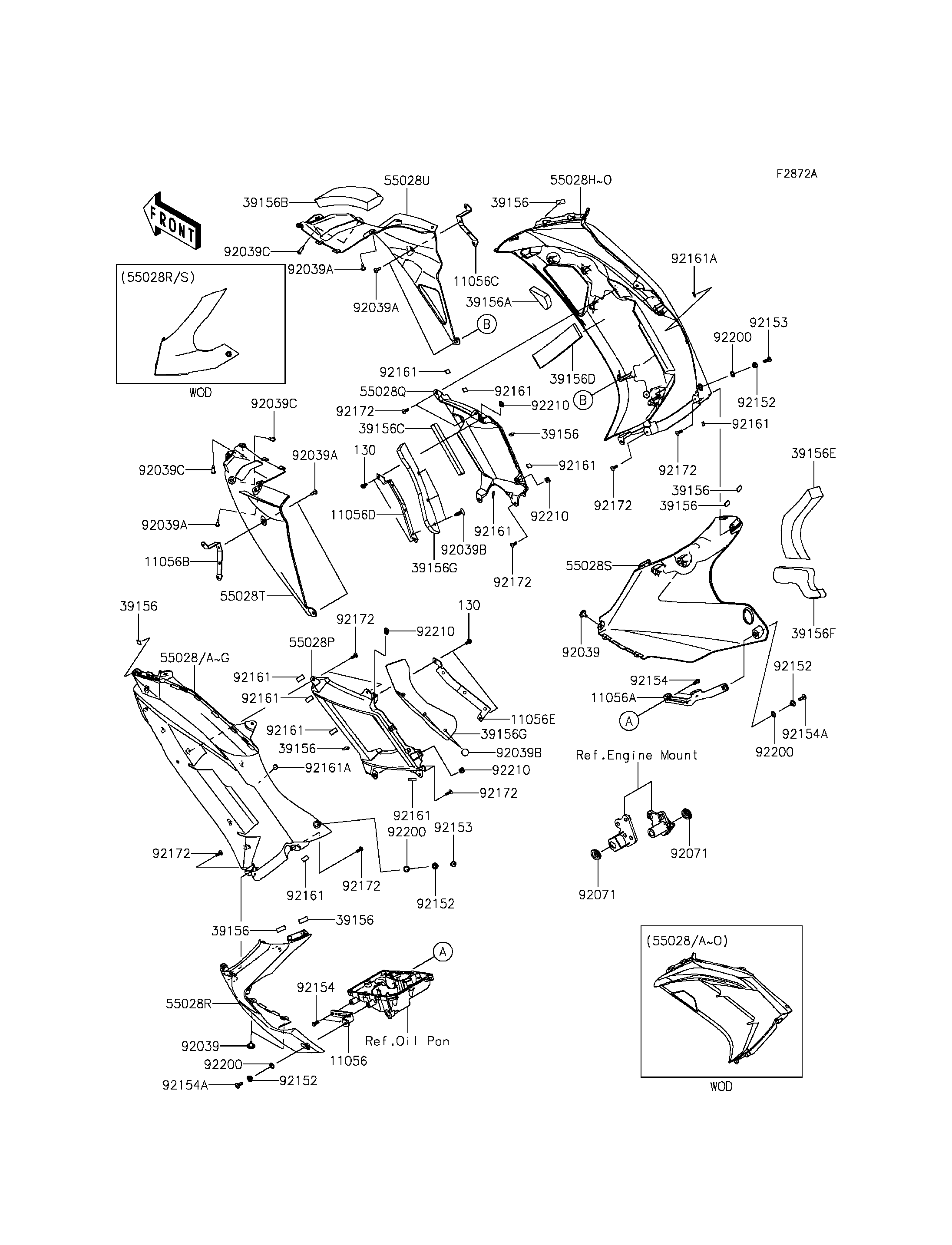

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LWR,LH 11056 11056-0994 1
BRACKET,LWR,RH 11056A 11056-0995 1
BRACKET,FR COWLING,LH 11056B 11056-1214 1
BRACKET,FR COWLING,RH 11056C 11056-1215 1
BRACKET,PAD,RH 11056D 11056-1216 1
BRACKET,PAD,LH 11056E 11056-1545 1
PAD,10X25 39156 39156-0721 8
PAD 39156A 39156-0796 1
PAD 39156B 39156-0797 1
PAD,152X20X10 39156C 39156-0798 1
PAD,166X40X10 39156D 39156-0799 1
PAD 39156E 39156-0860 1
PAD 39156F 39156-0861 1
PAD 39156G 39156-0871 2
COWLING,SIDE,LH,P.F.S.WHITE 55028E 55028-0370-40X 1
COWLING,SIDE,LH,C.L.GREEN 55028F 55028-0370-51P 1
COWLING,SIDE,LH,M.S.BLACK 55028G 55028-0370-660 1
COWLING,SIDE,RH,P.F.S.WHITE 55028M 55028-0371-40X 1
COWLING,SIDE,RH,C.L.GREEN 55028N 55028-0371-51P 1
COWLING,SIDE,RH,M.S.BLACK 55028O 55028-0371-660 1
COWLING,FIN,LH,M.F.S.BLACK 55028P 55028-0372-739 1
COWLING,FIN,RH,M.F.S.BLACK 55028Q 55028-0373-739 1
COWLING,LWR,LH,M.F.S.BLACK 55028R 55028-0374-739 1
COWLING,LWR,RH,M.F.S.BLACK 55028S 55028-0375-739 1
COWLING,FR,LH 55028T 55028-0376 1
COWLING,FR,RH 55028U 55028-0377 1
BOLT-FLANGED,5X12 130 130BA0512 4
RIVET,HOLE 8MM 92039 92039-0014 3
RIVET 92039A 92039-0068 6
RIVET 92039B 92039-0090 6
RIVET 92039C 92039-1283 3
GROMMET 92071 92071-0710 2
COLLAR 92152 92152-1359 4
BOLT,6X18 92153 92153-0478 2
BOLT,FLANGED,6X14 92154 92154-0777 4
BOLT,FLANGE BUTTON,6X18 92154A 92154-0996 2
DAMPER,10X20X1 92161 92161-1447 10
DAMPER,12X3 92161A 92161-1448 2
SCREW,TAPPING,5X16 92172 92172-0742 14
WASHER,10.4X15.9X0.5 92200 92200-0157 4
NUT 92210 92210-0571 4
