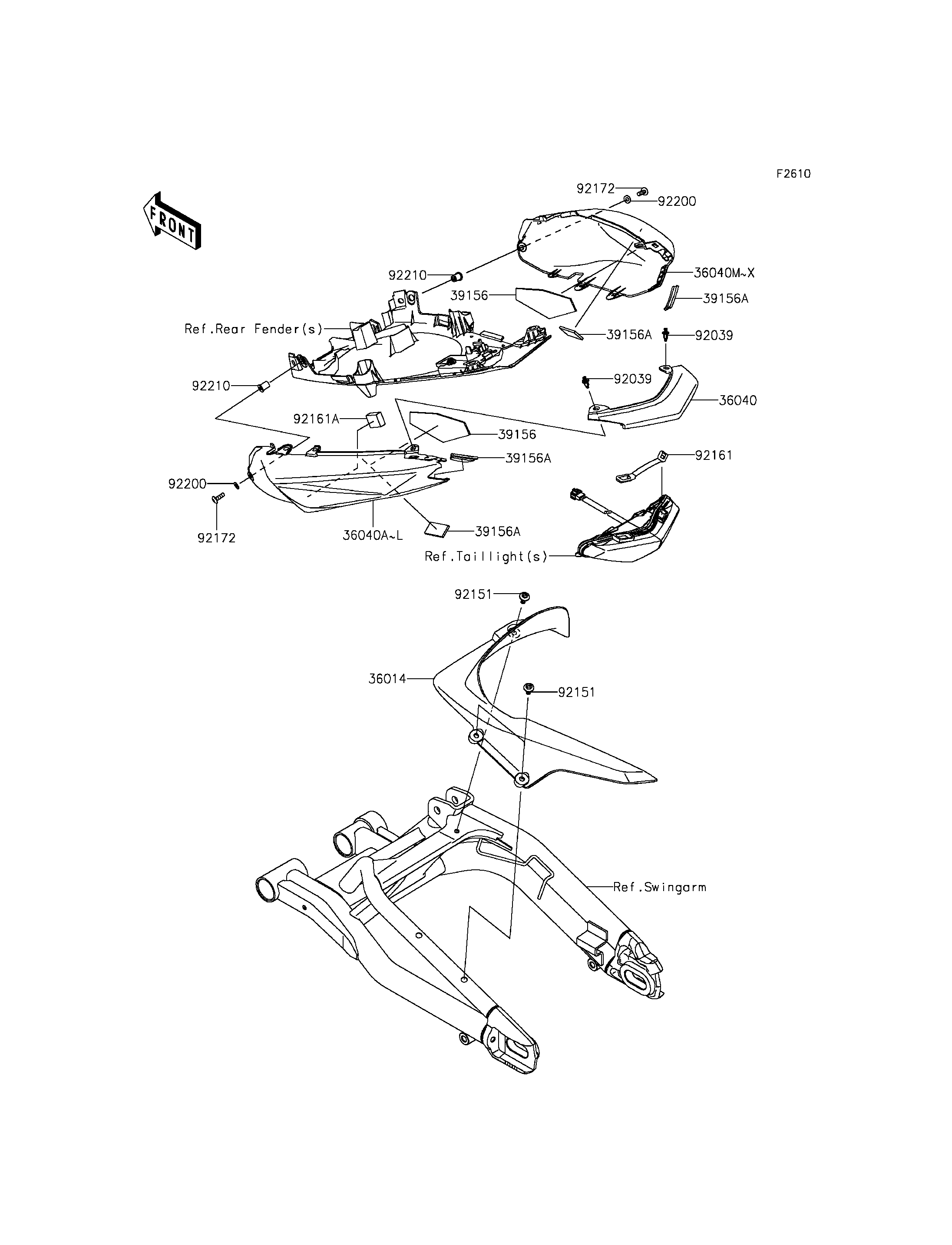

2015 Ninja® 650 - Side Covers/Chain Cover(ECF-EFF)

36014
36014
36040
36040
36040I
36040I
36040J
36040J
36040K
36040K
36040U
36040U
36040V
36040V
36040W
36040W
39156
39156
39156
39156
39156A
39156A
39156A
39156A
39156A
39156A
39156A
39156A
92039
92039
92039
92039
92151
92151
92151
92151
92161
92161
92161A
92161A
92172
92172
92172
92172
92200
92200
92200
92200
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-CHAIN 36014 36014-0552 1
COVER-TAIL,CNT 36040 36040-0118 1
COVER-TAIL,LH,P.F.S.WHITE 36040I 36040-0119-40X 1
COVER-TAIL,LH,C.L.GREEN 36040J 36040-0119-51P 1
COVER-TAIL,LH,M.S.BLACK 36040K 36040-0119-660 1
COVER-TAIL,RH,P.F.S.WHITE 36040U 36040-0120-40X 1
COVER-TAIL,RH,C.L.GREEN 36040V 36040-0120-51P 1
COVER-TAIL,RH,M.S.BLACK 36040W 36040-0120-660 1
PAD 39156 39156-0801 2
PAD,20X40X3 39156A 39156-0831 4
RIVET 92039 92039-0023 2
BOLT,SOCKET,6X14 92151 92151-1654 3
DAMPER,TAIL LAMP UPP 92161 92161-0625 1
DAMPER 92161A 92161-0718 1
SCREW,5X16 92172 92172-0479 2
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 2
NUT,WELL,5MM 92210 92210-0498 2
