Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

11010
11013
14073
14073A
14073B
16126
92066
92093
92093A
92161
92161A
92161B
92170
92171
92172
92172
92173
92192
92192A
92192B
92192C

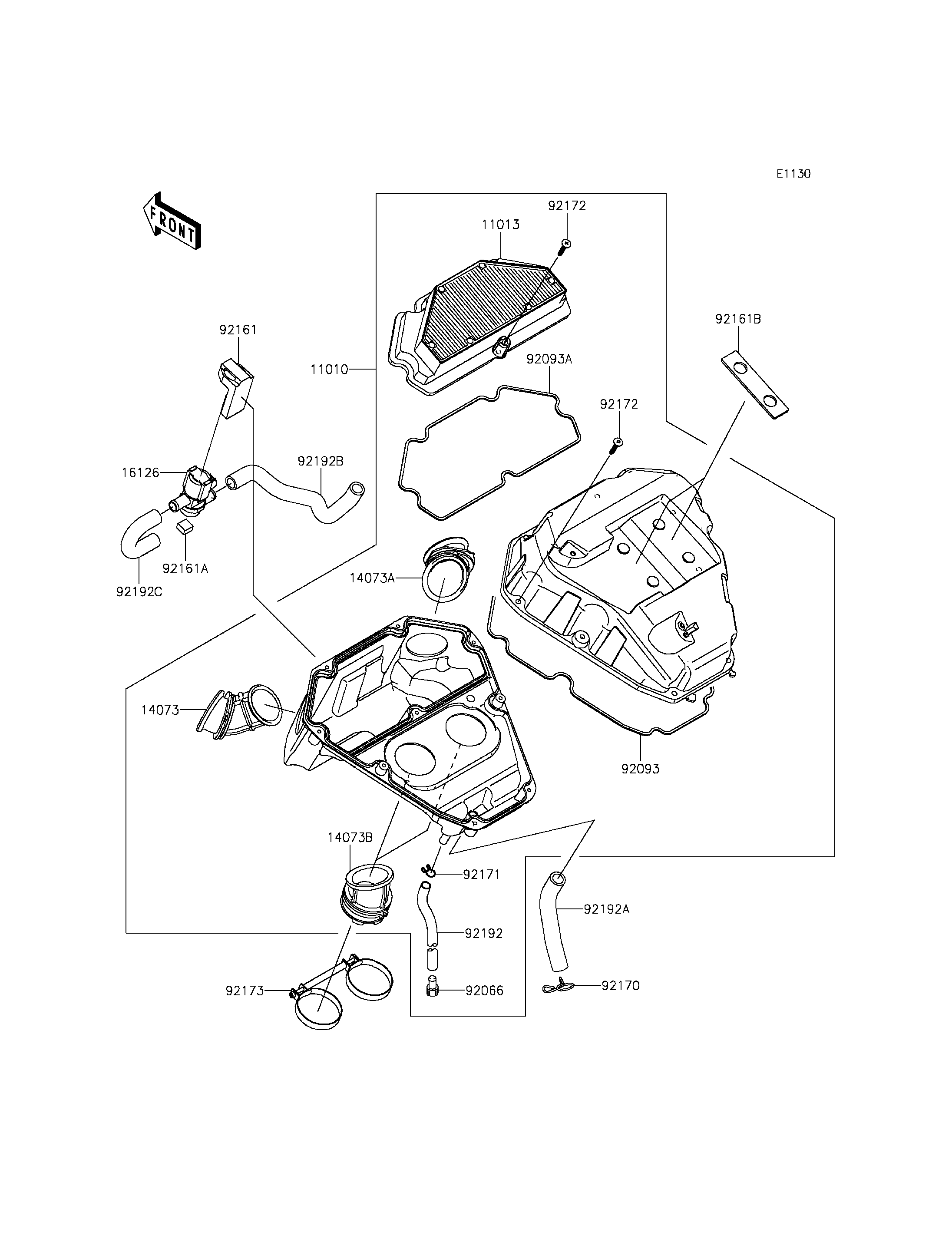

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0704 1
ELEMENT-AIR FILTER 11013 11013-0713 1
DUCT,INTAKE,LH 14073 14073-0705 1
DUCT,INTAKE,RH 14073A 14073-0706 1
DUCT 14073B 14073-0728 2
VALVE,AIR SWITING 16126 16126-0019 1
PLUG,DRAIN,8.5X15 92066 92066-0127 1
SEAL 92093 92093-0566 1
SEAL 92093A 92093-0567 1
DAMPER 92161 92161-0309 1
DAMPER 92161A 92161-1374 1
DAMPER 92161B 92161-1428 2
CLAMP 92170 92170-1017 1
CLAMP,DRAIN 92171 92171-1584 1
SCREW,TAPPING,5X25 92172 92172-0772 9
CLAMP 92173 92173-0720 1
TUBE,8X12X245 F 92192 92192-0709 1
TUBE,BREATHER 92192A 92192-0958 1
TUBE,A/C-ASV 92192B 92192-0959 1
TUBE,ASV-HEAD 92192C 92192-0960 1
