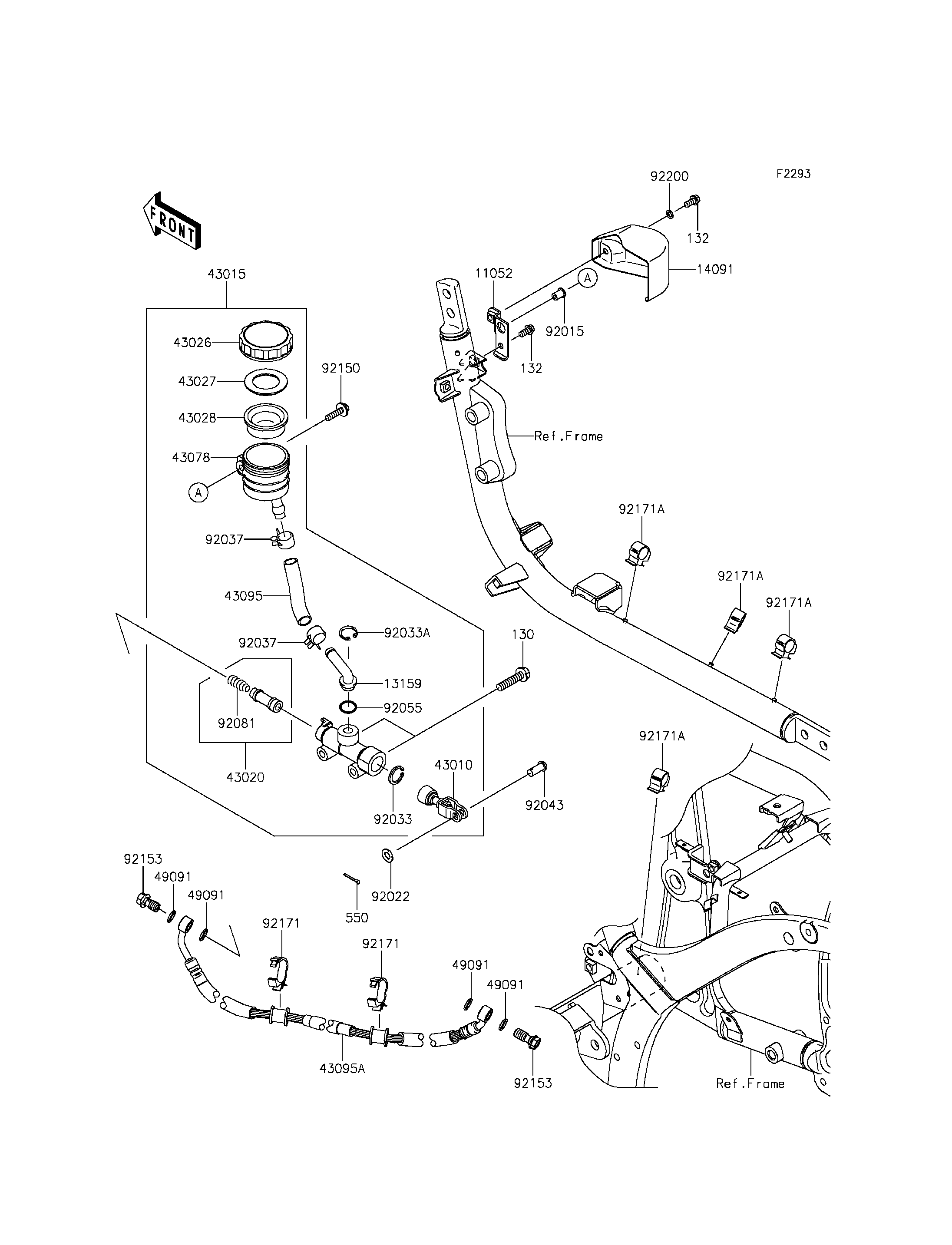

2014 Vulcan 900 Classic - Rear Master Cylinder

130
132
132
550
11052
13159
14091
43010
43015
43020
43026
43027
43028
43078
43095
43095A
49091
49091
49091
49091
92015
92022
92033
92033A
92037
92037
92043
92055
92081
92150
92153
92153
92171
92171
92171A
92171A
92171A
92171A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X35 130 130BB0835 2
BOLT-FLANGED-SMALL,6X12 132 132BB0612 2
PIN-COTTER,2.0X15 550 550AA2015 1
BRACKET,RESERVOIR TANK 11052 11052-1305 1
CONNECTOR,RR MASTER CYLINDER 13159 13159-1052 1
COVER,RESERVOIR TANK,F.S.BLACK 14091 14091-0536-18R 1
ROD-ASSY-BRAKE 43010 43010-1062 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0081 1
PISTON-COMP-BRAKE 43020 43020-1057 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
RESERVOIR,RR MASTER CYLINDER 43078 43078-1178 1
HOSE-BRAKE,RR MASTER CYLINDER 43095 43095-0306 1
HOSE-BRAKE,RR 43095A 43095-0682 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
NUT 92015 92015-1700 1
WASHER,8.5X16X1.2 92022 92022-1582 1
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
CLAMP,BRAKE HOSE 92037 92037-1547 2
PIN,8X16 92043 92043-1013 1
RING-O,14.8X2.4 92055 92055-0741 1
SPRING,MASTER CYLINDER 92081 92081-1737 1
BOLT,6X25 92150 92150-1829 1
BOLT,OIL,L=23 92153 92153-1419 2
CLAMP 92171 92171-0782 2
CLAMP,15MM DIA. 92171A 92171-1424 4
WASHER,6.2X10X1 92200 92200-1465 1
