120
120
220
220
220
220A
11065
13042
13042
13280
27010
39058
39058A
46019
46075
46076
46091
46091A
46092
92009
92009
92066
92066
92154
92154A
92172
92172A
92210
92210A

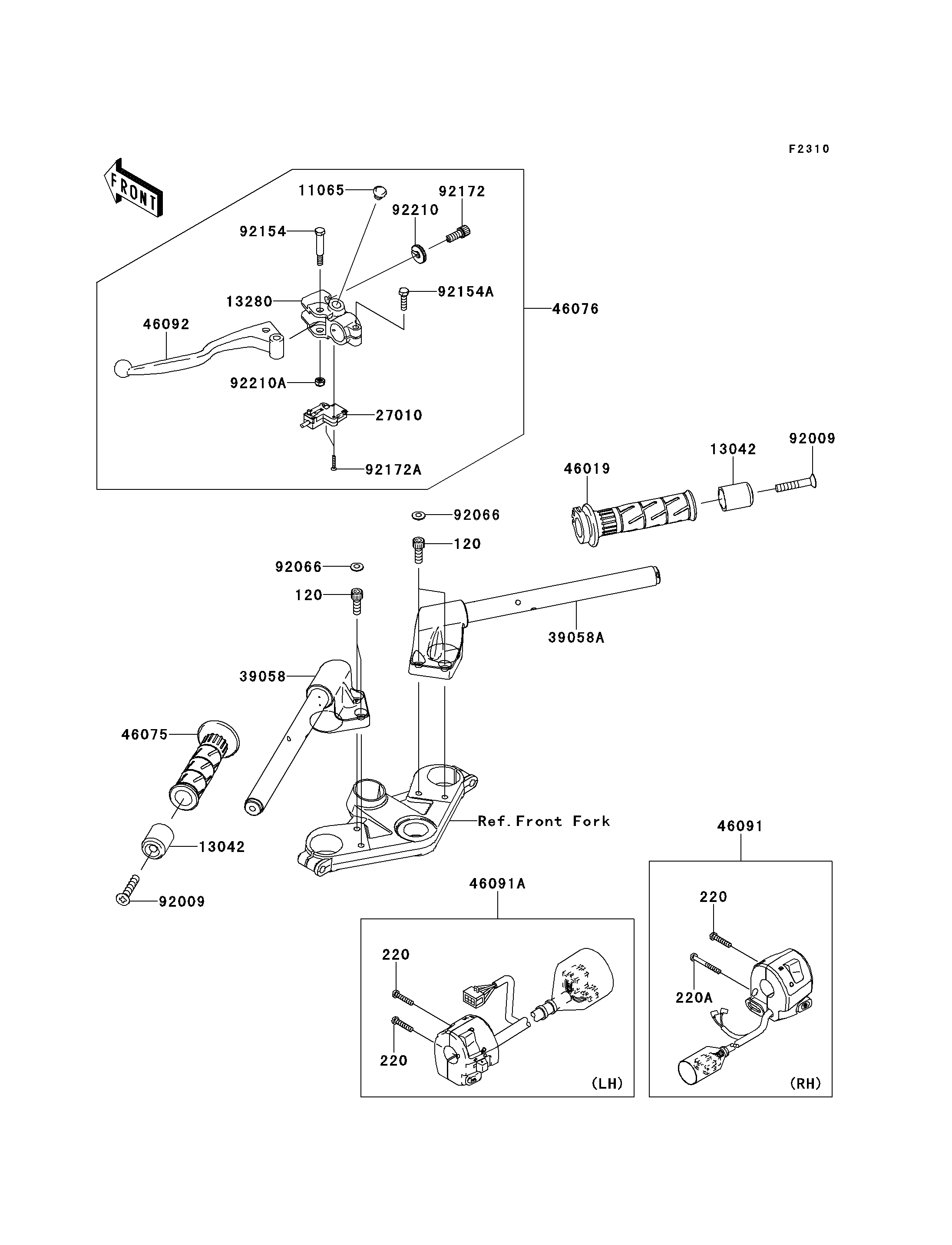

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X22 120 120CB0822 4
SCREW-PAN-CROS,5X25 220 220AB0525 3
SCREW-PAN-CROS,5X40 220A 220AB0540 1
CAP,DUMMY 11065 11065-0218 1
WEIGHT,HANDLE 13042 13042-0032 2
HOLDER,CLUTCH LEVER 13280 13280-0295 1
SWITCH,CLUTCH 27010 27010-0729 1
HANDLE-COMP,LH,BLACK 39058 39058-0007-18R 1
HANDLE-COMP,RH,BLACK 39058A 39058-0008-18R 1
GRIP-ASSY,THROTTLE 46019 46019-0060 1
GRIP,HANDLE,LH 46075 46075-0564 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0087 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0205 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0249 1
LEVER-GRIP,CLUTCH 46092 46092-0043 1
SCREW,8X45 92009 92009-1257 2
PLUG 92066 92066-1216 4
BOLT,CLUTCH LEVER 92154 92154-0066 1
BOLT 92154A 92154-0067 1
SCREW,CABLE ADJUST,8MM 92172 92172-0376 1
SCREW,3X16 92172A 92172-0788 2
NUT,CABLE ADJUST,LOCK,8MM 92210 92210-0479 1
NUT,LOCK,6MM 92210A 92210-0480 1
