132
132
11056
11061
11061A
13107
14092
16097
16130
16142
16154
27010
32155
49034
49065
59051
92022
92042
92055
92066
92122
92154
92154A

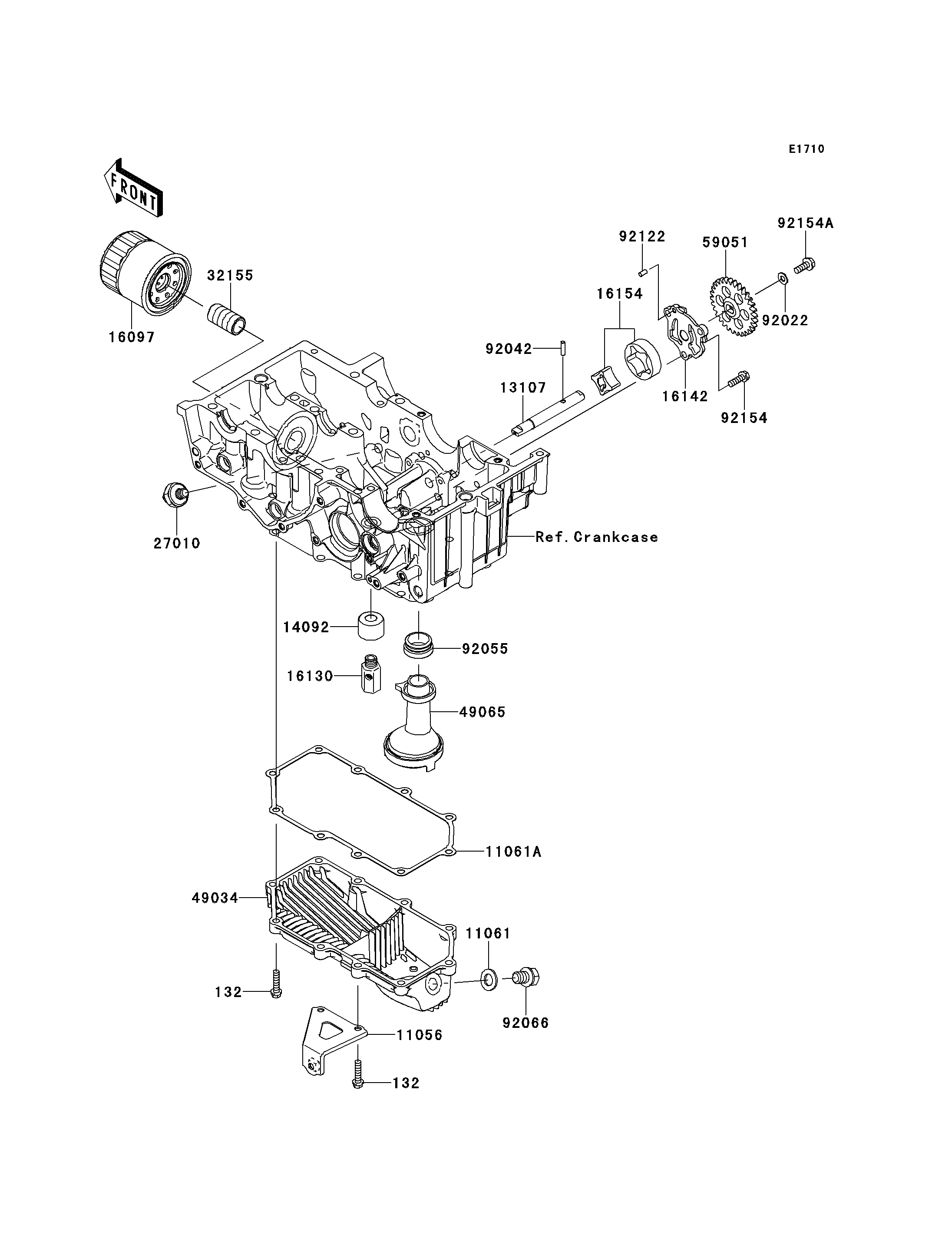

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X25 132 132BA0625 10
BRACKET 11056 11056-1640 1
GASKET,12X22X2 11061 11061-0417 1
GASKET,OIL PAN 11061A 11061-0794 1
SHAFT 13107 13107-0741 1
COVER,RELIEF VALVE 14092 14092-1002 1
FILTER-ASSY-OIL 16097 16097-0004 1
VALVE-ASSY-RELIEF 16130 16130-0002 1
COVER-PUMP 16142 16142-0707 1
ROTOR-PUMP 16154 16154-0711 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE,OIL FILTER 32155 32155-0029 1
PAN-OIL 49034 49034-0553 1
FILTER-OIL 49065 49065-0711 1
GEAR-SPUR,30T 59051 59051-0721 1
WASHER,6X12.8X1.2 92022 92022-1827 1
PIN,DOWEL,4X15.8 92042 92042-014 1
RING-O,OIL FILTER 92055 92055-1354 1
PLUG,OIL DRAIN,12X15 92066 92066-0767 1
ROLLER,4X8 92122 92122-0557 1
BOLT,FLANGED,6X18 92154 92154-0784 3
BOLT,FLANGED,6X16 92154A 92154-1055 1
