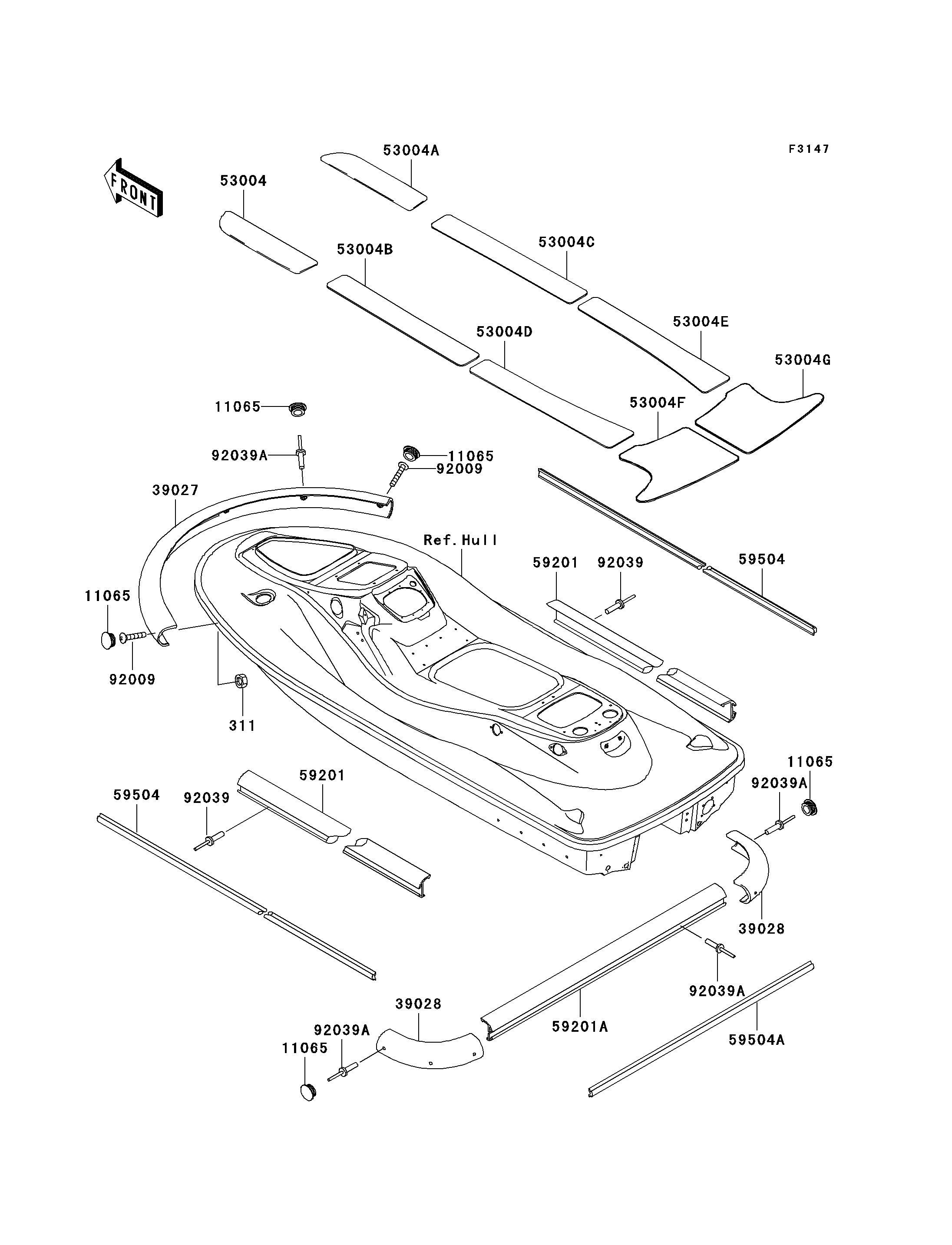

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX,5MM 311 311R0500 2
CAP,F.BLACK 11065 11065-3707-6Z 12
BUMPER-FRONT,F.BLACK 39027 39027-3741-6Z 1
BUMPER-REAR,CORNER,F.BLACK 39028 39028-3752-6Z 2
MAT,DECK,FR,LH,S.GRAY 53004 53004-3783-RG 1
MAT,DECK,FR,RH,S.GRAY 53004A 53004-3784-RG 1
MAT,DECK,FR,LH 53004B 53004-3852 1
MAT,DECK,FR,RH 53004C 53004-3853 1
MAT,DECK,MIDDLE,LH 53004D 53004-3854 1
MAT,DECK,MIDDLE,RH 53004E 53004-3855 1
MAT,DECK,RR,LH 53004F 53004-3856 1
MAT,DECK,RR,RH 53004G 53004-3857 1
BUMPER,SIDE,F.BLACK 59201 59201-3787-6Z 2
BUMPER,RR,F.BLACK 59201A 59201-3788-6Z 1
INSERT-BOAT FENDER,SIDE,F.BLK 59504 59504-3729-6Z 2
INSERT-BOAT FENDER,RR,F.BLACK 59504A 59504-3730-6Z 1
SCREW,5X30 92009 92009-3834 2
RIVET 92039 92039-3771 24
RIVET 92039A 92039-3773 14
