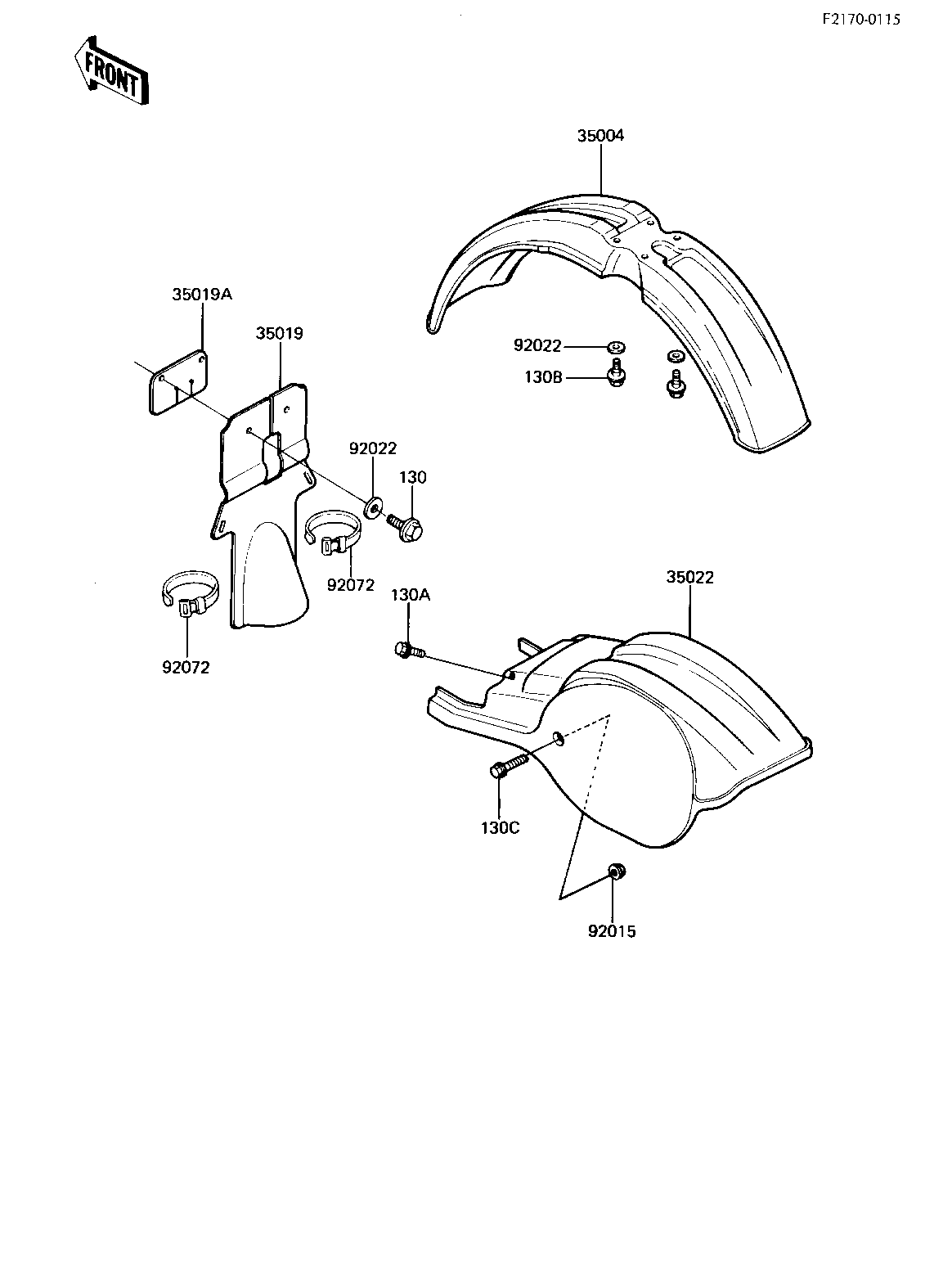

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FRONT,L.GREEN 35004 35004-1233-6W 1
FLAP,REAR FENDER 35019 35019-1035 1
FLAP 35019A 35019-1038 1
FENDER-COMP-REAR,L.GR 35022 35022-1204-AE 1
NUT-6MM 92015 92015-1078 2
WASHER 6.5X20X1.6T 92022 92022-125 6
BAND,SHORT 92072 92072-030 2
BOLT,FLANGED,6X12 130 130G0612 2
BOLT,FLANGED,6X14 130A 130G0614 2
BOLT-FLANGED,6X18 130B 130G0618 4
BOLT,FLANGED,6X20 130C 130G0620 2
