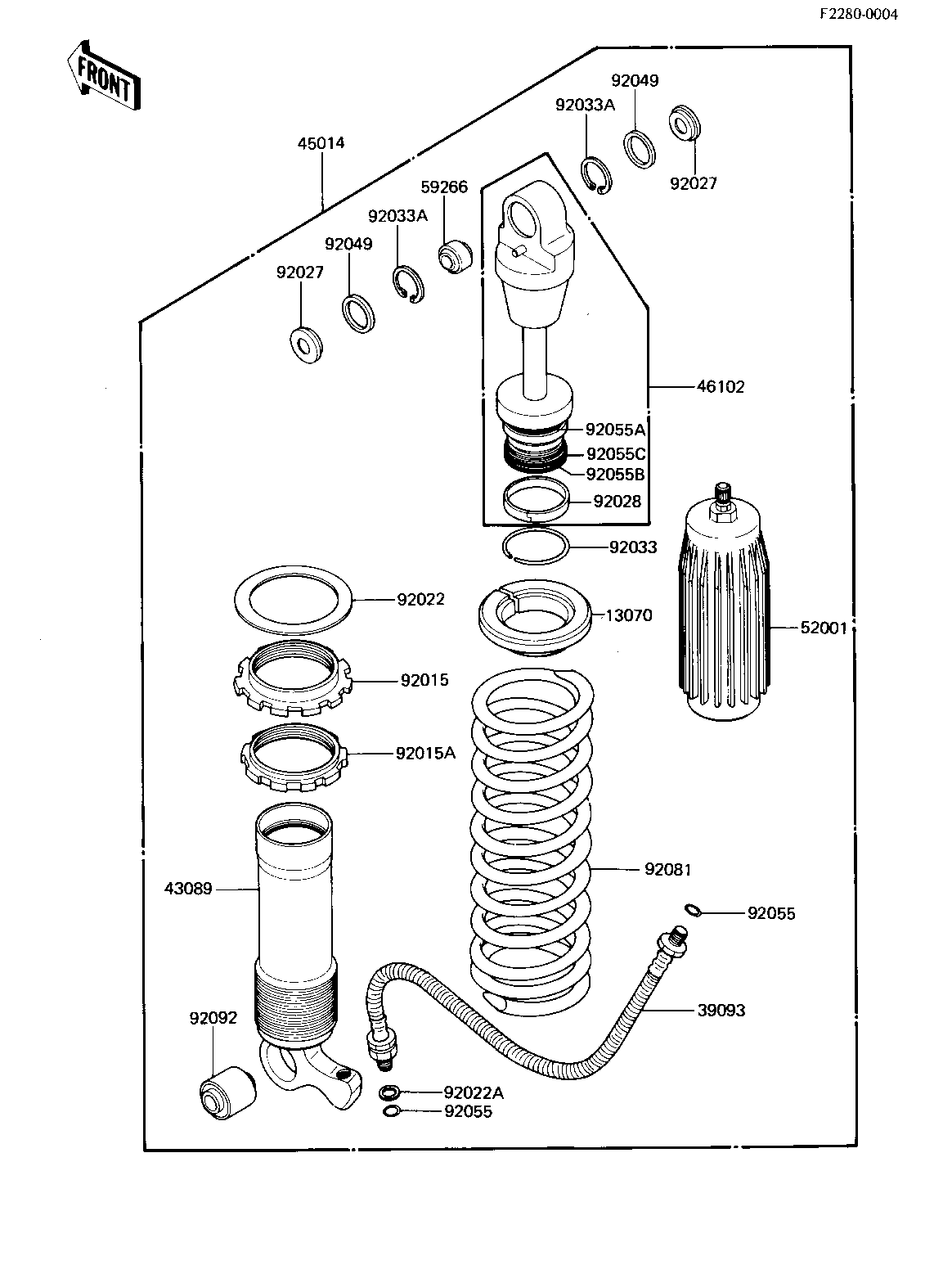

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,SPRING 13070 13070-1058 1
PIPE-COMP-SUSP 39093 39093-1081 1
CYLINDER-SHOCKABSORBE 43089 43089-1033 1
SHOCK ABSBR RR 45014 45014-1159 1
ROD,PISTON 46102 46102-1044 1
TANK-OIL,REARSHOCK 52001 52001-1013 1
JOINT-BALL 59266 59266-1051 1
NUT,SPRING ADJUST 92015 92015-1186 1
NUT,SPRING ADJUST LOC 92015A 92015-1187 1
WASHER,SPRING 92022 92022-1235 1
WASHER,REAR SHOCK 92022A 92022-1297 1
COLLAR,REAR SHOCK 92027 92027-1417 2
BUSHING,REAR SHOCK 92028 92028-1127 1
RING-SNAP,AIR VALVE 92033 92033-1061 1
RING-SNAP,REAR SHOCK 92033A 92033-1076 2
SEAL-OIL,REARSHOCK 92049 92049-1093 2
"0" RING 92055 92055-1099 2
"0" RING,REAR SHOCK 92055A 92055-1102 1
"0" RING,REAR SHOCK 92055B 92055-1103 1
RING-O,REAR SHOCK 92055C 92055-1121 1
SPRING,RR SHOCK 92081 92081-1468 1
BUSHING-RUBBER,SHOCKA 92092 92092-1008 1
