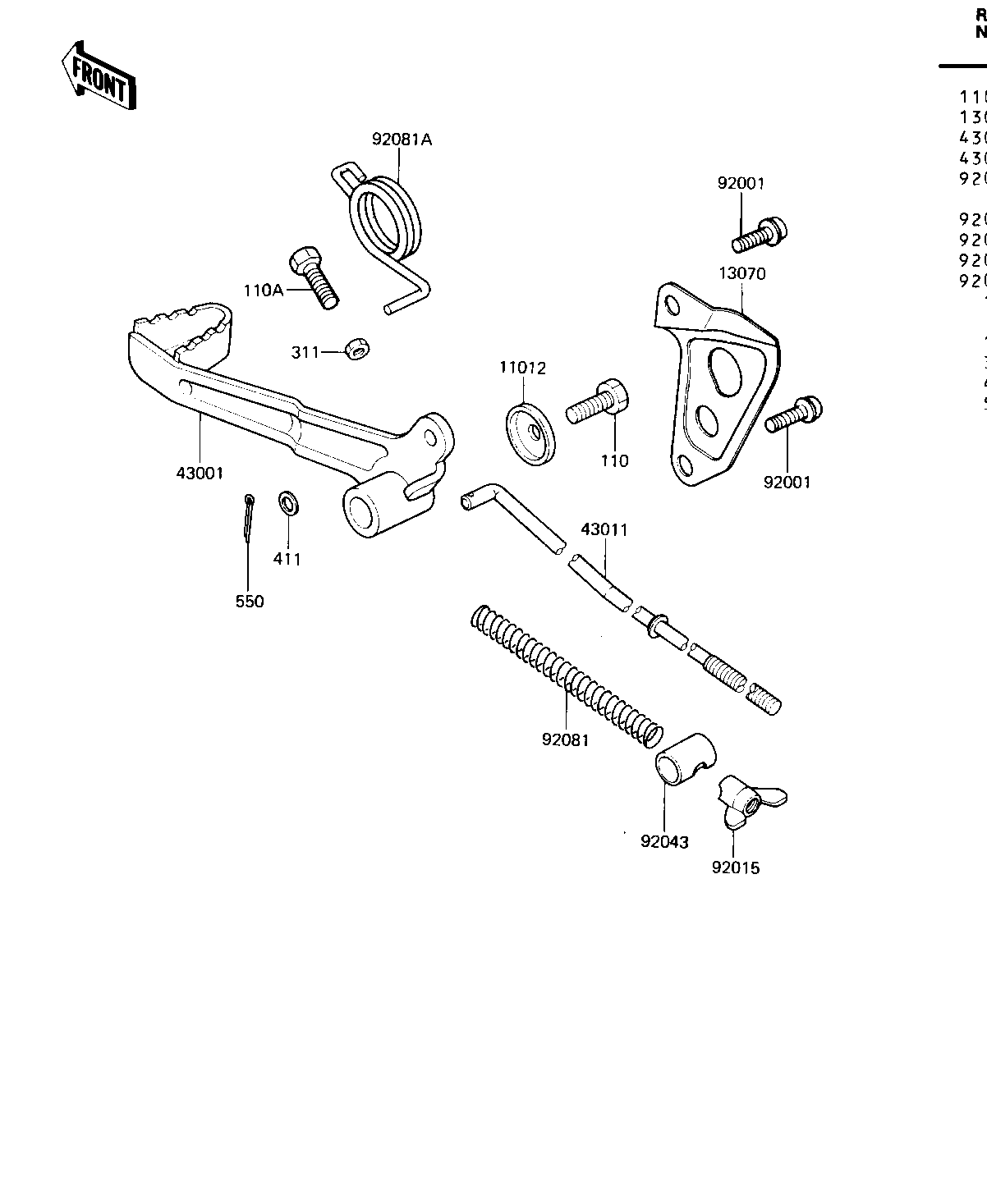

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1204 1
GUIDE,BRAKE ROD 13070 13070-1055 1
LEVER-BRAKE 43001 43001-1075 1
ROD-BRAKE 43011 43011-1045 1
SCREW,6X10 92001 92009-1286 2
NUT,WING,6M/M 92015 92015-4004 1
PIN,BRAKE 92043 92043-1024 1
SPRING,BRAKE ROD 92081 43012-001 1
SPRING 92081A 92081-1418 1
BOLT,6X10 110 112G0610 1
BOLT-UPSET,6X20 110A 112G0620 1
NUT 6MM 311 311B0600 1
WASHER PLAIN 6MM 411 411B0600 1
PIN COTTER 2.0X15 550 550D2015 1
