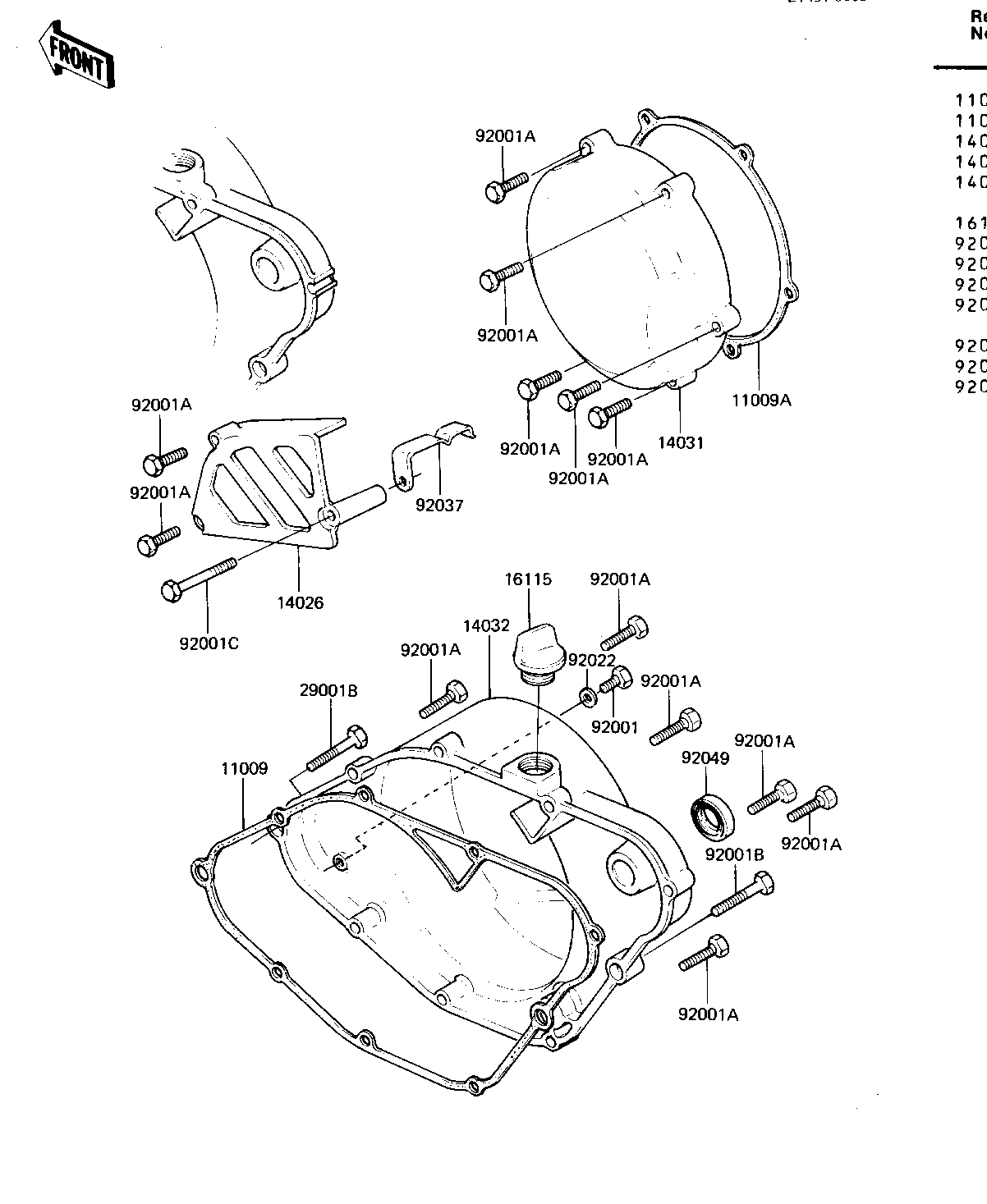

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,R.H ENG COVER 11009 11009-1171 1
GASKET,L.H ENG,COVER 11009A 11009-1172 1
COVER,CHAIN,F.BLACK 14026 14026-1027 1
COVER-GENERATOR 14031 14031-1088 1
COVER,R.H ENG,BLACK 14032 14032-1028 1
FILLER,OIL 16115 16115-018 1
BOLT,6X8 92001 92001-1626 1
BOLT-FLANGED-SMALL 92001A 132G0625 15
BOLT,6X35 92001B 92001-1632 2
BOLT,6X45 92001C 92001-1634 1
WASHER OIL PUMP BANJO 92022 92022-077 1
CLAMP,WIRING HARNESS 92037 92037-142 1
OIL SEAL SB16244 92049 92049-002 1
