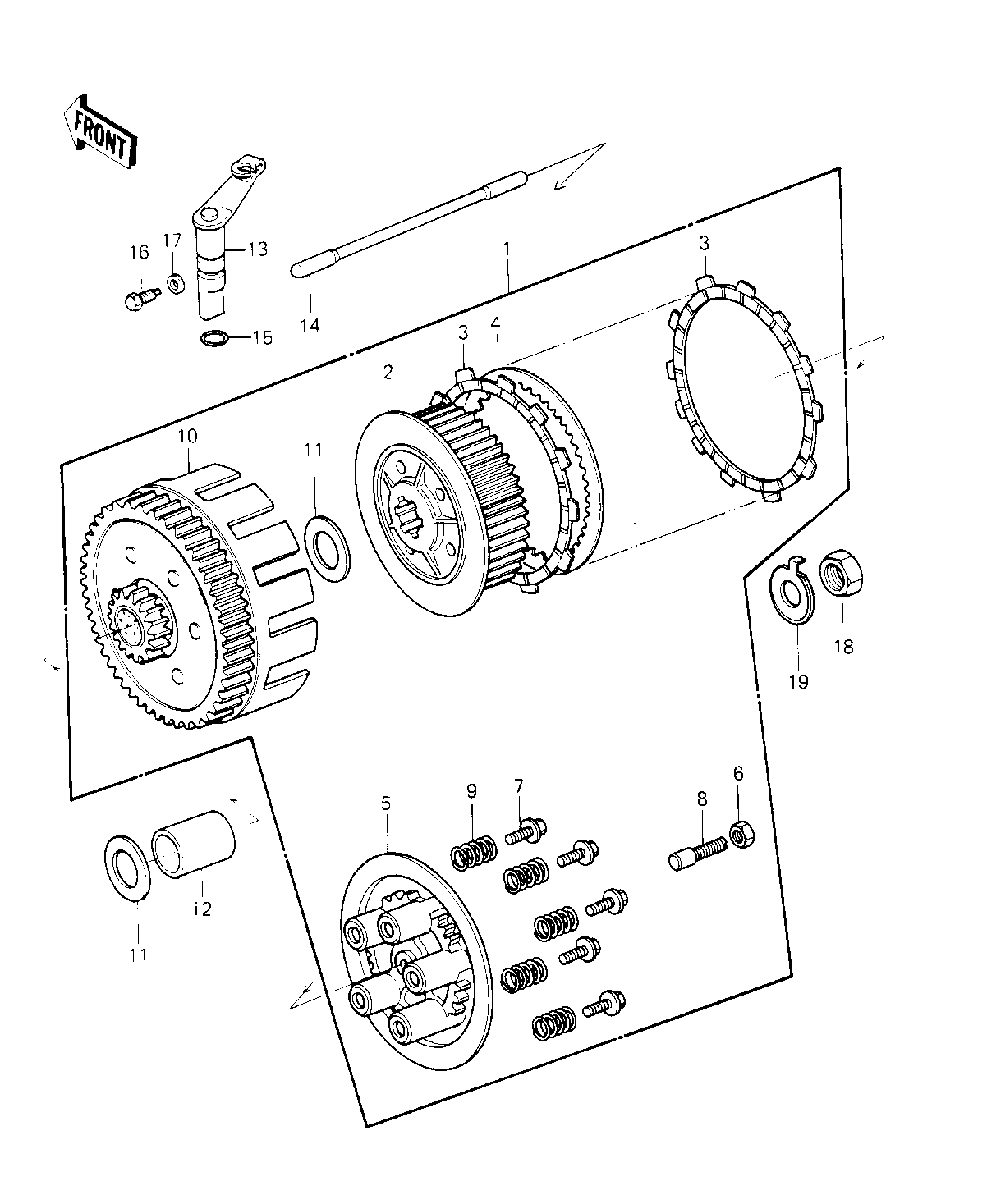

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLUTCH-ASSY 1 13081-1038 1
HUB,CLUTCH 2 13087-044 1
PLATE,CLUTCH FRICTION 3 13088-041 6
PLATE,CLUTCH STEEL 4 13089-025 5
PLATE-CLUTCH OPERATIN 5 13187-1009 1
NUT 8MM 6 318G0800 1
BOLT,CLUTCH SPR FITT 7 92001-1066 5
SCREW,SLOTTED,8X35 8 92014-017 1
SPRING,CLUTCH 9 92081-1151 5
HOUSING,CLUTCH 10 13095-1026 1
WASHER,CLUTCH THRUST 11 92022-282 2
BUSHING,CLUTCH 12 92028-1076 1
RELEASE,CLUTCH 13 13102-1006 1
ROD,CLUTCH PUSH 14 13116-1021 1
"0" RING, 10MM 15 670B2010 1
BOLT,CLUTCH RELEASE 16 92003-130 1
GASKET,R.H ENG COVER 17 92065-092 1
NUT,LOCK,16MM 18 92015-072 1
WASHER,LOCK,16M/M 19 92024-076 1
