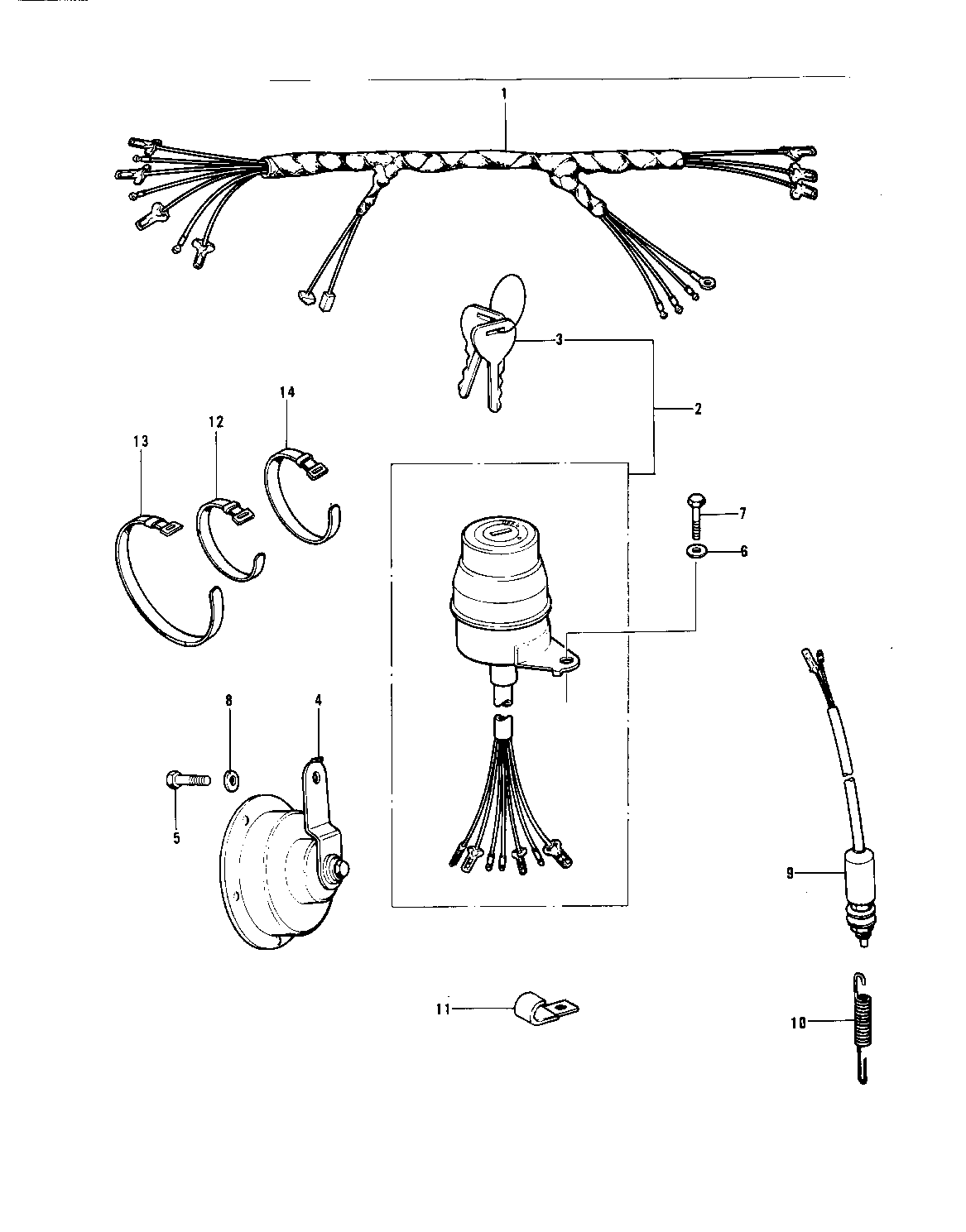

1975 KT250-A - CHASSIS ELECTRICAL EQUIPMENT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WIRING HARNESS,MAIN 1 26001-127 1
SWITCH ASSY,IGNITION 2 27005-079 1
KEY SET,#311 3 27008-050-11 1
KEY SET,#312 3 27008-050-12 1
KEY SET,#313 3 27008-050-13 1
KEY SET,#314 3 27008-050-14 1
KEY SET,#315 3 27008-050-15 1
KEY,BLANK 3 27008-1030 A.
KEY,BLANK 3 27008-1031 A.
KEY,BLANK 3 27008-1032 A.
KEY,BLANK 3 27008-1033 A.
HORN 4 27003-058 1
BOLT-UPSET 6X14 5 112B0614 1
BOLT-UPSET 6X14 5 112B0614 AL
WASHER SPRING 6MM 6 461F0600 1
BOLT-UPSET,6X12 7 112G0612 AL
BOLT-UPSET,6X12 7 112G0612 AL
WASHER SPRING 6MM 8 461F0600 1
SWITCH-BRAKE LAMP 9 27010-015 1
SPRING-BRAKE LAMP SW 10 27011-013 1
CLAMP,HARNESS 11 92037-113 1
BAND,SHORT 12 92072-030 5 L=123M/M
BAND,LONG 13 92072-032 1 L=218M/M
BAND,WIRING HARNESS 14 92072-056 2 L=186M/M
