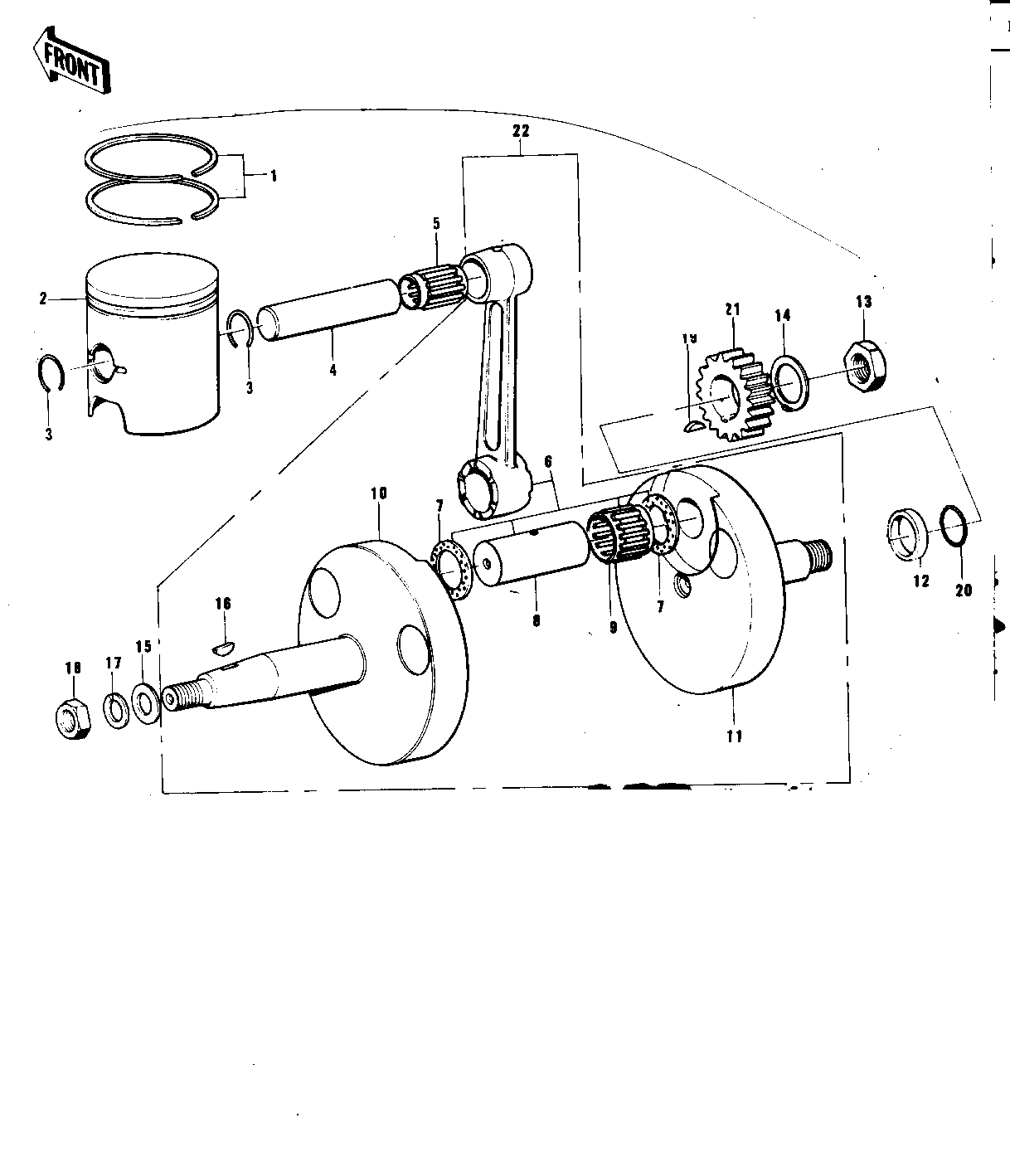

1973 F12MX - CRANKSHAFT/PISTON ('73 F12MX 450)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
RING SET,STD 1 13008-045 1
PISTON,STD 2 13001-060 1
CIRCRIP,PISTON PIN 3 92036-024 2
PIN-PISTON 4 13002-024 1
BEARING-SMALL END,KT 5 13033-1055 1
CONNECTING ROD SET 6 13044-027 1
WASHER,CONROD SIDE 7 92026-093 2
PIN,CRANK 8 13035-032 1
BEARING,BIG END 9 13034-035 1
CRANKSHAFT,L.H 10 13037-054 1
CRANKSHAFT,R.H 11 13038-050 1
COLLAR,CRANKSHAFT 12 92027-190 1
NUT 18MM 13 92015-019 1
WASHER LOCK 18MM 14 92024-015 1
WASHER-PLAIN,14MM 15 92022-172 1
WOODRUFF KEY 16 92038-001 1
WASHER SPRING 14MM 17 461F1400 1
NUT 14MM 18 92015-043 1
WOODRUFF KEY 19 510A5100 1
"0" RING,22MM 20 670B3022 1
GEAR,PRIMART 21 13121-024 1
CRANKSHAFT ASSY 22 13036-042 1
