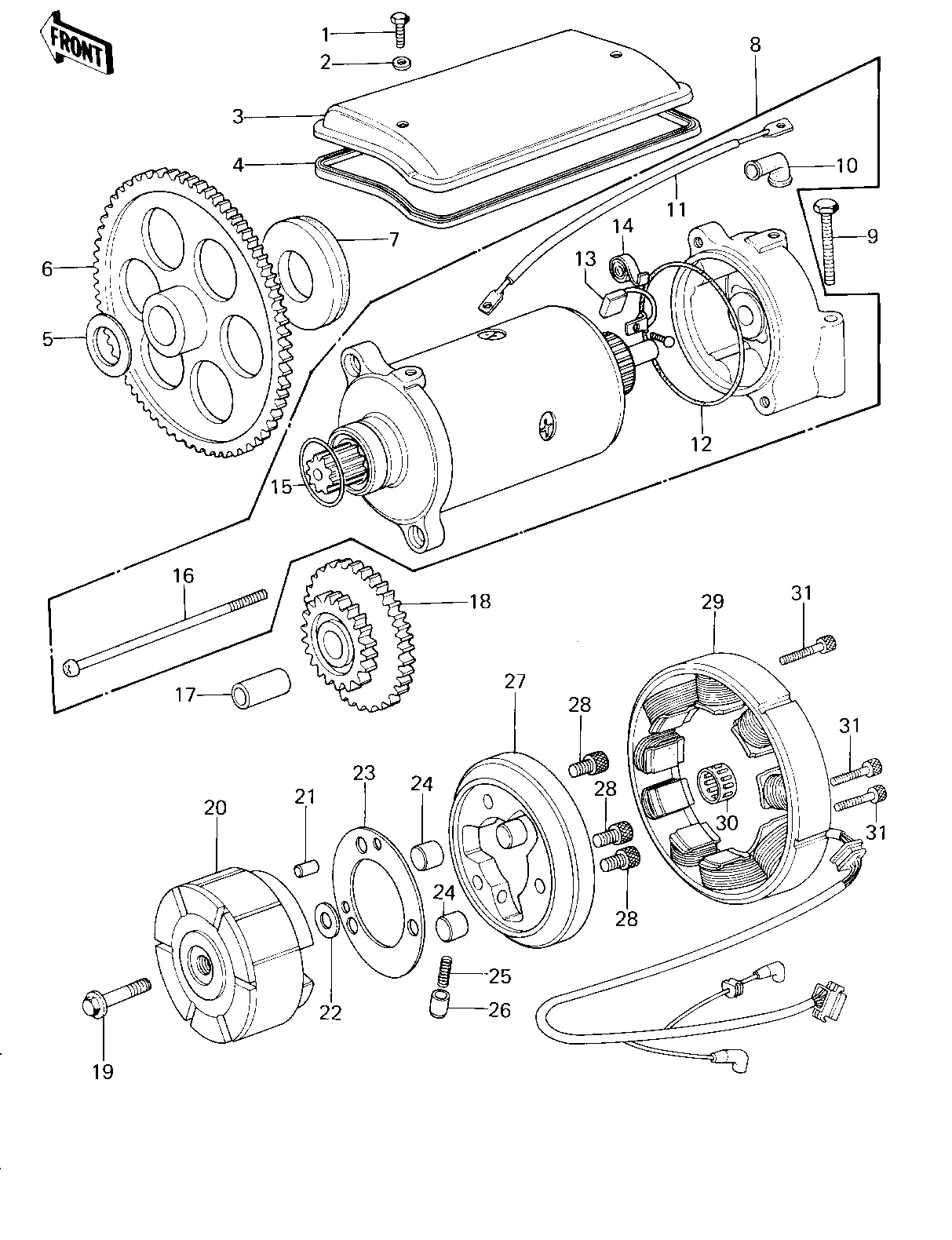

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT (6X10) 1 110R0610 2
WASHER,PLAIN,6MM 2 410D0600 2
COVER,STARTING MOTOR 3 21165-001 1
GASKET,START MOTOR C 4 21166-001 1
WASHER 22.1X30.7X2.0 5 92026-091 1
GEAR,STARTING CLUTCH 6 21167-003 1 71T
DAMPER RUBBER 6.3T 7 92075-192 AR
DAMPER RUBBER 7.3T 7 92075-193 AR
DAMPER RUBBER 8.3T 7 92075-194 AR
STARTER-ELECTRIC 8 21163-1019 1
BOLT,EXCLUSIVE 9 92001-1456 2
GROMMET,CORD 10 21017-017 1
WIRE,STARTER MOTOR 11 26010-055 1
"0" RING,STARTING MT 12 21027-003 1
CARBON BRUSH 13 21039-003 2
SPRING,CARBON BRUSH 14 21040-003 2
"0" RING,STARTING MT 15 21027-004 1
SCREW,PAN HEAD,6X110 16 21015-005 2
PIN-PISTON 17 13002-007 1
GEAR,STARTING MOTOR 18 21167-002 1
BOLT,10X40 19 92001-1201 1
ROTOR 20 21007-1005 1
PIN,DOWEL,6X22 21 551A0622 1
WASHER 22X35.5X1.OT 22 92026-092 1
PLATE,CLUTCH STARTER 23 92026-112 1
PIN 24 92122-001 3
SPRING 25 92081-110 3
PIN 26 92043-087 3
CLUTCH ASSY,STARTING 27 13193-1006 1
BOLT 28 120P0816 3
STATOR ASSY 29 21076-023 1
BEARING,K222620 30 92046-033 1
BOLT-SOCKET,6X35,BLA 31 120S0635 3
