153
311
13280
14090
35011
39159
42034
92022
92033
92045
92049
92049
92050
92050A
92072
92072
92075
92200

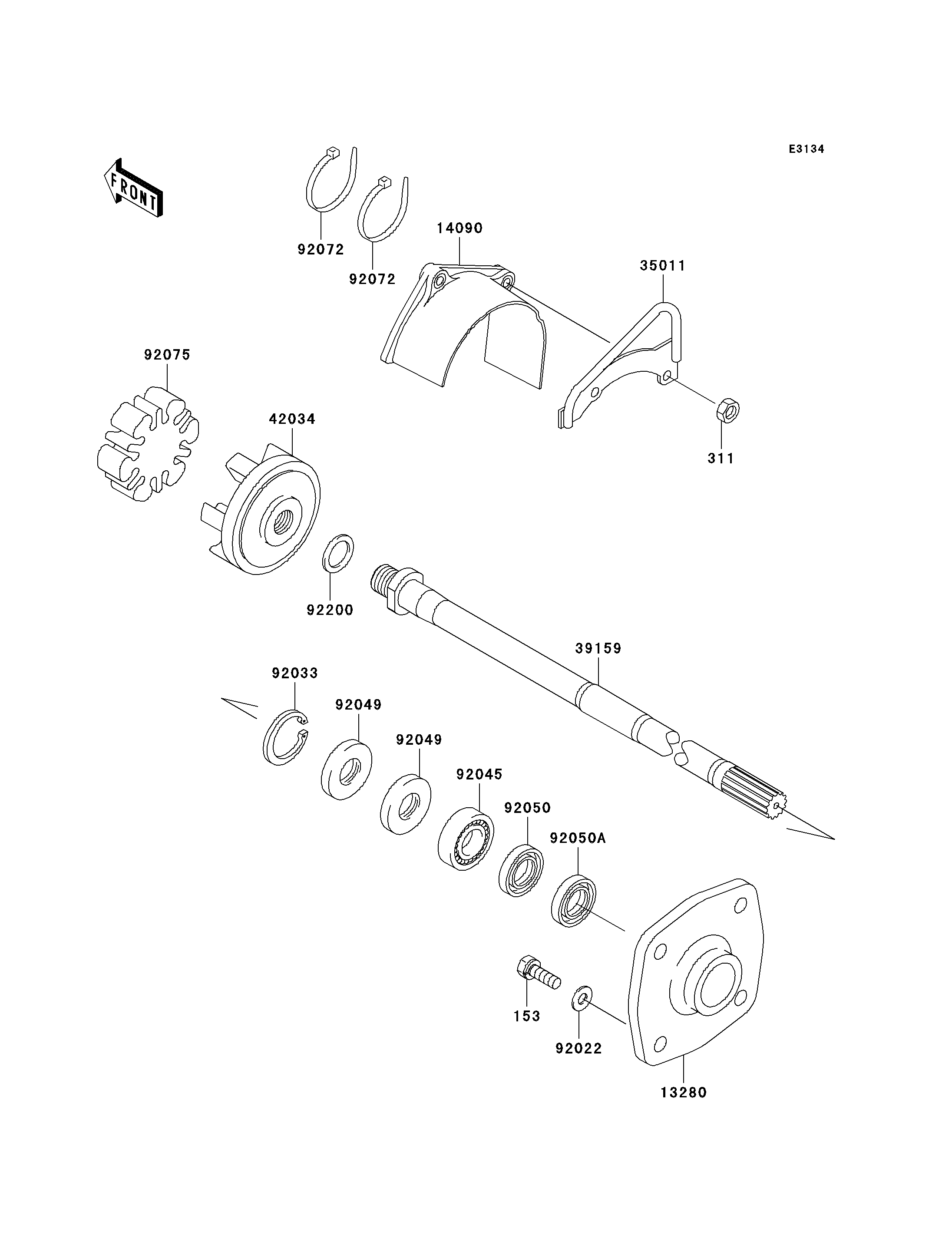

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WS-SMALL,8X25 153 153R0825 4
NUT-HEX,6MM 311 311R0600 2
HOLDER 13280 13280-3756 1
COVER,COUPLING 14090 14090-3761 1
STAY 35011 35011-3704 1
SHAFT-DRIVE 39159 39159-3738 1
COUPLING 42034 42034-3707 1
WASHER,8.2X18X1.5 92022 92022-1964 4
RING-SNAP,42MM 92033 92033-3713 1
BEARING-BALL,60042RD 92045 92045-0113 1
SEAL-OIL,S620426 92049 92049-3707 2
SEAL-OIL,SCY20368 92050 92050-502 1
SEAL-OIL,SC20367 92050A 92050-503 1
BAND,L=188.85 92072 92072-0105 2
DAMPER,COUPLING 92075 92075-520 1
WASHER,20X28X2.0 92200 92200-3731 1
