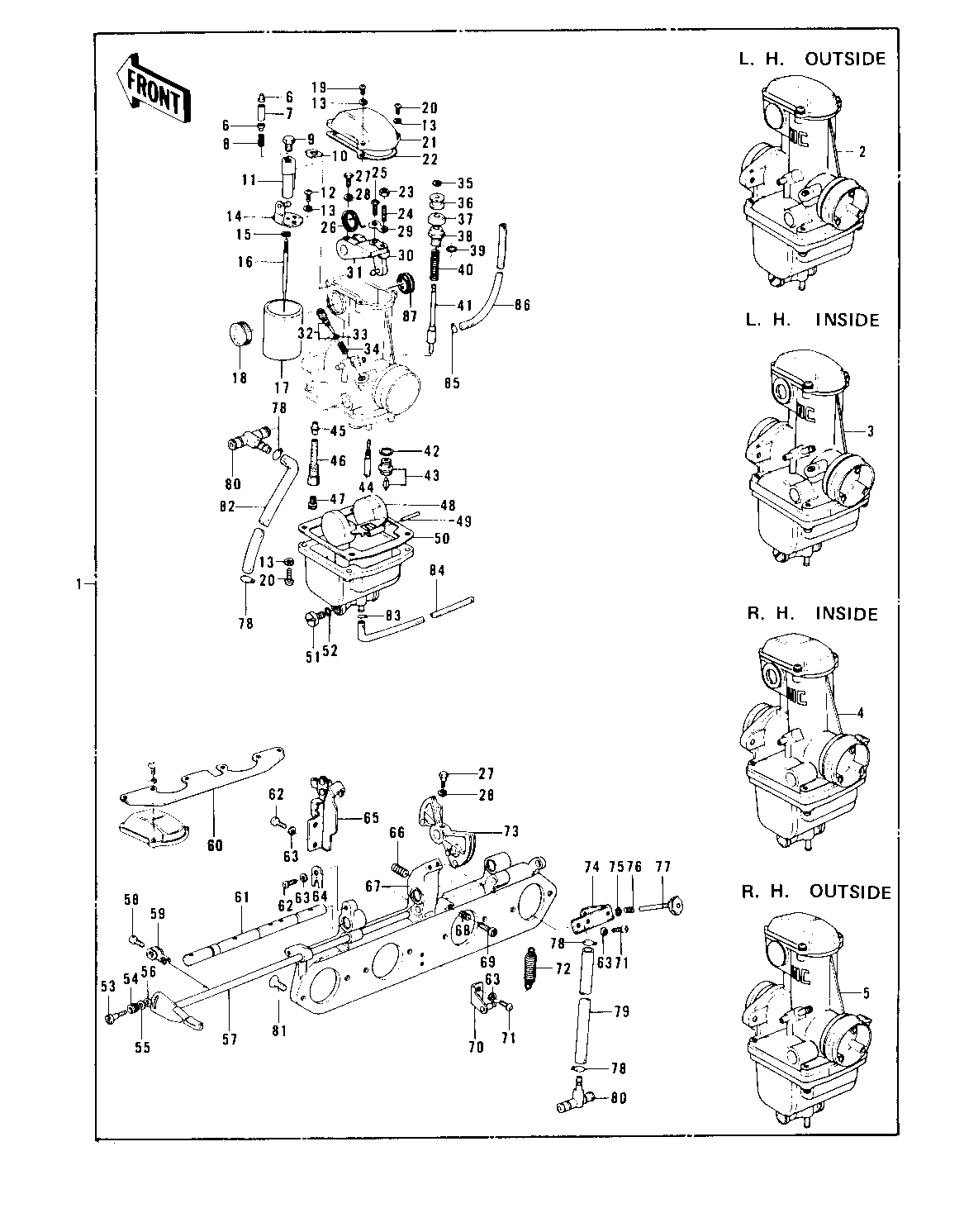

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY 1 16001-255 1
CARBURETOR,L.H OUTSI 2 16001-268 1
CARBURETOR,L.H INSID 3 16001-269 1
CARBURETOR,R.H INSID 4 16001-270 1
CARBURETOR,R.H OUTSI 5 16001-271 1
SEAT,SPRING 6 16057-002 8
HOLDER,THROTTLE SHAF 7 16065-017 4
SPRING,A 8 16040-004 4
PIN 9 16067-008 4
WASHER,LOCK,A 10 16054-003 4
SHAFT,THROTTLE VALVE 11 16052-003 4
SCREW,FLOAT CHAM FIT 12 16033-027 8
WASHER SPRING 4MM 13 461F0400 36
PLATE,THROTTLE VALVE 14 16007-018 4
CIRCLIP 15 16008-010 4
JET NEEDLE,5DL3 16 16009-071 4
VALVE,THROTTLE CAL,5 17 16025-075 4
CAP,RUBBER 18 16039-042 2
SCREW-PAN-WS-CROS 19 223B0414 6
SCREW FLOAT CHAMBER 20 16033-009 22
TOP,MIXING CHAMBER 21 16005-027 4
GASKET,CHAMBER TOP 22 16019-031 4
NUT,5MM 23 16003-013 4
SCREW,LEVER 24 16033-025 4
BOLT,4X16 25 16067-009 4
SPRING,LEVER 26 16040-021 4
BOLT,HEX HEAD,5X14 27 16067-006 5
WASHER SPRING 5MM 28 461F0500 5
WASHER,PLATE 29 16054-008 4
LEVER,THROTTLE 30 16068-013 4
UNAVAILABLE IN PRICE BOOK 31 16088-012 4
SCREW,PILOT ADJUSTIN 32 16014-1004 4
"O" RING 33 16038-022 4
SPRING-THR STOP SCRE 34 16022-007 4
CIRCLIP 35 16076-003 4
COLLAR 36 16073-014 4
CAP,STARTER PLUNGER 37 16039-015 4
CAP,STARTER PLUNGER 38 16012-015 4
"O" RING,9MM 39 670B1509 4
SPRING,STARTER PLUG 40 16013-008 4
PLUNGER,STARTER 41 16016-017 4
WASHER FLOAT VLV SEA 42 16029-004 4
FLOAT VALVE ASSY 43 16030-027 4
PILOT JET,#17.5 44 92064-042 4
NEEDLE JET,0-6 45 16017-093 4
HOLDER,NEEDLE JET 46 16047-004 4
JET-MAIN NO 115R 47 92063-076 4 STD
MAIN JET,#110R 47 92063-1038 (4
JET-MAIN NO 112.5R 47 92063-075 (4
JET-MAIN NO 117.5R 47 92063-077 (4
MAIN JET NO 120R 47 92063-078 (4
FLOAT 48 16031-031 4
FLOAT PIN 49 16032-003 4
GASKET,FLOAT CHAMBER 50 11009-1563 4
COVER,MAIN JET 51 16049-005 4
"0" RING,MAIN JET CO 52 16038-016 4
SCREW 53 16046-005 1
SPRING,F 54 16040-009 1
WASHER,PLAIN 55 16039-020 1
WASHER,PLAIN 56 16039-019 1
SHAFT,STARTER PLUNGE 57 16041-016 1
SCREW,PAN HEAD,5X7 58 16046-007 4
LEVER,STARTER PLUNGE 59 13168-1026 4
PLATE,CARB CONNECTIO 60 16065-040 1
SHAFT,CARB CONNECTIO 61 16041-017 1
SCREW,PAN HEAD,5X14 62 16033-016 5
WASHER SPRING 5MM 63 461F0500 7
PLATE,SHAFT STOPPER 64 16055-012 1
BRACKET,CABLE PULLY 65 16077-014 1
SPRING,CABLE PULLY 66 16040-022 1
HOLDER,CARB MOUNTING 67 16065-039 1
SPRING,THROTTLE ADJS 68 16022-010 1
ADJUSTER,THROTTLE LE 69 16021-020 1
BRACKET,CABLE PULLY 70 16077-012 1
SCREW,PAN HEAD,5X14 71 16033-016 2
SPRING,CABLE PULLY 72 16040-020 1
PULLY,THROTTLE CABLE 73 16068-011 1
HOLDER,THROTTLE SCRE 74 16077-013 1
WASHER LOCK 5MM 75 464H0500 1
SPRING,THR STOP SCRE 76 16022-009 1
SCREW,THROTTLE STOP 77 16021-028 1
CLAMP-PIPE 78 92037-072 4
HOSE,FUEL 79 92059-144 1
JOINT,FUEL PIPE 80 16046-002 2
SCREW,6X14 81 16033-029 8
PIPE,OVER FLOW 82 92059-085 1
CLAMP,OVERFLOW HOSE 83 92037-173 4
HOSE,FUEL OVERFLOW 84 92059-134 4
CLAMP,BREATHER HOSE 85 92037-174 2
HOSE,BREATHER 86 92059-135 2
GROMMET,CARB 87 92071-102 6
