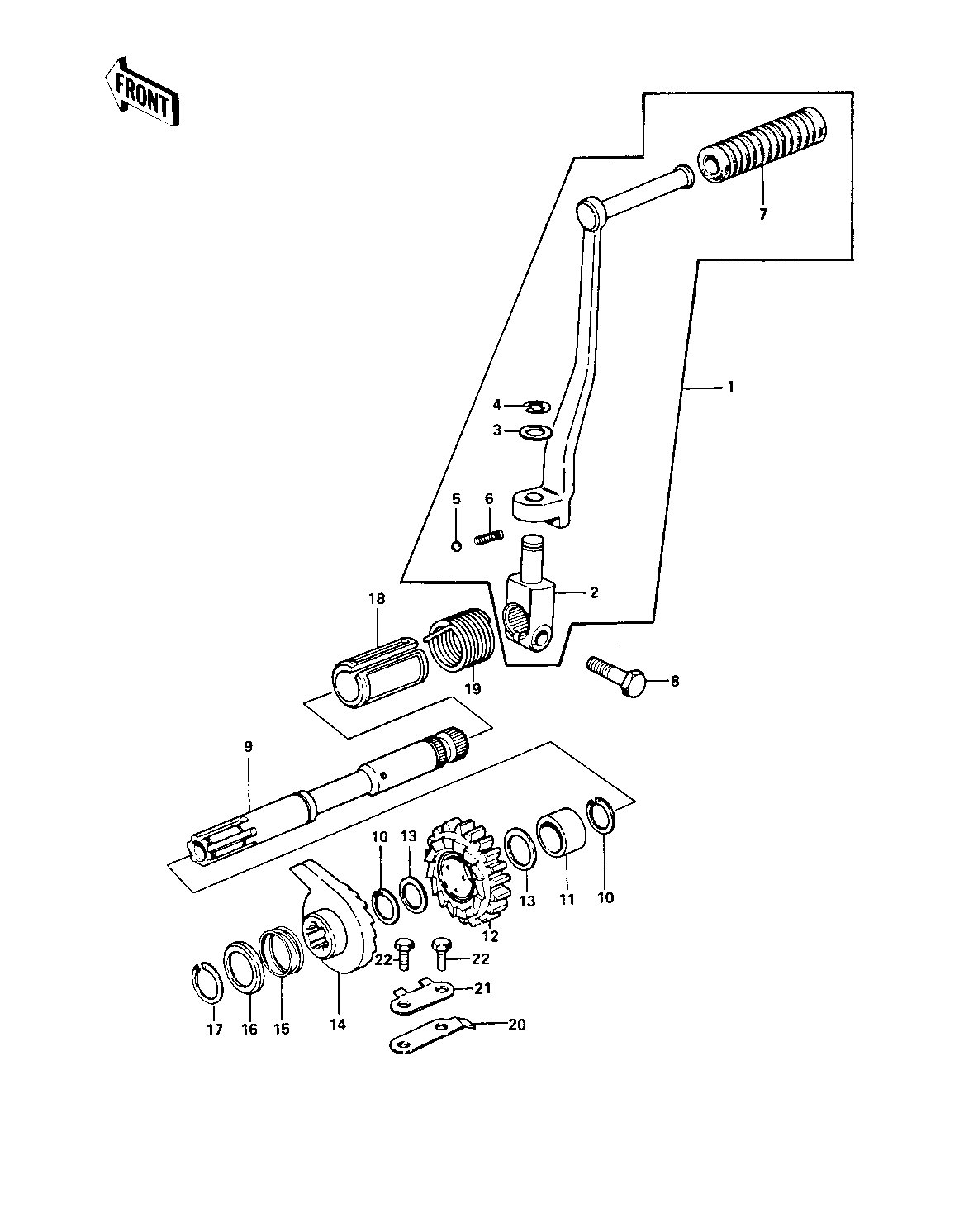

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PEDAL,KICKSTARTER 1 13058-044 1
BOSS-KICK PEDAL 2 13061-014 1
WASHER BRAKE PEDAL 3 92022-085 1
CIRCLIP 10MM 4 482J0100 1
BALL STEEL 1/4' 5 600A0800 1
SPRING KICK PEDAL 6 92081-020 1
RUBBER KICK PEDAL 7 13063-004 1
BOLT-HEX HEAD,10X25 8 114B1025 1
SHAFT,KICKSTARTER 9 13066-029 1
CIRCLIP,25MM 10 92033-025 2
COLLAR,KICKSHAFT 11 92028-126 1
GEAR,KICKSTARTER 19T 12 13068-028 1
WASHER,PLAIN,22MM 13 92022-207 1
RATCHET,KICK SHAFT 14 13078-011 1
SPRING RATCHET 15 92081-104 1
CAP,KICKSTARTER 16 92102-008 1
CIRCLIP,19MM 17 480J1900 1
GUID,KICK SHAFT 18 13070-005 1
SPRING,KICKSTARTER 19 92082-004 1
STOPPER,KICKSTARTER 20 13072-012 1
WASHER-LOCK 21 92024-036 1
BOLT-UPSET 6X14 22 112B0614 2
