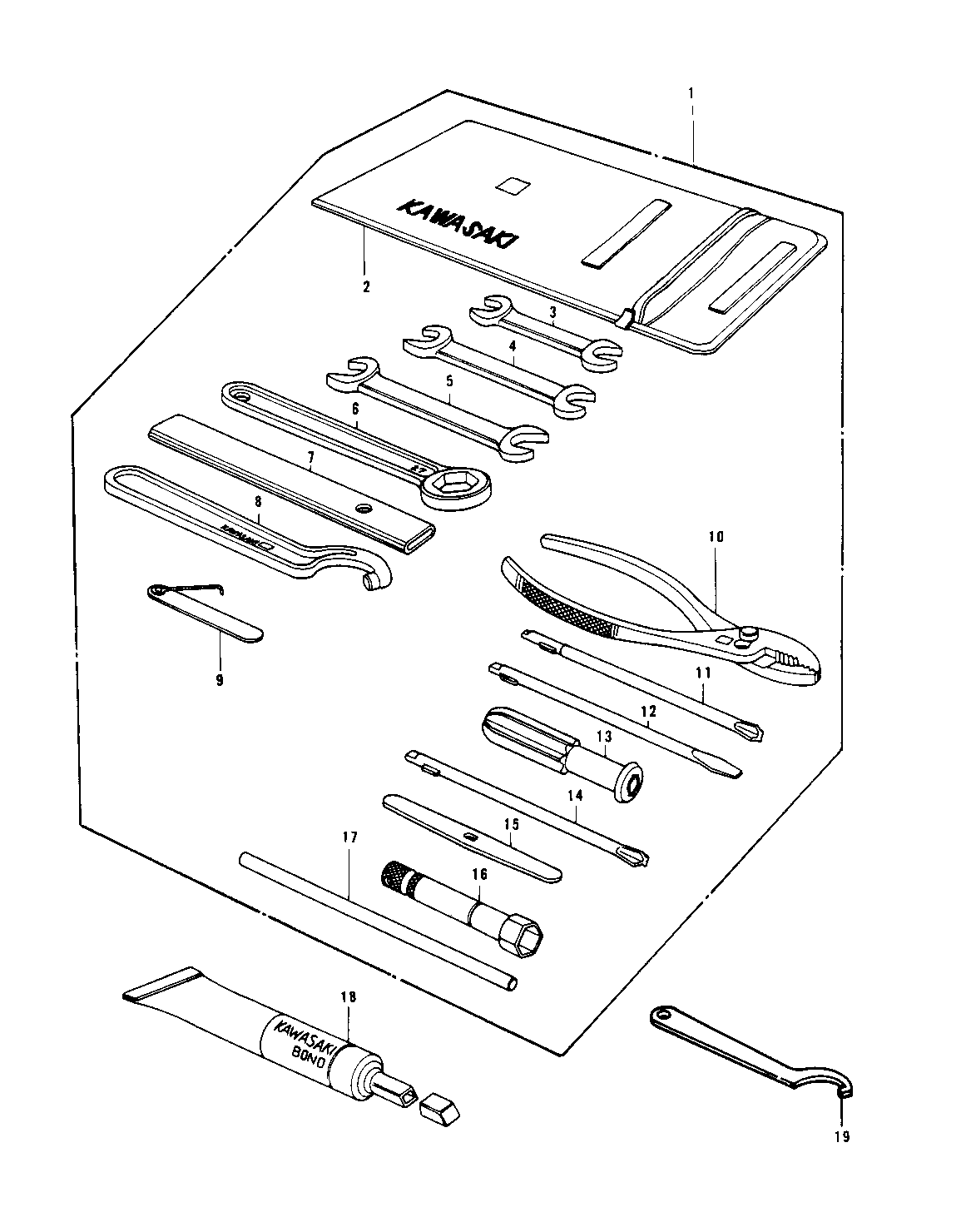

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TOOL KIT 1 56007-049 1
BAG,TOOL 2 56008-006 1
WRENCH,OPEN,8X10 3 92126-001 1
WRENCH,OPEN END,12X13 4 92126-002 1
TOOL-WRENCH,OPEN END, 5 92126-003 1
TOOL-WRENCH,BOX END,2 6 92109-009 1
TOOL-WRENCH,BOX END,2 7 92111-004 1
8 92108-007 1
GAUGE,THICKENSS 9 92128-001 1
PLIERS,160MM 10 92112-003 1
TOOL-DRIVER 11 92107-006 1
12 92107-007 1
13 92106-004 1
14 92107-008 1
LEVER,SCREW DRIVER 15 92111-006 1
WRENCH,SPARK PLUG 16 92108-008 1
BAR,SPARK PLUG WRENCH 17 92111-005 1
LIQUID GASKET 18 92104-002 TU
ADJUSTER,REAR SHOCK 19 92108-014 1
