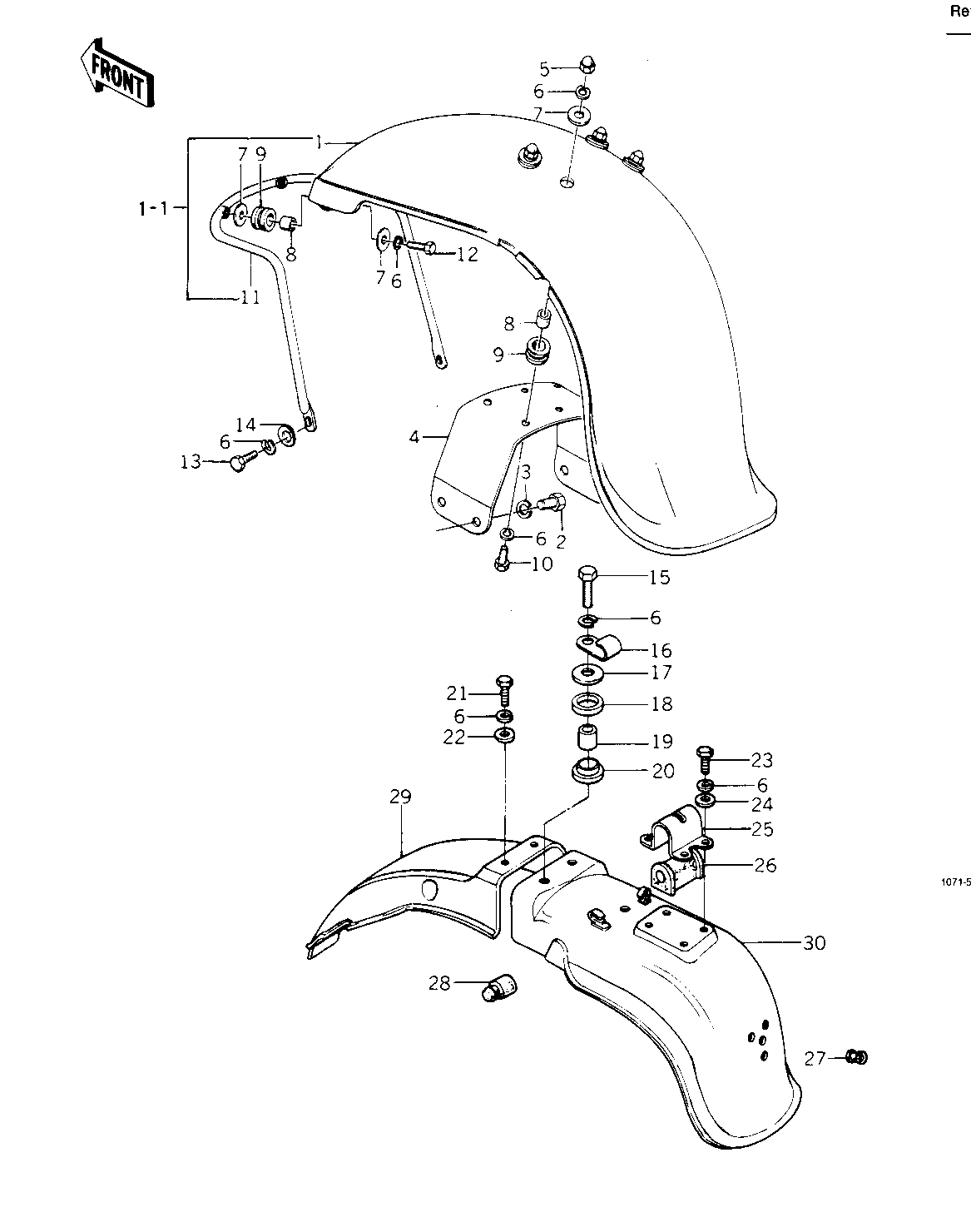

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-ASSY,FR.WHITE 1 35001-5501 1 NO LONGER AVAILABLE
FENDER-FR,WHITE 1 35004-4004-8C AL USE WITH 35011-4001
FENDER-ASSY,FR.WHITE 1-1 35001-5501 AL INCL. 35004-4004-8C &
BOLT,8X20 2 115G0820 4
WASHER SPRING 8MM 3 461F0800 4
BRACE,FRONT FENDER 4 35009-1001 1
NUT-6MM 5 322N0600 4
WASHER SPRING 6MM 6 461F0600 20
WASHER-PLAIN 7 92022-193 8
COLLAR 6.8X10X10.5 8 92027-120 6
GROMMET 9 92071-046 6
BOLT-UPSET 10 112G0625 4
STAY,FRONT FENDER 11 35011-1003 1 USE WITH 35004-1003-8C
STAY,FR FENDER,FR 11 35011-4001 (1 USE WITH 35004-4004-8C
BOLT 6X22 12 112B0622 2
BOLT-UPSET 6X14 13 112B0614 2
WASHER PLAIN 6MM 14 410B0600 2
BOLT-UPSET 15 112G0625 2
CLAMP,WIRING HARNESS 16 21126-008 1
WASHER,PLAIN,7MM 17 92022-228 2
DAMPER RUBBER 18 92075-175 2
COLLAR,REAR FENDER 19 92027-162 2
RUBBER,FENDER COVER 20 92075-174 2
BOLT-UPSET 6X14 21 112B0614 2
WASHER PLAIN 22 92022-024 2
BOLT-UPSET,6X16 23 112G0616 4
WASHER PLAIN 6MM 24 411B0600 4
BRACKET,REAR FENDER 25 35026-006 1
DAMPER RUBBER,RR FEN 26 92075-132 1
GROMMET HARNESS 10MM 27 92071-019 1
DAMPER RUBBER,RR FEN 28 92075-135 2
FENDER-RR 29 35022-154 1 FRONT
FENDER-RR,WHITE 30 35022-136-8C 1 REAR
