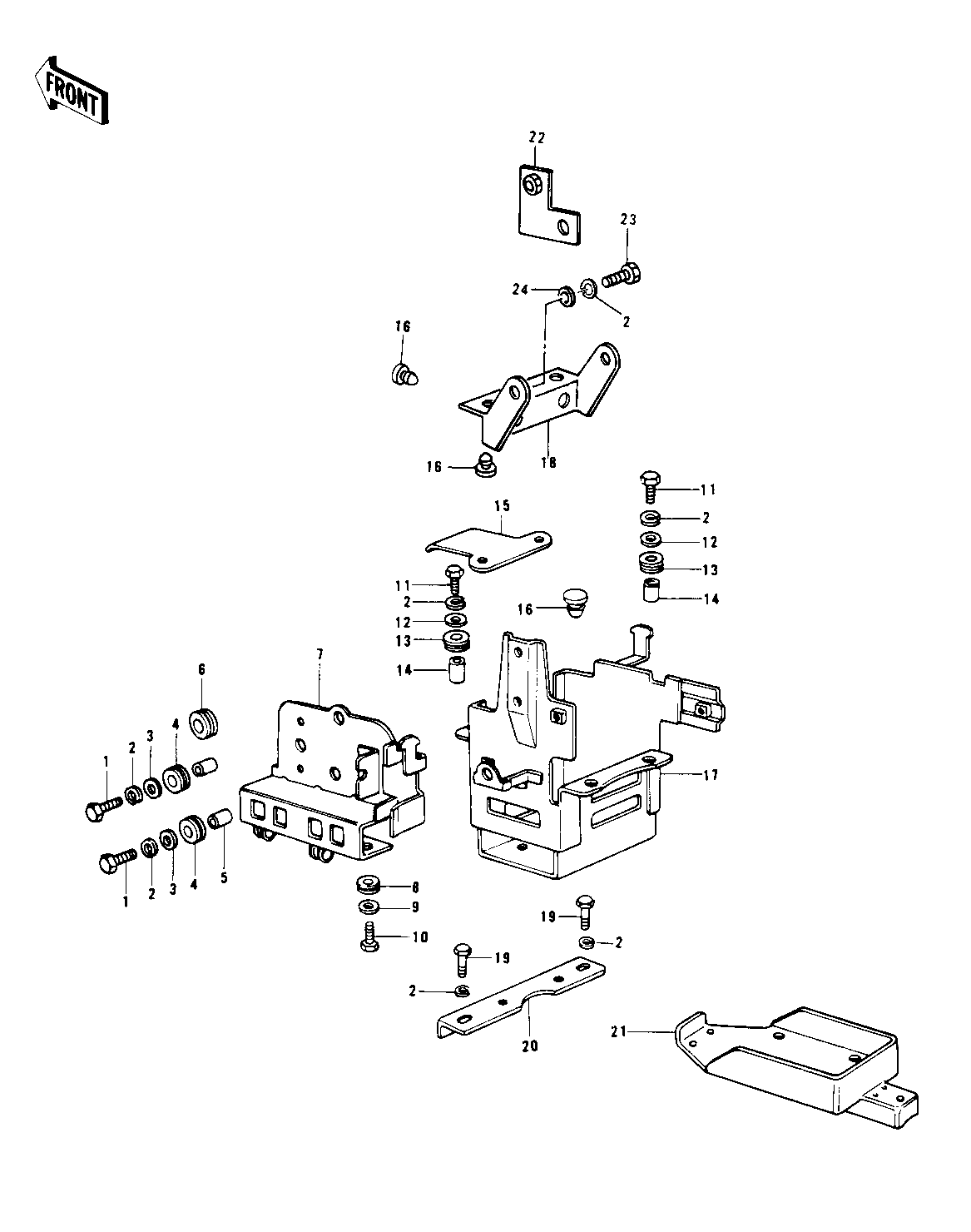

1978 Police 1000 - BATTERY CASE/TOOL CASE ('78 C1/C1A)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X20 1 112G0620 2
WASHER SPRING 6MM 2 461F0600 10
WASHER 6.5X22X1.6T 3 92022-237 2
DAMPER RUBBER 4 92075-149 2
COLLAR 5 92027-165 2
DAMPER RUBBER 6 92075-051 1
BRACKET,BASE 7 32129-013 1
DAMPER RUBBER,BATTER 8 92075-161 2
WASHER PLAIN 8MM 9 410B0800 2
BOLT,HEAX HEAD,6X14 10 92001-115 2
BOLT-UPSET 11 112G0630 4
WASHER,6.5X16X2 12 92022-1565 4
DAMPER RUBBER,BTT CA 13 92075-146 4
COLLAR 6.8X10X14.5 14 92027-156 4
STAY,AIR CLEANER 15 32105-007 1
DAMPER RUBBER 16 92075-078 10
CASE,BATTERY 17 32097-044 1
BAND,BATTERY 18 32100-100 1
BOLT-UPSET,6X16 19 112G0616 2
PLATE 20 32113-004 1
CASE,TOOL 21 32098-1001 1
BRACKET,HAZARD REGLT 22 11034-1045 1
BOLT-UPSET,6X12 23 112G0612 2
WASHER PLAIN 6MM 24 411B0600 2
