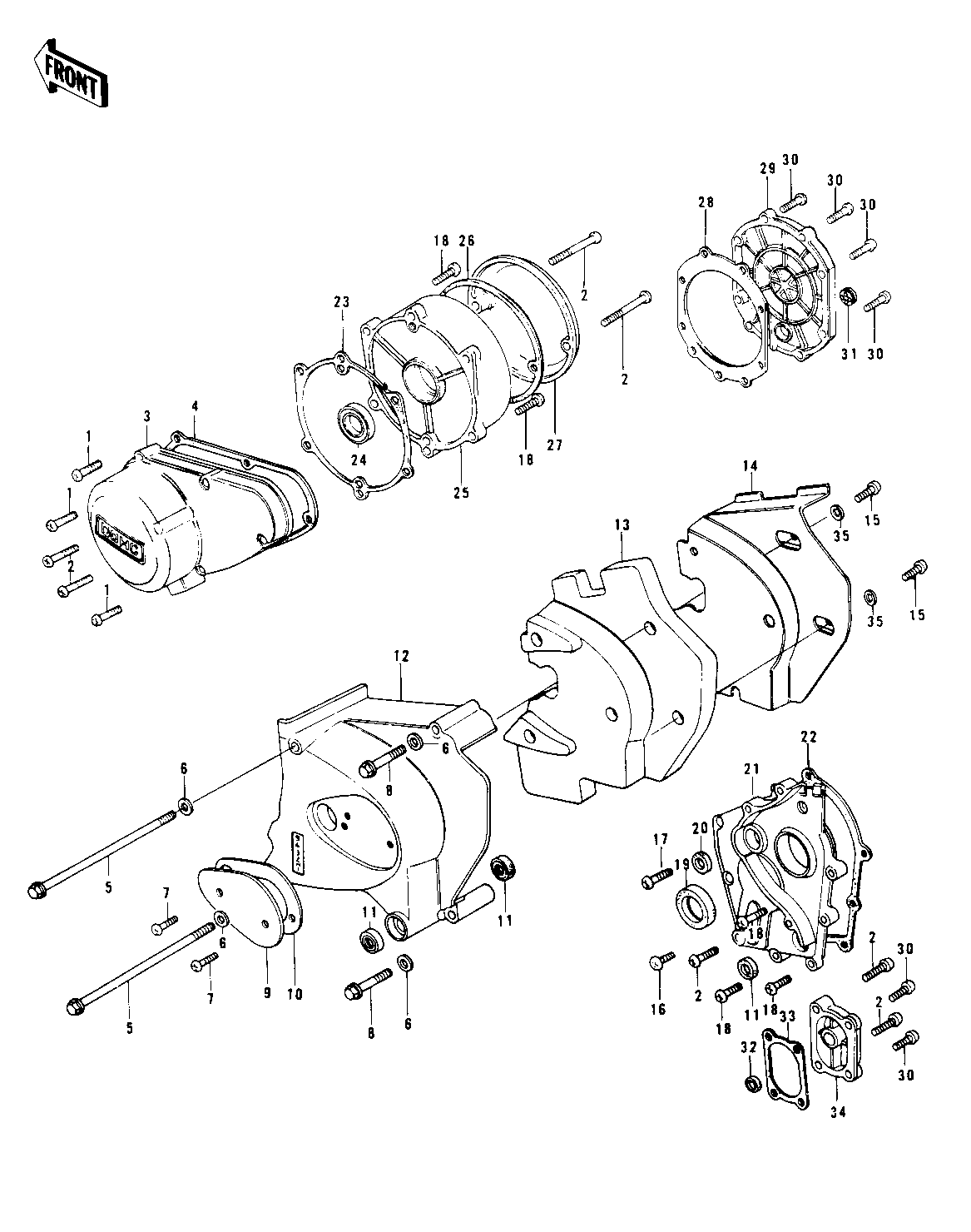

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 6X30 1 220B0630 7
SCREW PAN HEAD 6X40 2 220B0640 8
COVER,L.H ENGINE 3 14031-100-80 1 BUFF FINISH
GASKET,GENERATOR COV 4 11060-1075 1
BOLT-UPSET,6X125 5 112G06125 2
WASHER PLAIN 6MM 6 410B0600 4
SCREW PAN HEAD 6X16 7 220B0616 2
BOLT,6X70 8 110G0670 2
COVER,OIL PUMP 9 14026-012 1
GASKET,CHAIN COVER 10 14045-015 1
OIL SEAL SB12205 11 92049-004 3
COVER,FRONT CHAIN 12 14026-039-80 1 BUFF FINISH
ARRESTER,SOUND 13 92075-314 1
COVER,SOUND ARRESTER 14 14024-012 1
SCREW PAN HEAD 6X10 15 220B0610 4
SCREW PAN HEAD 6X60 16 220B0660 1
SCREW PAN HEAD 6X28 17 220B0628 1
SCREW PAN HEAD 6X22 18 220B0622 11
OIL SEAL SC325210 19 92050-024 1
OIL SEAL,TC7187 20 92050-048 1
COVER,TRANSMISSION 21 14025-1106 1
GASKET,MISSION COVER 22 14058-004 1
GASKET,RH ENGINE COV 23 11060-1071 1
OIL SEAL,S25407R 24 92050-047 1
COVER,R.H ENGINE 25 14032-083 1
GASKET,POINT CAP 26 14050-006 1
COVER,BREAKER POINT 27 14027-023-80 1
GASKET,CLUTCH 28 14046-024 1
COVER,CLUTCH 29 14032-121 1
SCREW PAN HEAD 6X25 30 220B0625 11
GAUGE,OIL LEVEL 31 52015-004 1
OIL SEAL,SC22325 32 92049-1048 1
GASKET,KICK COVER 33 14046-025 1
COVER,KICK SHAFT,BAR 34 14032-075-2H 1 BARREL
WASHER PLAIN 6MM 35 411B0600 4
