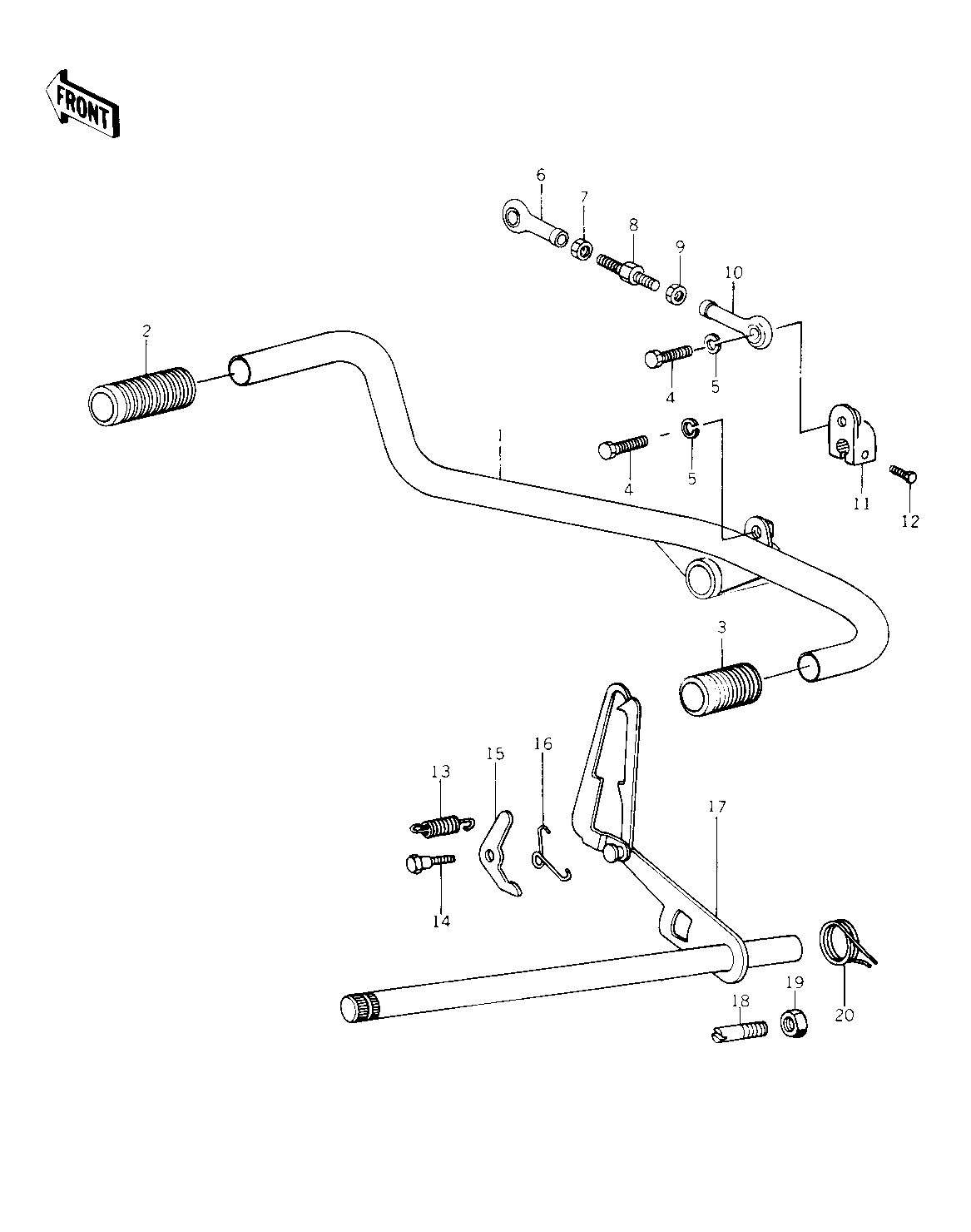

1978 Police 1000 - GEAR CHANGE MECHANISM ('78 C1/C1A)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PEDAL, GEAR CHANGE 1 13242-1004 1
RUBBER KICK PEDAL 2 13063-004 1
DAMPER RUBB,GEAR CHN 3 92075-1021 1
BOLT-SMALL-UPSET 8X2 4 115G0825 2
WASHER SPRING 8MM 5 461F0800 2
ROD END,TIE LH FEMAL 6 39112-1004 1
NUT,LH THREAD 7 92015-1006 1
BOLT,GEAR CHG LINKAG 8 92001-1038 1
NUT,RH THREAD 9 92015-1005 1
ROD END,TIE RH FEMAL 10 39112-1003 1
LEVER,CHANGE 11 13156-1007 1
BOLT-UPSET,6X20 12 112G0620 1
SPRING CHNG DRUM LEV 13 92081-051 1
LEVER,GEAR CHNG DRUM 15 13168-024 1
SPRING,KICK PAWL 16 92083-018 1
LEVER ASSY GEAR CHNG 17 13161-029 1
PIN CHANGE PEDAL SPR 18 92043-057 1
NUT 8MM 19 312B0800 2
SPRING,CHG PEDL RTRN 20 92083-028 1
