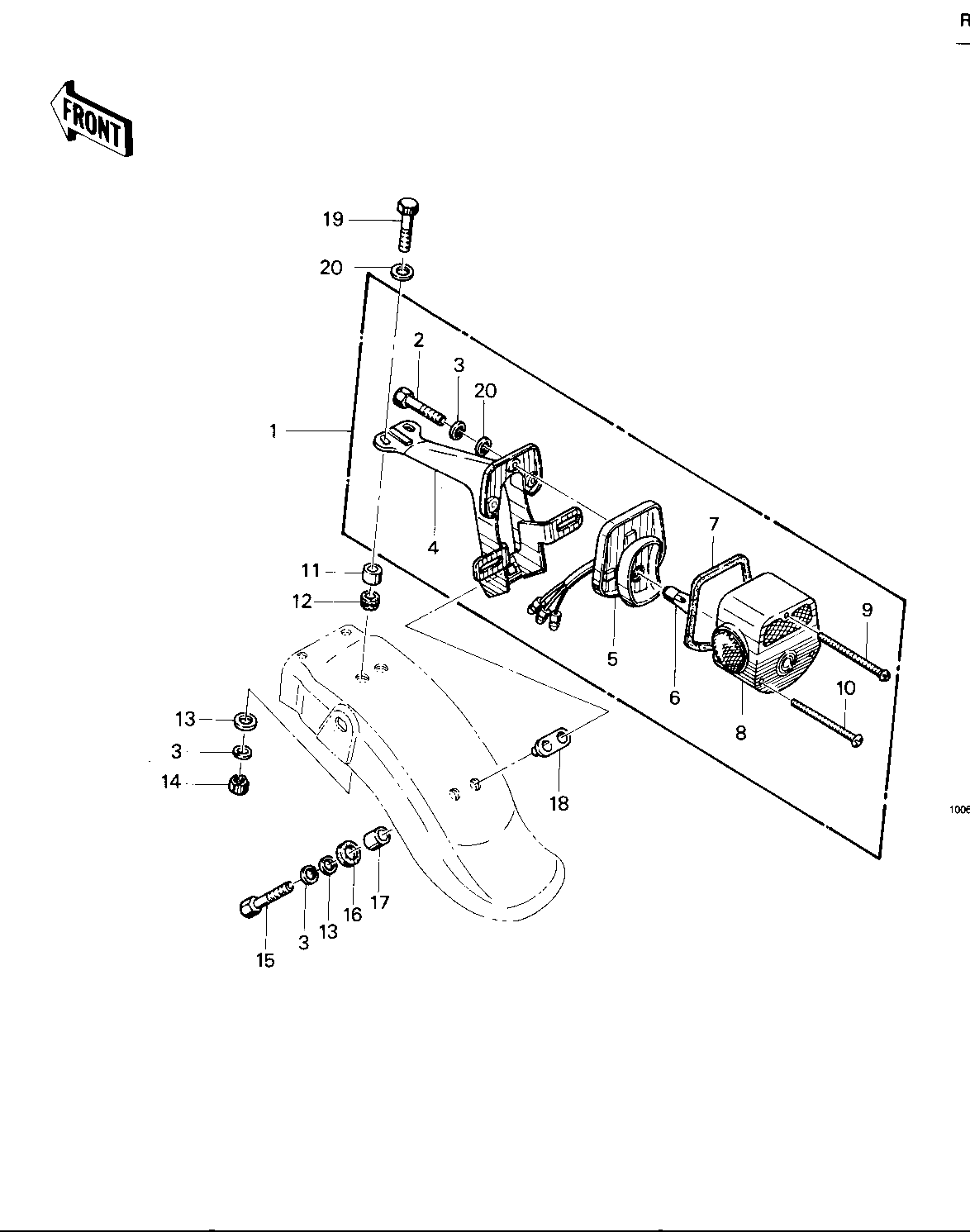

1976 KZ400-D3 - TAILLIGHT ('76 -'77 KZ400 - D3/D4)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LIGHT ASSY TAIL BLACK 1 23024-059-10 1 BLACK
BOLT-UPSET 6X14 2 112B0614 3
WASHER SPRING 6MM 3 461F0600 7
BKT LICENSE PLT BLACK 4 23036-041-10 1 BLACK
BODY-COMP-TAIL LAMP 5 23027-1019 1
BODY-COMP-TAIL LAMP 5 23027-1019 AL
BULB,12V 32/3CP 6 92069-059 1
GASKET,TAIL LAMP LENS 7 23028-019 1
LENS,TAIL LAMP 8 23026-028 1
SCREW 9 220R0455 1
SCREW 9 220R0455 AL
SCREW PAN HEAD 4X50 10 220E0450 2
COLLAR,6.8X10X8.5 11 92027-129 2
DAMPER RUBBER 12 92075-076 2
WASHER 6.5X20X1.6T 13 92022-125 4
NUT 6MM 14 311B0600 2
BOLT-UPSET 15 112G0625 2
DAMPER RUBBER,RR FEND 16 92075-121 2
COLLAR,REAR FENDER 17 92027-162 2
DAMPER RUBBER,FENDER 18 92075-273 1
BOLT 6X22 19 112B0622 2
WASHER PLAIN 6MM 20 411B0600 5
