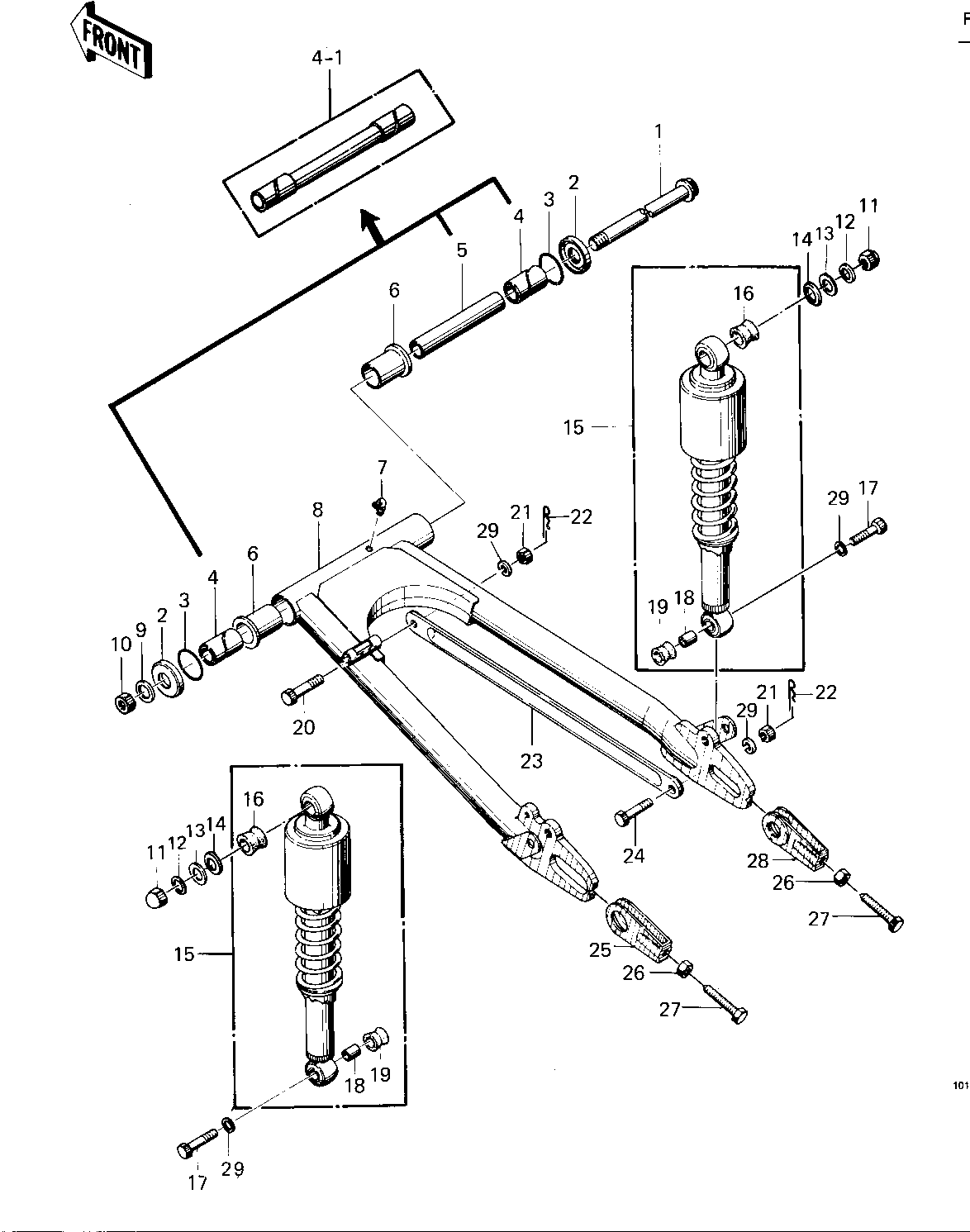

1976 KZ400-D3 - SWING ARM/SHOCK ABSORBERS ('76 -'77 KZ4

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,SWING ARM PIVOT 1 33032-046 1
CAP-SWING ARM 2 33035-004 2
"0" RING,30MM 3 671B2530 2
SLEEVE-SWING ARM,SHRT 4 33034-013 2 KZ400-D3
SLEEVE, SWING ARM 4-1 33034-028 1 KZ400-D4
COLLAR,SWING ARM 5 33036-006 1 KZ400-D3
BUSHING-SWING ARM 6 33033-009 2
GREASE NIPPLE 7 92005-002 1
ARM,SWING 8 33001-073 1
WASHER BRAKE PEDAL 9 92022-085 1
NUT-LOCK,14MM 10 92019-011 1
NUT SHOCK ABSORBER 11 92020-003 2
WASHER SPRING 10MM 12 461F1000 4
WASHER PLAIN 10MM 13 411B1000 2 O.D.=22
WASHER-PL-10.5X26X2.3 14 92022-044 2 KZ400-D3
WASHER-PLN,10X22X3.2 14 92022-176 2 KZ400-D4
SHOCK ABSBR RR 15 45014-109 2
BUSHING,SHCK ABS RUB 16 45017-015 2
BOLT HEX HEAD 10X35 17 113N1035 2
BUSHING,SHOCK ABSORB 18 45016-008 2
BUSHING, SHCK ABS RUB 19 45017-012 2
BOLT 20 92003-096 1
NUT,10MM 21 314B1000 2 KZ400-D3
NUT 10MM 21 315B1000 2 KZ400-D4
PIN,SNAP 22 554A0800 2
TORQUE LINK REAR BRK 23 43007-016 1
BOLT HEX HEAD 10MM 24 92003-034 1
ADJUSTER,CHAIN,L.H 25 33040-062 1 D=24.8
NUT 8MM 26 312B0800 2
BOLT,8X50 27 92001-1399 2
ADJUSTER-CHAIN 28 33040-043 1 D=17.8
WASHER SPRING 10MM 29 461F1000 2 KZ400-D4
