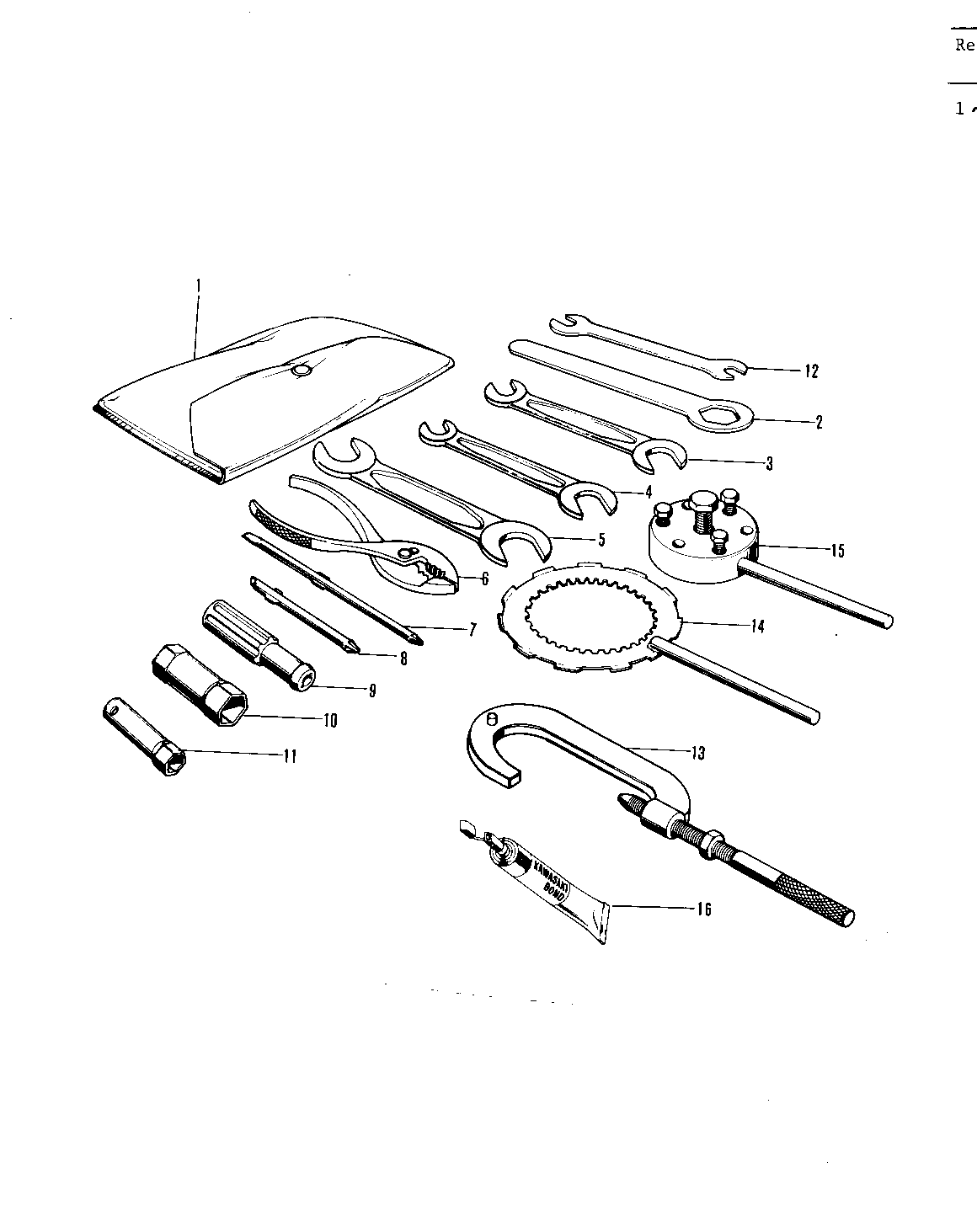

1970 Big Horn - OWNER TOOLS/SPECIAL SERVICE TOOLS

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
UNAVAILABLE IN PRICE BOOK 1~12 56007-020 1
BAG,TOOL 1 56008-008 1
92110-1150 (Canada) 2 92109-003 1
UNAVAILABLE IN PRICE BOOK 3 960B1013 1
*** N.L.A.*** (Canada) 4 960B1014 1
*** N.L.A.*** (Canada) 5 960B1719 1
92112-003 (Canada) 6 92112-001 1
TOOL-DRIVER 7 92107-1052 1
SCREW DRIVER #3 PHLIP 8 92107-005 1
92106-1001 (Canada) 9 92106-002 1
92110-012 (Canada) 10 92110-009 1
WRENCH BOX 10MM 11 92110-007 1
92108-011 (Canada) 12 92108-004 1
57001-1243 (Canada) 13 56019-040 1 OPTION
57001-1243 (Canada) 14 56019-067 1 OPTION
UNAVAILABLE IN PRICE BOOK 15 56019-068 1 OPTION
LIQUID GASKET 16 92104-002 1
