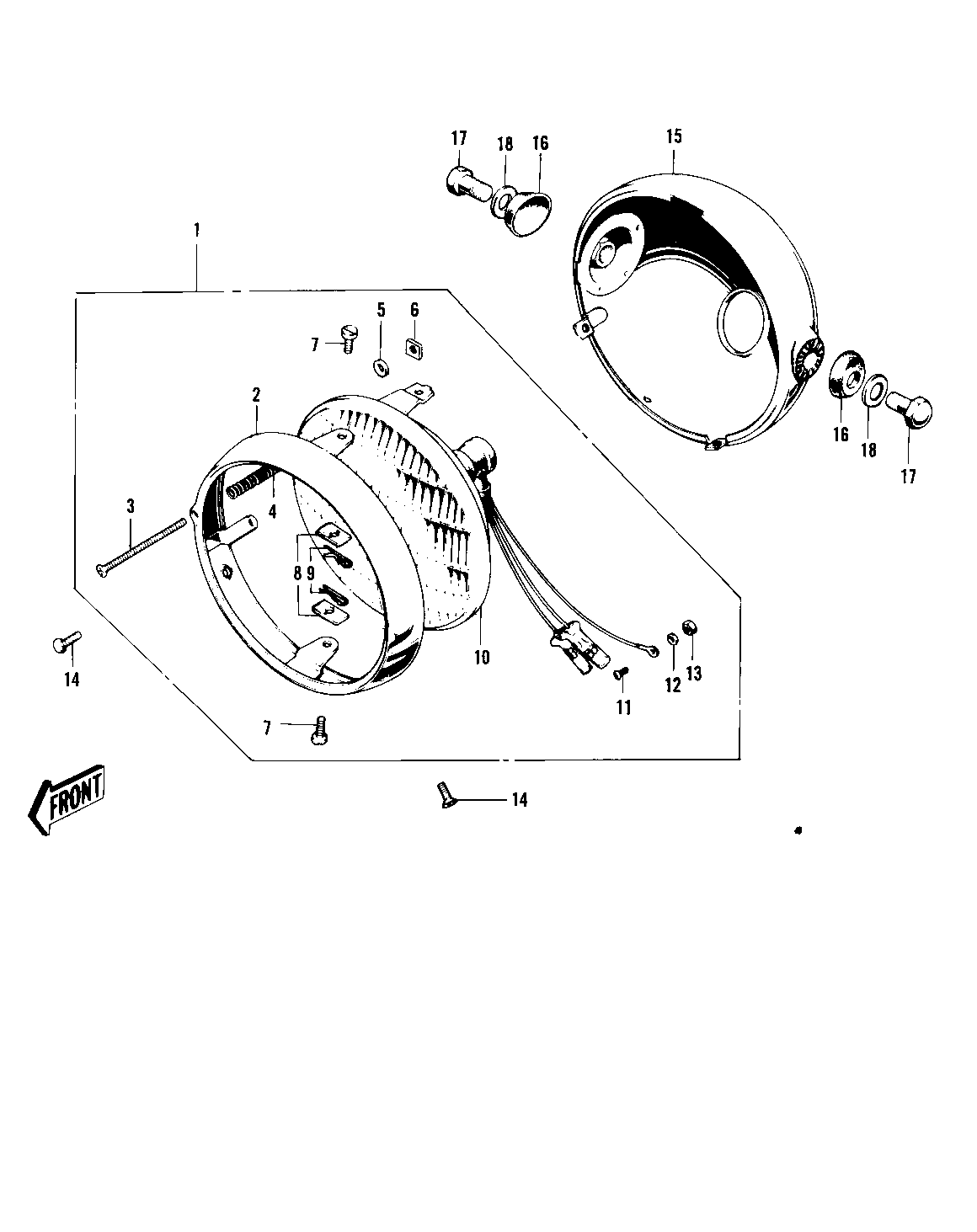

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP UNIT-HEAD 1 23003-008 1
RIM HEAD LAMP 2 23006-014 1
SCREW FORCUS ADJUST 3 23019-021 1
SPRING FOCUS ADJUST 4 23014-005 1
WASHER 5 23021-004 1
NUT 6 23020-016 1
SCREW LENS UNIT FITT 7 23019-018 2
NUT LENS UNIT FITTING 8 23020-009 2
PIN LENS UNIT FITTING 9 23022-001 2
SEALED BEAM UNIT 10 23007-022 1
SCREW CNTSNK HD 3X6 11 221B0306A 1
WASHER SPRING 3MM 12 461F0300 1
NUT-HEX 13 311B0300 1
SCREW OVL CNTSNK 5X10 14 222E0510 2
BODY-HEAD LAMP 15 23005-027 1 F5
BODY-HEAD LAMP,BLACK 15 23005-022-21 1 F5-A
DAMPER RUBBER 16 92075-058 2
BOLT,HEX HEAD,10X25 17 92007-045 2
BOLT,HEX HEAD,10X25 17 92007-045 2
WASHER PLAIN 10MM 18 411B1000 2
