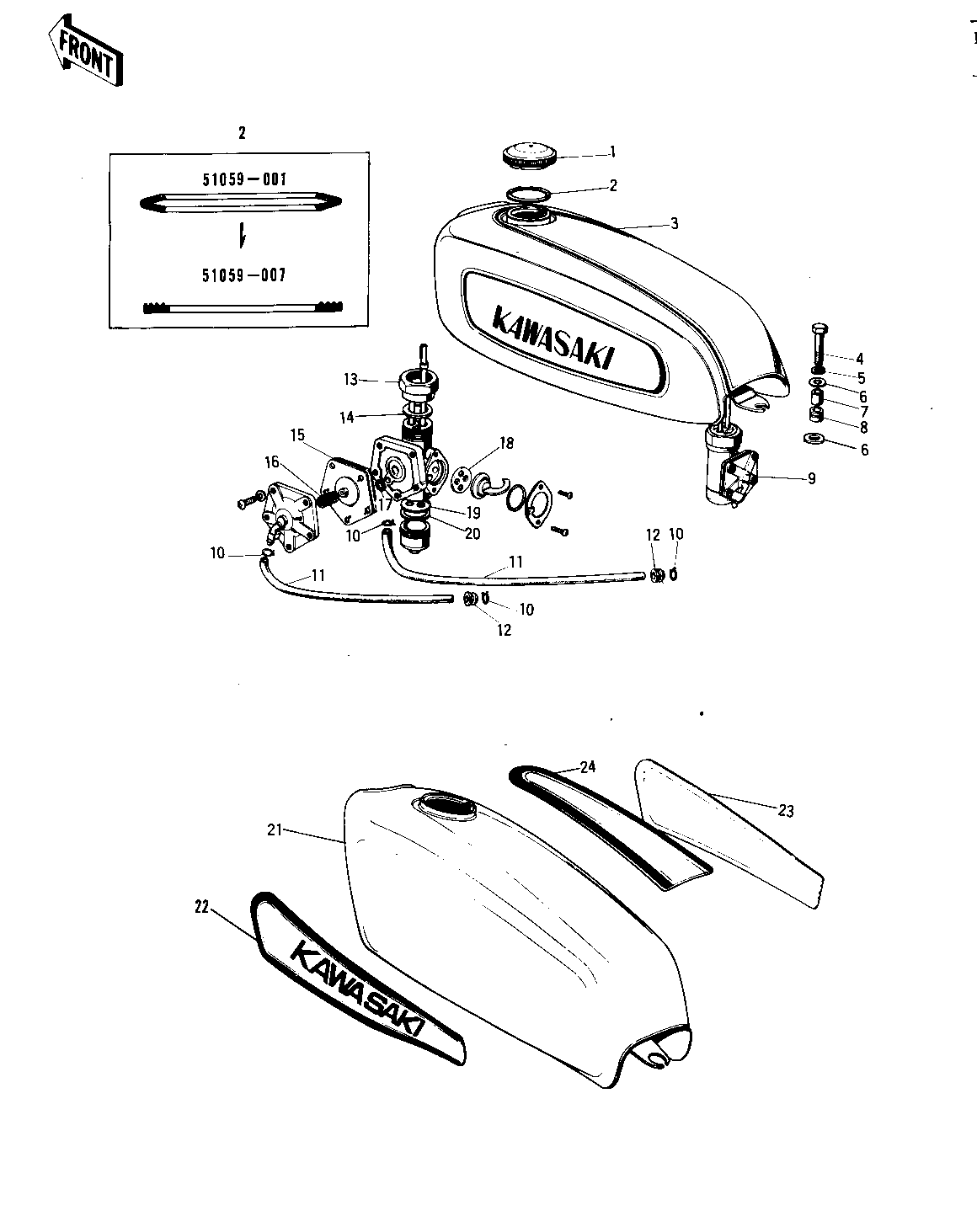

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP FUEL TANK 1 51049-008 1
GASKET-FUEL TANK CAP 2 51059-007 1
TANK, FUEL, RAWHIDE 3 51001-055-46 1
WASHER SPRING 8MM 5 461F0800 1
WASHER,8X26X2.3 6 92022-1564 2
SPACER FUEL TANK REAR 7 92027-034 1
DAMPER RUBB TANK REAR 8 92075-030 1
COCK ASSY,FUEL 9 51023-048 1
CLAMP FUEL PIPE 10 92037-010 4
PIPE-OIL 11 92059-072 2 L=345 M/M
GROMMET PIPE 12 92071-038 2
FUEL COCK JOINT NUT 13 51035-008 1
GASKET-FUEL COCK JONT 14 92065-066 1
DIAPHRAGM ASSY 15 51069-002 1
SPRING-DIAPHRAGM 16 92081-072 1
GASKET 17 92065-052 1
GASKET-FUEL COCK LEV 18 92065-065 1
STRAINER FUEL 19 51038-006 1
GASKET FUEL COCK CUP 20 51037-009 1
