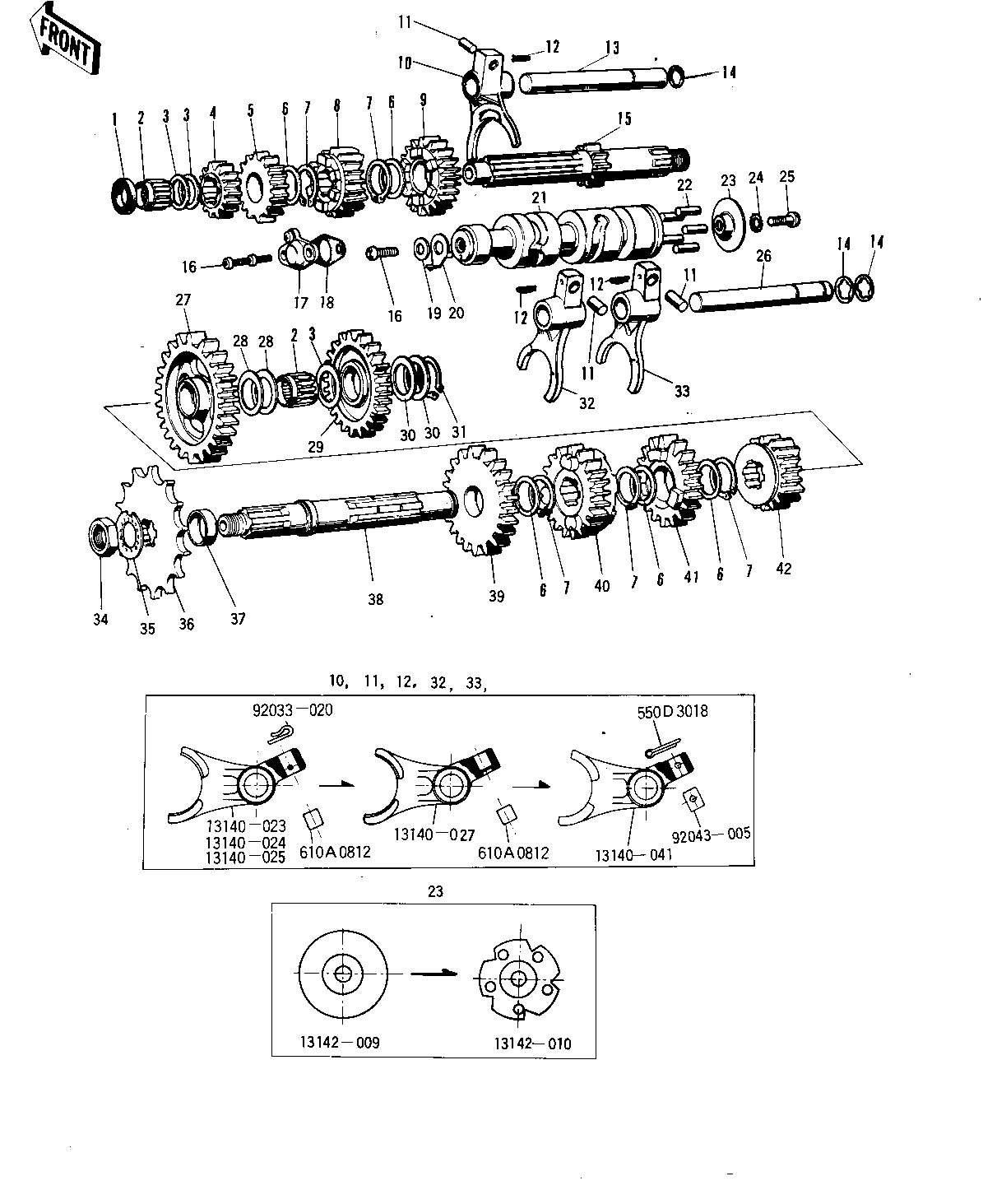

1970 Big Horn - TRANSMISSION/CHANGE DRUM
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
OIL SEAL-CLTH PSH ROD | 1 | 92050-034 | 1 | ||
BEARING-NEEDLE | 2 | 92046-025 | 2 | ||
WASHER THRUST | 3 | 92022-112 | 3 | ||
2ND GEAR-DRIVE SHAFT | 4 | 13130-021 | 1 | 14T | |
4TH GEAR-DRIVE SHAFT | 5 | 13134-005 | 1 | 20T | |
WASHER 25MM | 6 | 92022-076 | 5 | ||
CIRCLIP | 7 | 92033-026 | 5 | ||
3RD GEAR-DRIVE SHAFT | 8 | 13132-020 | 1 | 18T | |
TOP GEAR,DRIVE SHAFT | 9 | 13136-047 | 1 | 28T | |
FORK-SELECTOR | 10 | 13140-052 | 1 | ||
FORK-SELECTOR | 10 | 13140-052 | 1 | E/NO. 07369 | |
PIN-DOWEL,8X12 | 11 | 610A0812 | 3 | ||
PIN SELECT FORK GUIDE | 11 | 92043-005 | 3 | E/NO. 07369 | |
CIRCLIP | 12 | 92033-020 | 3 | NOT REQUIRED | |
PIN COTTER 3.0X18 | 12 | 550D3018 | 3 | E/NO. 07369 | |
ROD-SHIFT | 13 | 13209-003 | 1 | L=113 M/M | |
CIRCLIP 10MM | 14 | 482J0100 | 3 | ||
SHAFT-DRIVE | 15 | 13127-025 | 1 | 11T | |
SCREW PAN HEAD 6X16 | 16 | 220B0616 | 3 | ||
13151-1001 (Canada) | 17 | 13151-004 | 1 | ||
GASKET NEUTRAL SWITCH | 18 | 13146-002 | 1 | ||
WASHER PLAIN 6MM | 19 | 410B0600 | 1 | ||
ROTOR,NEUTRAL INDICTR | 20 | 21007-1003 | 1 | ||
DRUM ASSY-GEAR CHANGE | 21-25 | 13239-006 | 1 | ||
DRUM ASSY-GEAR CHANGE | 21 | 13239-006 | 1 | ||
PIN GEAR CHANGE DRUM | 22 | 92042-014 | 5 | L=15.8 M/M | |
PLATE-CHANGE DRUM PIN | 23 | 13142-009 | 1 | ||
WASHER LOCK 6MM | 24 | 464H0600 | 1 | ||
SCREW PAN HEAD 6X12 | 25 | 220B0612 | 1 | USE 13142-009 | |
ROD-SHIFT | 26 | 13209-010 | 1 | L=119 M/M | |
LOW GEAR-OUTPUT SHAFT | 27 | 13129-042 | 1 | 27T | |
WASHER THRUST | 28 | 92022-113 | 2 | ||
IDLE GEAR-KICKSTARTER | 29 | 13073-005 | 1 | 27T | |
WASHER THRUST | 30 | 92022-112 | 2 | 1.0T | |
SHIM-KICK SHAFT | 30 | 92022-144 | AR | 0.5T | |
CIRCLIP,19MM | 31 | 480J1900 | 1 | ||
FORK-SELECTOR | 32 | 13140-052 | 1 | ||
FORK-SELECTOR | 33 | 13140-052 | (1 | ||
NUT 18MM | 34 | 92015-019 | 1 | ||
WASHER,LOCK,18MM | 35 | 92024-067 | 1 | ||
ENGINE SPROCKET 14T | 36 | 13144-017 | 1 | STD | |
COLLAR-ENG SPROKET | 37 | 92027-163 | 1 | ||
SHAFT-OUTPUT | 38 | 13128-027 | 1 | ||
2ND GEAR-OUTPUT SHAFT | 39 | 13131-024 | 1 | 24T | |
4TH GEAR-OUTPUT SHAFT | 40 | 13135-009 | 1 | 18T | |
3RD GEAR-OUTPUT SHAFT | 41 | 13133-019 | 1 | 21T | |
TOP GEAR-OUTPUT SHAFT | 42 | 13137-013 | 1 | 20T |
