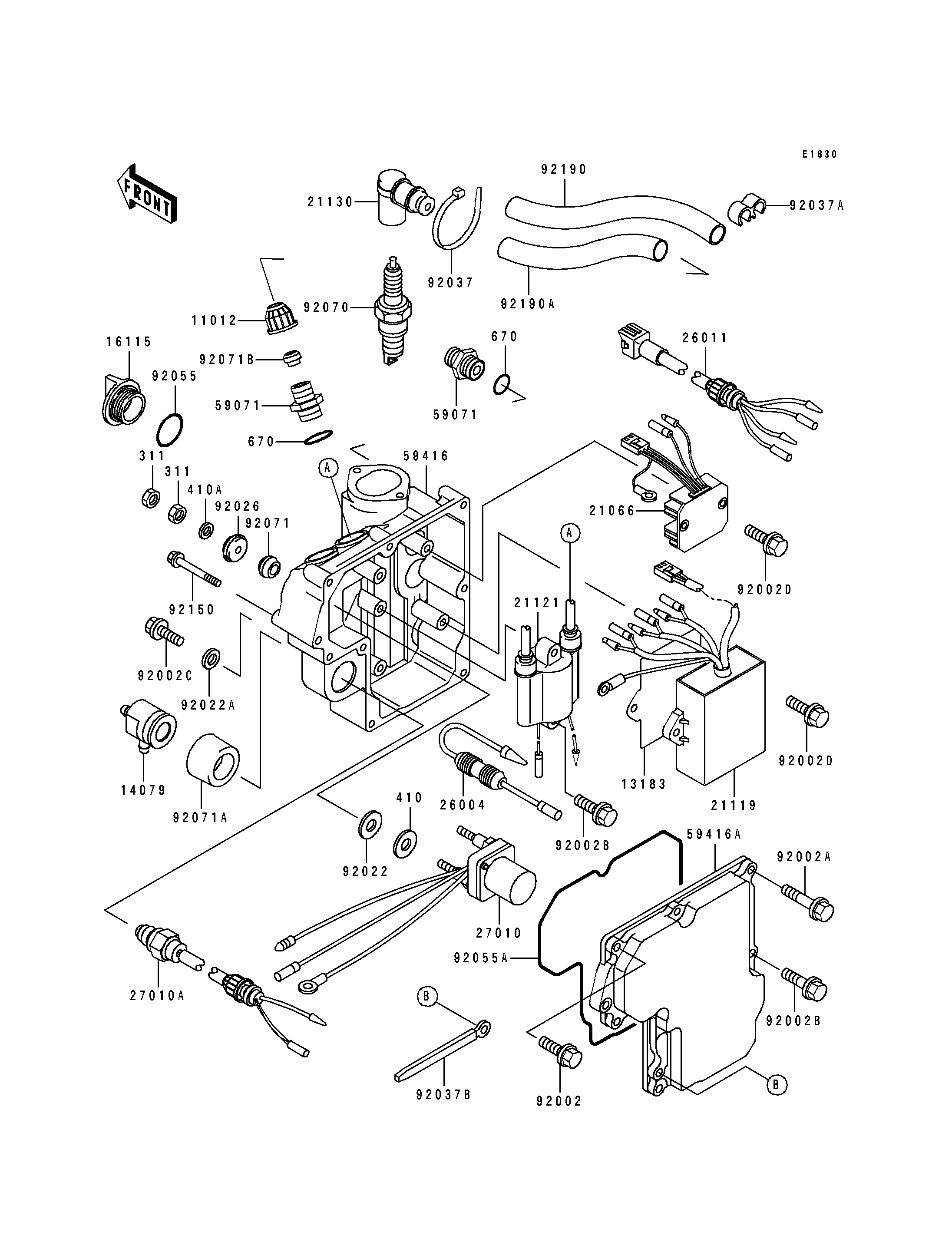

1993 750 SX - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-3005 2
PLATE 13183 13183-3811 1
HOLDER-ASSY 14079 14079-3707 1
CAP-OIL FILLER 16115 16115-1009 1
REGULATOR-VOLTAGE 21066 21066-3709 1
IGNITER 21119 21119-3733 1
COIL-IGNITION 21121 21121-3705 1
CAP-SPARK PLUG 21130 21130-3706 2
FUSE-ASSY 26004 26004-3712 1
WIRE-LEAD 26011 26011-3792 1
SWITCH,STARTER RELAY 27010 27010-3724 1
SWITCH,WATER SENSOR 27010A 27010-3725 1
JOINT 59071 59071-3001 4
CASE-ELECTRIC 59416 59416-3725 1
CASE-ELECTRIC 59416A 59416-3726 1
BOLT,6X25 92002 92002-3714 6
BOLT,6X40 92002A 92002-3716 1
BOLT,6X30 92002B 92002-3726 3
BOLT,6X16 92002C 92002-3728 1
BOLT,6X20 92002D 92002-3755 4
WASHER 92022 92022-3035 2
WASHER 92022A 92022-567 1
SPACER 92026 92026-3703 2
CLAMP 92037 92037-1173 2
CLAMP,HOSE 92037A 92037-1603 1
CLAMP,L=100 92037B 92037-3736 3
RING-O,31.5X2.6 92055 92055-049 1
RING-O,ELECTRIC CASE 92055A 92055-3731 1
PLUG-SPARK,BR8ES(NGK) 92070 92070-2078 2
GROMMET 92071 92071-3004 2
GROMMET 92071A 92071-3782 1
GROMMET 92071B 92071-527 2
BOLT,6X85 92150 92150-3763 3
TUBE,HIGH TENSION,L=330 92190 92190-3707 1
TUBE 92190A 92190-3886 1
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN-SMALL,10MM 410 410B1000 2
WASHER-PLAIN-SMALL,6MM 410A 410S0600 2
O RING,16MM 670 670B2016 4
