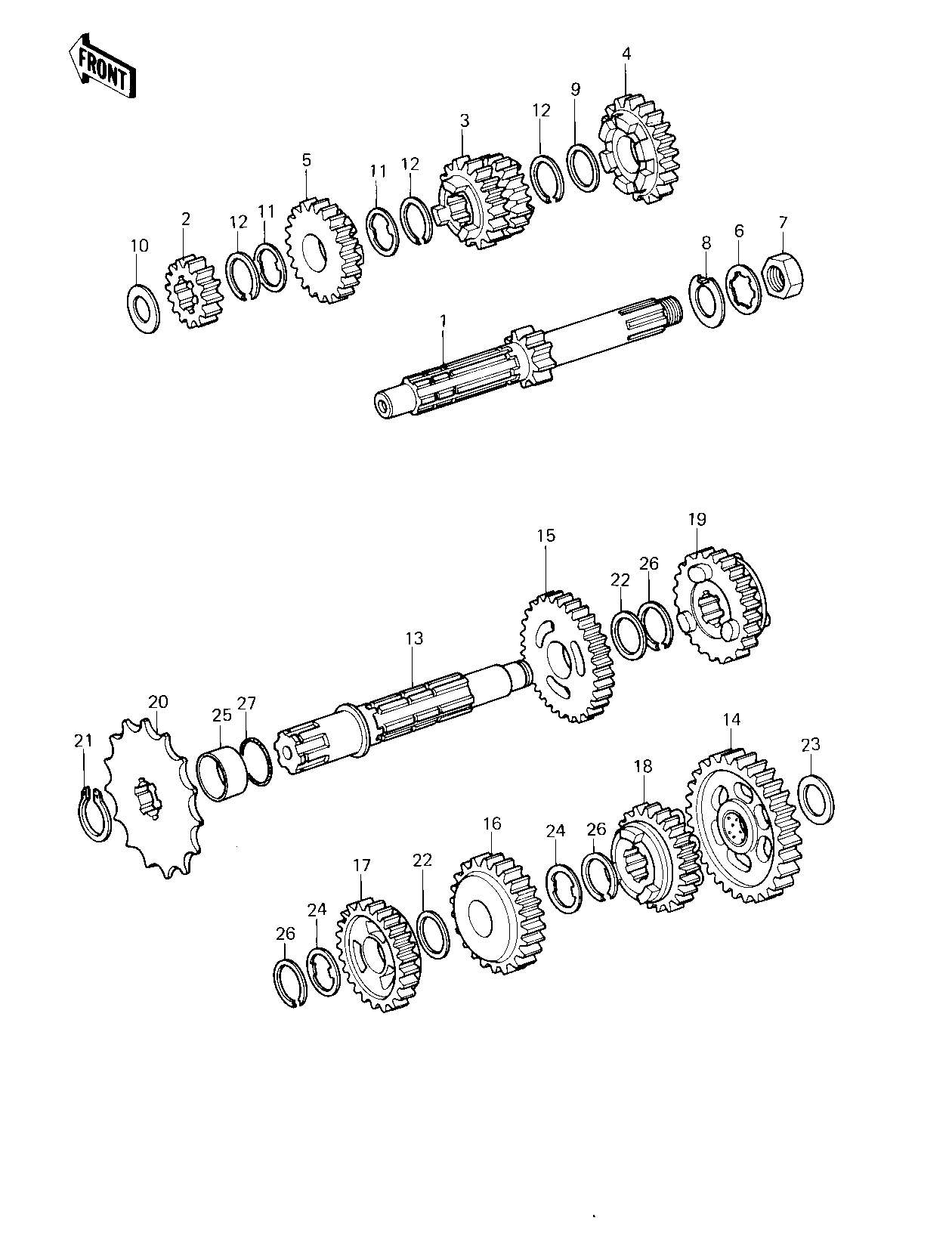

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,DRIVE 1 13127-1026 1
2ND GEAR,DRIVE SHAFT 2 13129-1181 1
3RD&4TH GEAR,DRIVE S 3 13129-1182 1
5TH GEAR,DRIVE SHAFT 4 13129-1183 1
TOP GEAR,DRIVE SHAFT 5 13129-1184 1
WASHER, TOOTHED, 16MM 6 463H1600 1
NUT 16MM 7 92016-036 1
WASHER,16.8X32X1.6 8 92022-1277 1
WASHER-PLAIN 9 92022-198 1
WASHER,PLAIN 10 92022-268 1
WASHER-LOCK 11 92024-039 2
CIRCLIP,25MM 12 92033-025 3
SHAFT,OUTPUT 13 13128-1026 1
LOW GEAR,OUTPUT SHAFT 14 13129-1185 1
2ND GEAR,OUTPUT SHAFT 15 13129-1186 1
3RD GEAR,OUTPUT SHAFT 16 13129-1187 1
GEAR-TRANSMISSION SP 17 13129-1324 1
5TH GEAR,OUTPUT SHAFT 18 13129-1189 1
TOP GEAR,OUTPUT SHAFT 19 13129-1190 1
SPROCKET-OUTPUT,12T 20 13144-1049 1
SPROCKET-OUTPUT 13T 20 13144-1050 (1
ENGINE SPROCKET,11T 20 13144-1036 (1
CIRCLIP, 20MM 21 480J2000 1
WASHER-PLAIN 22 92022-198 2
WASHER,PLAIN 23 92022-268 1
WASHER-LOCK 24 92024-039 2
COLLAR,ENGINE SPROCK 25 92027-1244 1
CIRCLIP,25MM 26 92033-025 3
"0" RING 27 92055-022 1
