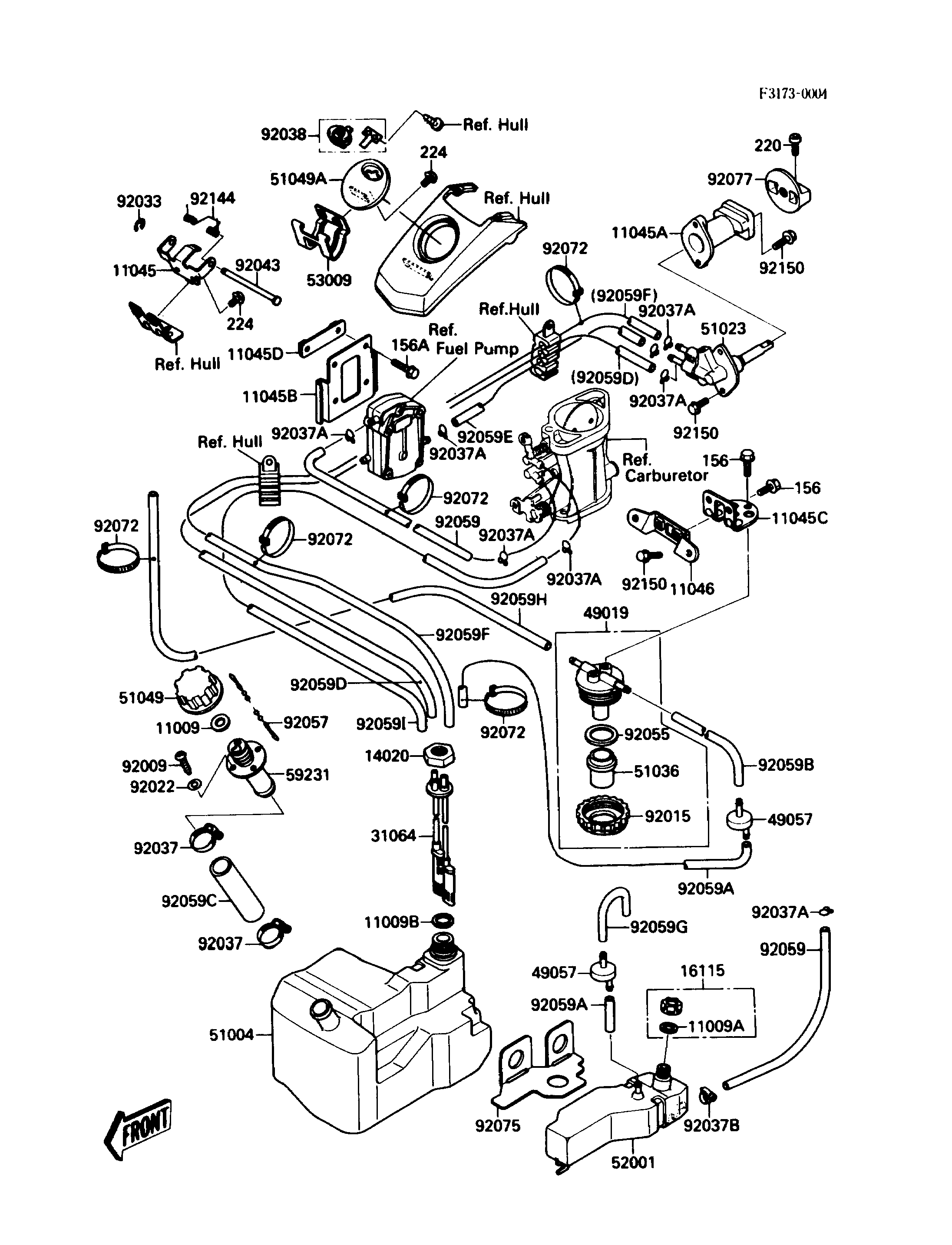

1988 650 SX - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TANK CAP 11009 11009-3020 1
GASKET,OIL FILLER CAP 11009A 11009-3736 1
GASKET 11009B 92065-504 1
BRACKET,HINGE 11045 11045-3723 1
BRACKET 11045A 11045-3726 1
BRACKET,FUEL PUMP 11045B 11045-3734 1
BRACKET,STRAINER 11045C 11045-3735 1
BRACKET 11045D 11045-3765 1
BRACKET,STRAINER 11046 11046-3706 1
RETAINER 14020 23072-501 1
CAP-OIL FILLER 16115 16115-3704 1
PIPE-COMP,FUEL 31064 31064-3708 1
FILTER-FUEL 49019 49019-3706 1
VALVE-RELIEF 49057 49057-3001 2
TANK-FUEL 51004 51004-3705 1
TAP-ASSY,FUEL 51023 51023-3706 1
CUP,FUEL FILTER 51036 51036-3702 1
CAP-TANK 51049 51049-3001 1
CAP-TANK,JET WHITE 51049A 51049-3711-8C 1
TANK-OIL 52001 52001-3705 1
HINGE 53009 53009-3706 1
FILLER,FUEL TANK 59231 59231-3001 1
SCREW 92009 92011-562 4
NUT,RING 92015 92015-3013 1
WASHER 92022 92022-563 4
RING-SNAP,2MM 92033 92033-3711 1
CLAMP 92037 92037-3009 2
CLAMP,11MM 92037A 92037-3723 8
CLAMP 92037B 92037-3726 1
KEY 92038 92038-3701 1
PIN 92043 92043-3713 1
RING-O,FILTER CUP 92055 92055-3006 1
CHAIN,COVER,L=100 92057 92057-3704 1
TUBE,FUEL,6.5X11.5X310 92059 92059-1252 2
TUBE,5.8X12.2X55 92059A 92059-3026 2
TUBE,5.8X10.8X200 92059B 92059-3721 1
TUBE,45X53X125 92059C 92059-3781 1
TUBE,ON,5.8X10.8X1050 92059D 92059-3789 1
TUBE,5.8X10.8X380 92059E 92059-3790 1
TUBE,RES,5.8X10.8X1050 92059F 92059-3795 1
TUBE 92059G 92059-3802 1
TUBE,5.8X10.8X1100 92059H 92059-3810 1
TUBE,RETURN,7X12X800 92059I 92059-3814 1
BAND,L=123 92072 92072-030 5
DAMPER 92075 92075-3740 1
KNOB 92077 92077-3709 1
SPRING 92144 92144-3710 1
BOLT,5X14 92150 92150-3702 6
BOLT-WP,6X12 156 156R0612 4
BOLT-WP,6X16 156A 156R0616 2
SCREW-PAN-CROS,4X8 220 220R0408 1
SCREW-PAN-WP-CROS,5X10 224 224R0510 4
