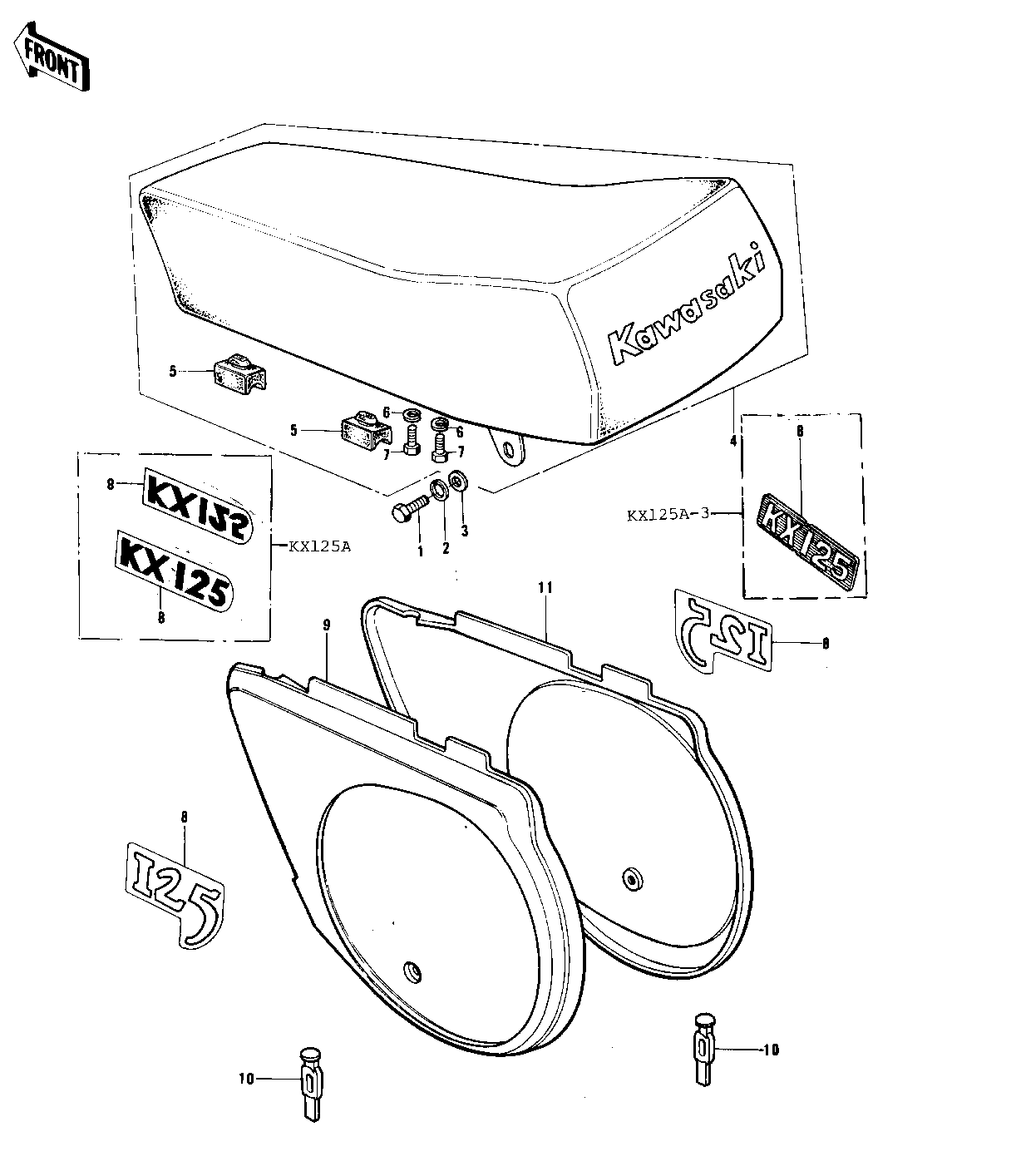

1975 KX125-A - SEAT/SIDE COVERS ('74-'76 KX125/A/A3)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT HEX HEAD 8X16 1 110N0816
WASHER SPRING 8MM 2 461F0800
WASHER,PLAIN,8MM 3 411D0800
SEAT 4 53001-101
DAMPER RUBBER,SEAT 5 92075-216
WASHER SPRING 6MM 6 461F0600
BOLT-UPSET,6X12 7 112G0612
EMBLEM,SIDE COVER 8 56018-172 KX125
EMBLEM SIDE COVER 8 56018-206 KX125A
EMBLEM,SIDE COVER 8 56018-227 KX125A-3
COVER,L.H SIDE,BLACK 9 36001-047-21 FLAT BLACK
BAND,SIDE COVER 10 92072-069
COVER,RH SIDE,BLACK 11 36007-041-21 FLAT BLACK
