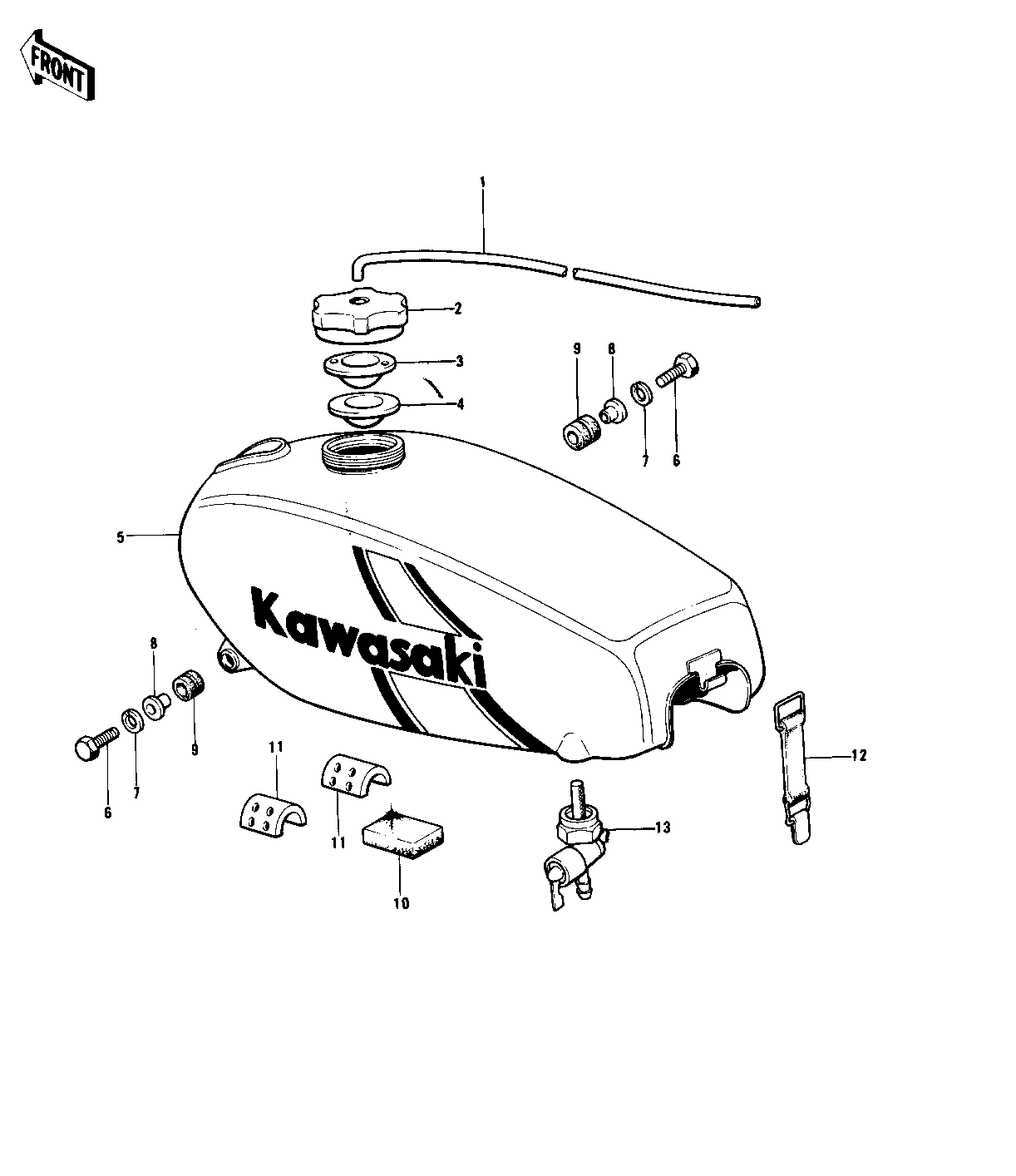

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TUBE-VINYL,5X280 1 700Q05280
CAP,FUEL TANK 2 51049-1002
WASHER,FUEL TANK CAP 3 51058-004
GASKET,FUEL TANK CAP 4 51059-012
TANK-FUEL,L.GREEN 5 51001-098-2G
TANK-FUEL,C.LIME 5 51001-098-3X KX125A-3
BOLT-UPSET 6 112G0630
WASHER SPRING 6MM 7 461F0600
COLLAR,FUEL TANK 8 92027-216
DAMPER RUBBER 9 92075-197
MAT FUEL TANK 10 51067-002 NOT REQUIRED FOR 92075-215
DAMPER RUBBER 11 92075-198
DAMPER RUBBER,FL TNK 11 92075-215 KX125A-3
BAND,FUEL TANK 12 92072-076
FUEL COCK ASSY 13 51023-033
