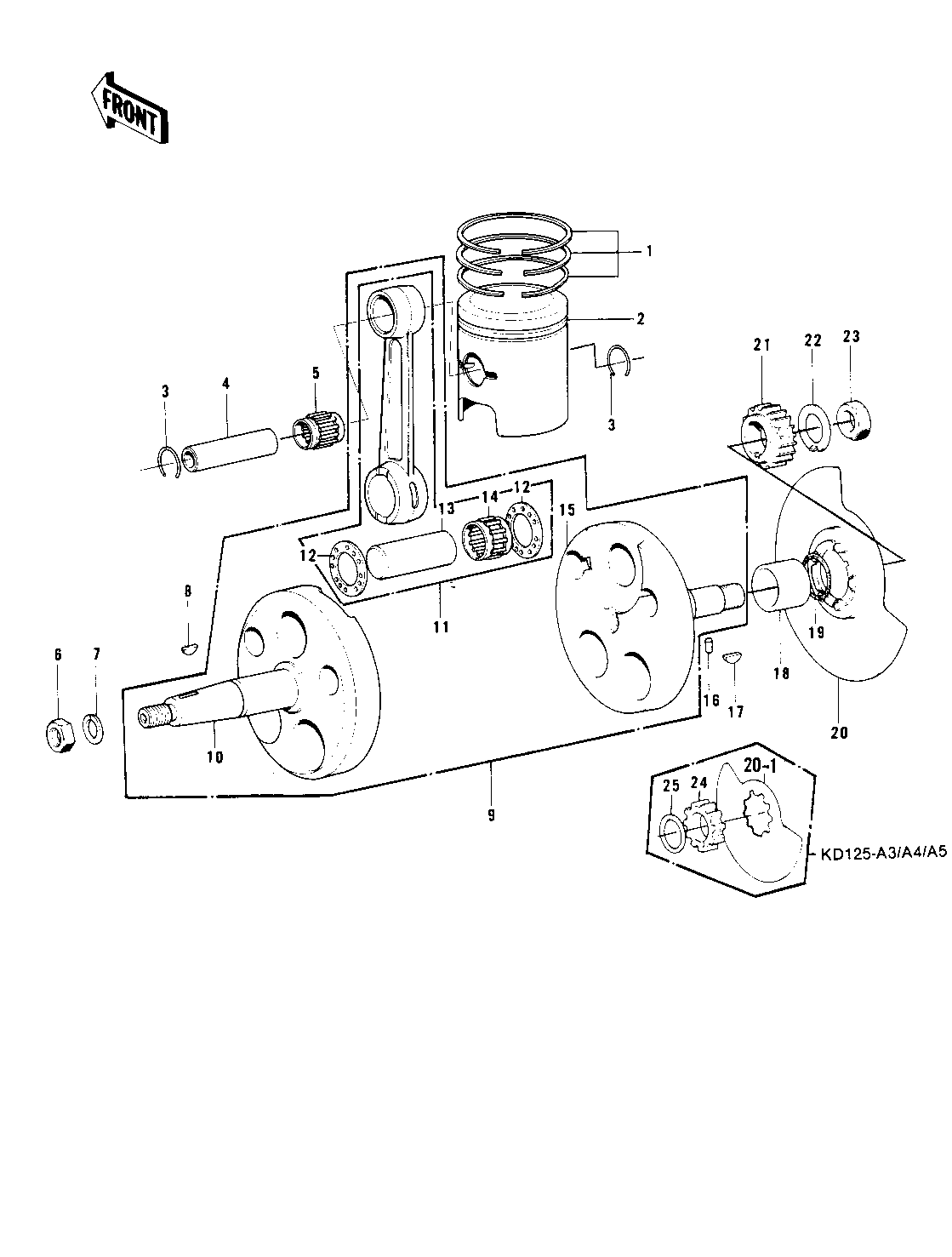

1975 KD125 - CRANKSHAFT/PISTON/ROTARY VALVE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
RING SET,STD 1 13008-050
RING SET,0.020" O.S 1 13025-054
RING SET,0.040" 0.S 1 13024-055
PISTON,STD 2 13001-072
PISTON,0.020" O.S 2 13029-068
PISTON,0.040" O.S 2 13027-062
CIRCLIP PISTON PIN 3 92036-003
PIN-PISTON 4 13002-1002 KD125/A2/A3
PIN-PISTON 4 13002-1002 KD125-A4/A5
BRG,N,UR14/20AP-1 5 13033-035
NUT,10MM 6 314B1000
WASHER SPRING 10MM 7 461F1000
WOODRUFF KEY 8 510A3200
CRANK AND CONROD ASSY 9 13031-1003
CRANKSHAFT,L.H 10 13037-059
CONNECTING ROD SET 11 13044-019
WASHER SIDE 12 92025-005
CRANK PIN 13 13035-033
BRG,NEEDLE,KT202715EG 14 13034-1001
CRANKSHAFT,R.H. 15 13037-1084
PIN DOWEL 4X10 16 610A0410
WOODRUFF KEY PRY PINI 17 92038-003
COLLAR,R.H CRANKSHAFT 18 92027-220 KD125/A2
COLLAR,ENG SPROCKET 18 92027-1077 KD125-A4/A5
"0" RING,16MM 19 670B2016
VALVE,ROTARY DISC 20 12001-025 KD125/A2
VALVE,ROTARY DISC 20-1 12002-029 KD125-A3/A4/A5
GEAR,PRIMARY 22T 21 13097-1040
WASHER LOCK 12MM 22 92024-003
NUT 12MM 23 92015-006
COLLAR,ROTARY VALVE 24 92027-1245 KD125-A3/A4
COLLAR,ROTRY DSC VALV 24 92027-1170 KD125-A5
WASHER,BALANCER 25 92026-131 KD125-A3/A4
